Vertical Xcelerator IP

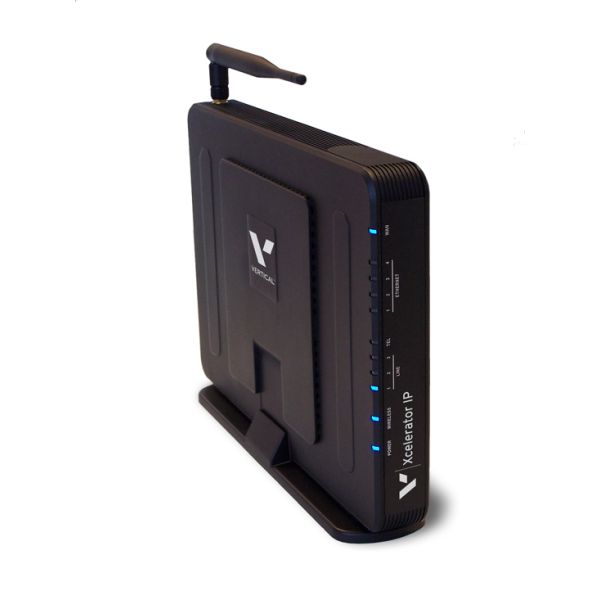

Xcelerator IP from Vertical is a low cost, ready to go, out of the box, PSTN/VoIP business phone system with an integrated data networking solution supporting 3 PSTN land lines and up to 8 SIP based "trunks".

Xcelerator IP is a complete office solution.
It is a wireless network and telephone solution for the small office or home office which supports up to 24 IP telephones plus additional office devices. About the size of a text book it provides all the functions required by the small and home office. These include;

• Businesses phone system
• Wireless access point (WAP)
• Data networking (router)
• Internet access
• Firewall

Wireless access point / Data networking / Internal firewall / Internet access

Xcelerator IP provides the complete range of networking capability required by a small office. It allows a small office to easily and quickly;

• Network multiple computers together
• Connect multiple computers to the internet
• Connect the office phone system to the public telephone network
• Provide an access point for wireless PC’s or approved Wi-Fi phones
• Protect the data network and phone system against attack

Key Features
Remote administration
The Xcelerator IP gateway can be configured and administered remotely via a web-based administrative interface, which is supported by the built in Web Server.

Connection to traditional and IP trunks
Xcelerator connects to the PSTN and to an ITSP with an IP gateway. It can connect to eight (8) VoIP (SIP-based) trunk connections for IP telephony via the WAN port (broadband connection) and three (3) traditional PSTN lines for conventional telephony.

Mobility
The wireless access point links PC’s, lap tops, and approved Wi-Fi phones to the system to provide mobility in the workplace.

Security
A comprehensive package of security features delivers data and business security. These include;

• Password protected system management
• User authentication for PPP (PAP/CHAP/MSCHAP)
• Firewall
• Packet Filtering
• Access Control List
• Wireless Security:

  • WEP (64, 128-bit) encryption
  • 802.1x and WPA/WAP2 authentication
  • MAC Address-based access control
  • WDS support

Full specification list

• Automatic failover to PSTN
• Adaptive Jitter Buffer
• Automatic fall-back to PSTN line calling if power fails
• Auto Attendant and voicemail (4 hours, G.729a)
• Automatic registration with IP2007 endpoint (Phone handsets
• Call Operator
• Call Progress Tone Generation/Detection
• Call Routing
• Caller ID Name & Number
• Caller ID to Extension
• Comfort Noise Generation (CNG)
• Data Protocols: DHCP, TFPT, RTP, SIP
• Daylight Saving Time
• Default Set
• Direct Inward System Access (DISA) via Auto Attendant
• DTMF Relay (RFC2833)
• Extension Password
• Fax/Modem 2100 Hz Tone Detection
• Echo Cancellation: G.168 for each voice line
• Flash — Analog Port (SLT) Flash Recognition
• G.168 Line Echo Cancellation
• Integrated voicemail
• Line Group Assignment
• Multi-Line Appearance
• Music On Hold
• NAT and Routing Functions
• Night Switching
• 999 on CO Trunks
• Numbering Plan
• System Data & Time
• System Speed Dial Capacity: 100 entries
• Transfer
• Trunk Group
• Voice Activity Detection (VAD)

Wireless access point / Data networking / Internal firewall / Internet access
The specification and feature summary of the Xcelerator IP Gateway includes;

• LAN Interface: 4 Ethernet 10/100BaseT (via RJ45 connectors)
• Supports 8 VoIP SIP trunks and 3 FXO Standard Analog trunks via RJ11C (Loop Start)
• SIP proxy
• VoIP: SIP v2 (RFC3261), G.711, G.729A, and G.723.1 (optional)
• IP Address Assign (DHCP)
• IP QoS (802.1p, VLAN, Priority Queue based on ToS tag)
• WAN Data Port (10/100BaseT); Access via External Cable/ADSL for Broadband Data
• TCP/IP Protocols
• Firewall functions:
  • IP/Port/Interface Filtering Rules;
  • Port Triggering; Port Forwarding;
  • DMZ Host;
  • MAC Layer Filtering;
  • NAT with STUN
• Power over Ethernet (PoE) 802.3af
• Supports up to 24 SIP Voice Terminals, both wired (expand with PoE switch) and wireless via Ethernet or built-in 802.11g Wi-Fi Access Point
• 1 FXS (RJ11) for Analog device
• Remote Administration via 802.11G Wi-Fi or Ethernet

**Although this is classed as a "plug and play system", it is advised that some basic networking knowledge is required to setup and configure the system properly**
