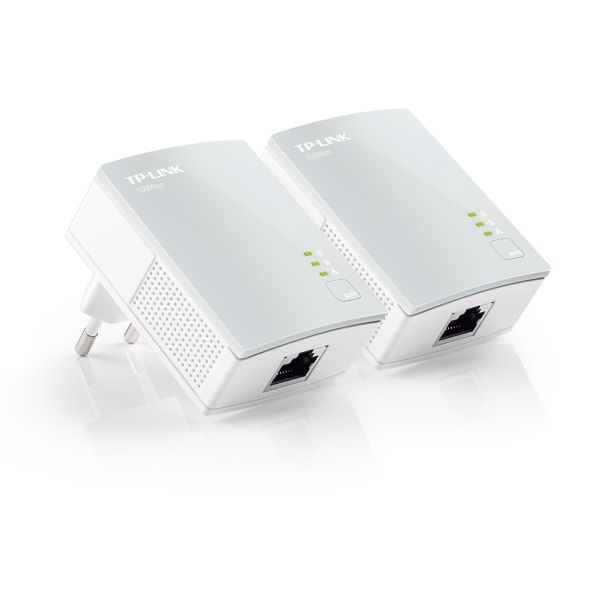

Using advanced Home Plug AV technology, TL-PA4010KIT provides users with stable, high-speed data transfer rates of up to 500Mbps on a line length of up to 300 meters. With speed of up to 500Mbps, TL-PA4010KIT enables heavy-bandwidth applications like HD streaming, on-line gaming and large file downloading, turning your home into a robust and high-speed networking.
With its new ultra-compact housing design, TL-PA4010KIT is much smaller than TP-LINK’s legacy mini 500Mbps powerline products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.
Simply by pushing the Pair button on the adapters, users can set up a hassle-free Powerline network within minutes, complete with 128-bit AES encryption for network security and data protection. It's that simple!
Plug the adapter into the power outlet
Connect the device via the network cable to the adapter
Press the pair buttons—and you're done!
Hardware Features
Standards and Protocols - HomePlug AV, IEEE802.3, IEEE802.3u
Interface - 1*10/100Mbps Ethernet Port
Plug Type - UK
Button - Pair Button
Dimensions (W X D X H) - 2.6 x 2.0 x 1.1 in.(65×52×28.5mm)
LED Indicator - PWR, PLC, ETH
Power Consumption -
Maximum: 4.60W (220V/50Hz)
Typical: 4.26W (220V/50Hz)
Standby: 0.88W (220V/50Hz)
Range - 300M in house
Software Features
Modulation Technology - OFDM
Encryption - 128-bit AES Encryption
Other
Certification - CE, FCC, RoHS
Package Contents -
Powerline Ethernet Adapter
Ethernet cable (RJ45)
Resource CD
Quick Installation Guide
System Requirements - Windows 8/7/Vista/XP/2000, Mac, Linux
All information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
