Product Specifications of the TP Link 300Mbps Wireless N USB VDSL/ADSL Modem Router (TD-W9970) - New

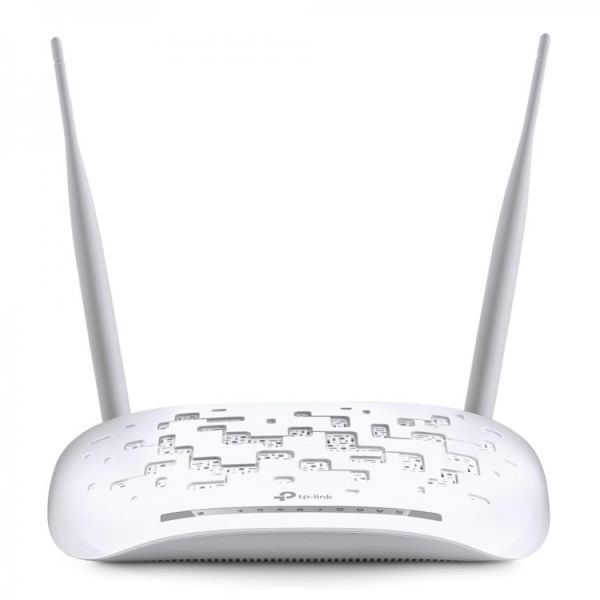

TP Link 300Mbps Wireless N USB VDSL/ADSL Modem Router (TD-W9970)
TP Links 300Mbps Wireless N USB VDSL Modem Router TD-W9970 is an incredibly robust all-in-one device that allows users to access a high speed internet connection via VDSL/ADSL, 3G/4G Modem or Ethernet WAN (EWAN) using its interchangeable LAN/WAN port and share it wirelessly at 300Mbps wireless 802.11n speeds.
Its multifunctional USB Port allows users to to share Printers, Files and Media across the local network or share Files and Media via the internet. Moreover it supports the latest internet protocol IPv6 to future proof your network.
USB Port - Easily Share Printers, Files and Media
Using the TP-Link TD-W9970's multi-functional USB 2.0 Port, users can share Printers, Files and Media either throughout the network at home with several different computers or even away using the devices FTP server functions, meaning users dont have to part with their files.
Interchangeable LAN/WAN Port - Compatible with Fibre/Cable Services
The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allows users to have the flexibility of different internet connections, featuring an interchangeable LAN/WAN Port, its compatible with Fibre/Cable service. This unique feature make sit easier when users need to change to Fibre or Cable Services.
High Broadband Speeds
The TP-LINK TD-W9970 Router supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming.
Virtually Impregnable-10 VPN IPsec Tunnels
The ability to support up to 10 IPsec VPN tunnels simultaneously gives the TP-LINK TD-W9970 Router users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks.
Features
- All in One - VDSL2/ADSL2+ Modem, NAT Router and Wireless Access Point in One Device, Providing a One Stop Networking Solution
- Wireless N Speed up to 300Mbps Makes it Ideal for Heavy Bandwidth Consuming or Interruption Sensitive Applications like Online Gaming, Internet Calls and Even the HD Video Streaming
- Easily Set Up an Encrypted Security Connection at a Push of the WPS Button
- Wi-Fi On/Off Switch Lets Users Simply Turn the Wireless Radio On or Off
- Supports up to 10 IPSEC VPN Tunnels Simultaneously
- IP Based Bandwidth Control Allows Administrators to Determine how much Bandwidth is allocated to Each PC
- Parental Control Allows Parents or Administrators to Establish Restricted Access Polices for Children or Staff
- Supports the Latest Internet Protocol IPv6 to Future Proof Your Network
- Guest Network Access Provides Secure Wi-Fi Access for Guests Sharing a Home or Office Network
- Versatile Connectivity - VDSL/ADSL. Ethernet WAN or UMTS/LTE Modem for Multiple Internet Connection Types
- USB Port for Storage Sharing, Printer Sharing, FTP Server, Media Server and& UMTS/LTE (3G/4G) Modem Sharing
Hardware Features:
Interface
- 4 10/100Mbps RJ45 Ports
- 1 x RJ11 Port
- 1 x USB 2.0 Port
Button
- 1 x Power On/Off Button
- 1 x WPS/RESET Button
- 1 x Wi-Fi On/Off Switch
External Power Supply
- 12VDC/1A
IEEE Standards
- IEEE 802.3, 802.3u
VDSL2 Standards
- ITU-T G.993.2
- ITU-T G.993.5 (G.Vector)
- ITU-T G.998.4 (G.IN)
ADSL Standards
- Full-Rate ANSI T1.413 Issue 2
- ITU-T G.992.1(G.DMT)
- ITU-T G.994.1 (G.hs)
- ITU-T G.995.1
ADSL2 Standards
- ITU-T G.992.3 (G.dmt.bis)
ADSL2+ Standards
- ITU-T G.992.5
Antenna Type
- Omni Directional, Fixed
Wireless Features:
Wireless Standards
- IEEE 802.11b, 802.11g, 802.11n
Frequency
- 2.400-2.4835GHz
Transmit Power
- <20dBm(EIRP)
Wireless Security
- Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK
- Wireless MAC Filtering
Software Features:
Quality of Service
- WMM, Bandwidth Control (IP QoS)
Security
- NAT Firewall,
- SPI Firewall,
- MAC / IP / URL Filtering
IPv6
- IPv6 and IPv4 Dual Stack
- Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4
- Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6
Management
- Web Based Configuration(HTTP),
- Remote Ranagement
- Telnet Management
- Command Line Interface
- SSL for TR-069
- SNMP V1/V2C
- Web Based Firmware Upgrade
- CWMP(TR-069)
- Diagnostic Tools
Port Forwarding
- Virtual Server, Port Triggering, UPnP, DMZ, Manage Control
IPSec VPN
- 10 IPSec VPN Tunnels
- LAN-to-LAN
- Main, Aggressive Negotiation Mode
- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
- MD5, SHA1 Authentication Algorithm
- Manual, IKE Key Management Mode
- Dead Peer Detection (DPD)
- Perfect Forward Secrecy (PFS)
TP-Link TD-W9970 Package Contents
- TD-W9970 Modem/Router
- External Splitter
- RJ-11 Telephone Line
- RJ-45 Ethernet Cable
- Quick Installation Guide
- Resource CD
- Power Adapter
General | |
---|---|
Colour | White |
EAN | 6935364092542 |
Warranty | 12 months |
Type | |
Modem or Router | Combo Modem & Router |
Connection type | ADSL Broadband, VDSL Fibre Broadband, 4G Mobile Network, 3G Mobile Network |
WiFi / Ethernet | Ethernet (wired), WiFi 2.4 Ghz |
Please Note | |
Please note | All information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information. |
