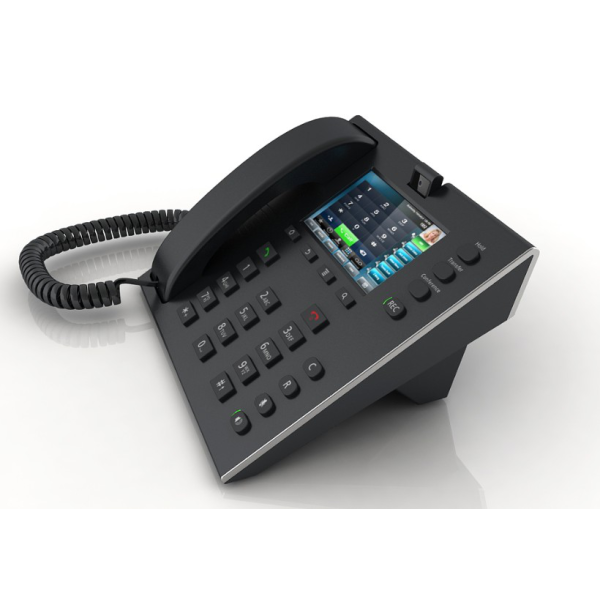

Tecdesk SMART 5500 GSM Desk Phone

This product is end of life

Fixed wireless phones are set to revolutionise the capabilities and the uses for the deskphone in the home and at work. Wirefree and operational on a SIM card, Tecdesk devices enable you to save on telephone bills and eliminates landline associated wired setup and infrastructure costs.

Tecdesk focuses on combining deskphone elegance with intuitive technological innovation to create products which increase convenience and allow you to make a personal statement. The rigorous design and development process that goes into tecdesk products has earned them the coveted industry status of approved GCF manufacturer and given them a reputation for quality and real value with customers around the globe.

Features

• Android OS for smartphone apps at your desk
• Compatible with AT Hayes Command set for integration into Multi-Line or IP Centrex systems to reduce internal call costs
• WiFi hot-spot allows internet connection sharing
• 3.0MP video for video calls
• Supports HD voice calls
• Devoted conversation recording function key
• Virtual Presence function to indicate availability of colleagues
• Easy 1-touch OTA firmware updates
• WiFi provides Fail Over Protection (FOP) from 3G/GSM network interruption
• Dedicated function keys include Hold, Transfer, Conference Call, Do Not Disturb and Microphone Mute
• Supports Virtual PBX for setup of internal extension numbers
• Compatible with Electronic Hook Switch (EHS) to address calls via headset
• Loudspeaker hands-free call function
• SMS messaging capability
• Smart security with phone, SIM, battery compartment and desk lock
• Compatible with external antenna to enhance reception in poor signal areas
• Supports up to 3 expansion modules, each allowing 20 additional contacts

Specification

• Frequency Band: 2G – GSM 900/1800 MHz, 3G – UMTS 900/2100 MHz
• Operating System: Android 2.3.5
• Display: 5" colour TFT capacitive LCD touchscreen, 480*800px resolution
• Internal Memory: ROM 512MB, RAM 512MB
• External Memory: supports microSD card up to 32GB
• Bluetooth: V2.1, A2DP, EDR
• Data Speed: HSDPA 7.2 Mbps, HSUPA 5.76 Mbps
• Phonebook Capacity: 6000 internal or server entries
• Languages: supports multiple languages
• Dimensions: 230*180*125 (mm)
• Battery: 2200mAh Li-Polymer
• Talk Time: 4 - 5hrs
• Standby Time: 140 - 160hrs
• Charge Time: 2.5 - 3.5 hrs
• Headset Connection: Wireless Bluetooth, EHS and 3.5mm audio ports

General

• 2G Network: GSM 900/1800 MHz
• 3G network: UMTS 900/ 2100 MHz
• Language: Support multiple languages
• Battery Type: Lithium polymer
• Battery Capability: 2200mAh
• Bluetooth: YES V3.0
• Antenna: Embedded (supports external Antenna)
• Dimensions (mm): 230*180*125 (main device) / 105*180*115 (expansion device)
• Talk Time: 4~5Hrs
• Standby Time: 140-160Hrs
• Charge Time: 2.5-3.5 Hrs
• SIM Card: 1.8v/3.0v
• Operating System: Linux 2.6.38.6
• Software Platform: Android 2.3.5
• Hardware Platform: Qualcomm MSM7227A (1G)

Display

• Colour: Captive Touch LCD
• Material: TFT
• Resolution: 480*800
• Dimension: 5
• Backlight: White
• Signal Indication: Level 0-4
• Battery Indication: Level 0-4
• Power ON / OFF Animation
• Network Display
• Wall Paper

Ring & Audio

• Speaker: Mono speaker
• Polyphony: 72
• Midi ring
• Headset: 3.5mm jack/ Bluetooth
• EHS compatible
• Keypad Sound
• Voice Channel Switch: Receiver & Handsfree, BT
• Power ON / OFF Audio: No (can be config)
• Volume Level: 1~6

Keypad

• 0 ~ 9 * #
• Power Button
• Call Button
• Cancel Button
• Mute Button
• Handsfree Button
• Memory Button: NO (can add expansion module)

Phonebook

• Caller ID Display
• Capacity: 6000 entries
• Copy
• Group
• Contact Editing

Calls

• Call History: 20*3
• Speed dial
• FDN
• ECT
• DTMF
• Voice Mail
• Conference Call
• USSD

Message

• SMS

Tools

• Calculator
• Alarm
• Calendar

Data

• SAT
• USB Modem
• PC Sync: Yes (via third party)
• IP Centrex

Security

• Phone Lock
• Power ON Code
• Special SIM Support
• PIN Lock-PIN
• Security Configuration

Approved Standards

• CE
• RoHS
• SAR: 1.04W/kg
