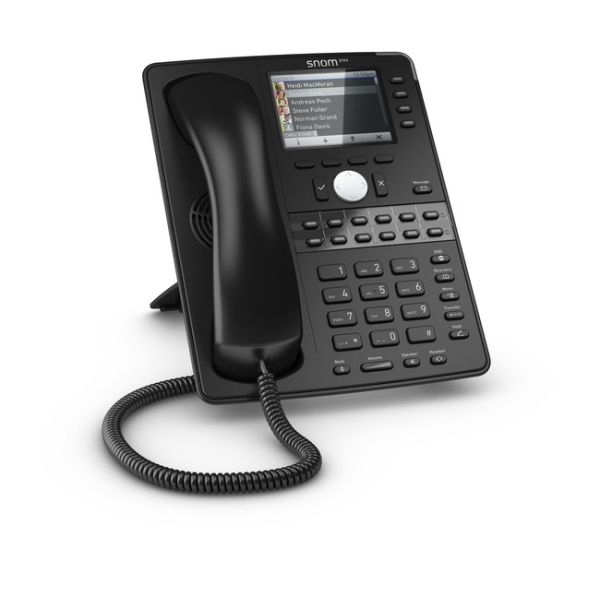

Snom D765 VoIP Desktop Phone

Visual Excellence

The Snom D765 Features a high resolution Colour TFT Display, rich information such as presence and photo caller-id is highly displayed. A total of 16 programmable multicolour function keys can be configured for a variety of one touch telephony functions such as speed dial, busy lamp field or presence indication.

Connectivity

The D765 features two Gigabit Ethernet ports to fulfil even demanding requirements. Built-in Bluetooth compatibility and a Hi-Speed USB port allow for easy connection of various accessories like a USB or Bluetooth headset, a WiFi stick, or the D7 Expansion Module.

High Quality Audio

The advanced speaker, microphone system and Digital Signal Processor (DSP) ensure that the D765 delivers best audio performance. Whether you use the hands-free speakerphone or the handset, you will always experience superior, crystal-clear call quality.

The Snom D765 is the perfect companion for users requiring cutting-edge design and high-end functionality. The D765 simply goes one step beyond.

Benefits

• Wall Mountable
• High Resolution 3.5" TFT Display
• Dual-Angle Footstand - 46° and 28°
• Wideband Handsfree Speakerphone
• Digital Signal Processor (DSP) Enhanced Audio Quality
• 2-Port 1-Gigabit Ethernet switch (RJ45) IEEE 802.3
• Power over Ethernet IEEE 802.3af, Class 3
• USB Headset Ready - Optional Accessory Required***
• D7 Expansion Module Ready - Optional Accessory Required***
• Support for USB WiFi Stick
• Electronic Hook Switch (EHS) Support for Wireless Headsets - Optional Accessory Required***

Features

• 12 SIP Identities / Accounts
• XML Browser
• Call Lists for Dialed/Missed/Received Calls
• Local Directory with 1000 Entries
• Multiple Language Support
• DTMF In-Band / Out-of-Band / SIP-INFO
• Interoperable with all Major IP PBX Platforms

Call Features

• Speed Dialing
• URL Dialing
• Local Dial Plan
• Automatic Redial on Busy
• Call Completion (Busy/Unreachable) - (If Supported by PBX)
• Caller ID
• Call Waiting
• Call Blocking (Deny List)
• Auto Answer
• Hold
• Music on Hold (If Supported by PBX)
• Handling of up to 4 Simultaneous Calls
• Blind and Attended Transfer
• Call Forwarding
• 3 Way Conferencing on the Phone
• Extension Monitoring - (If Supported by PBX)
• Multicast Paging
• DND Mode (DO Not DIsturb)
• Keybooard Lock
• Unified Communications Ready

 Phone Features

• Dimensions - (Approx) - 238 x 190 x 40 mm (LxWxD) Without Footstand
• Dimensions - (Approx)  - 238 x 190 x 200/220 mm (LxWxD) With Footstand
• Weight - (Approx) - 690g (Device) -  Footstand - 230g
• Power Supply - PoE or 5Vdc Power Adapter ( Power Adapter Not Included)
• Handset- 4P4C
• Headse - 4P4C - 4Pin for Snom EHS Advanced
• Hearing Aid Compatible (HAC) Handset
• 1 x USB 2.0 Host Port, Type A, Hi/Full/Low-Speed

In the Box

• Snom D765 VoIP Desktop Phone
• Black Snom Handset
• Handset Cable
• 2M Black Network Cable
• Footstand
• Quick Installation Guide
• Copyright Notice and Warranty Disclaimer
• Information relating to FCC Rules
