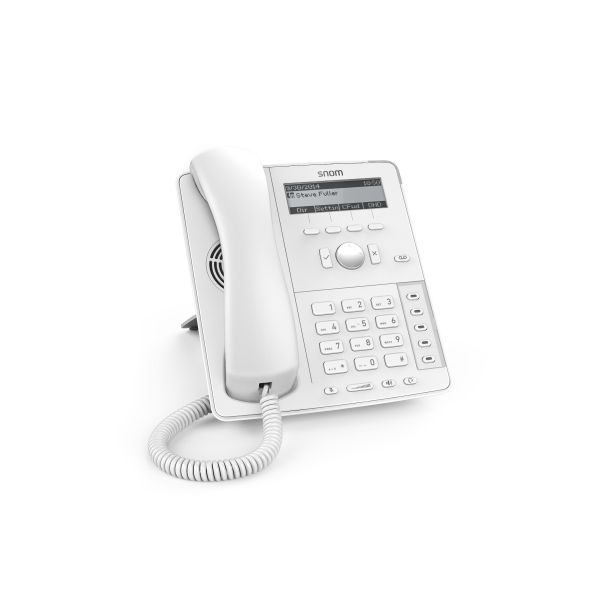

Snom D715 IP Desk Telephone - White - (No PSU)

The Snom D715 IP Desk Telephone is designed to provide the professional worker with the best in high-speed connectivity combined with high-quality audio. The integral Gigabit switch provides future proofing and, combined with the USB port, enables high levels of flexibility and functionality. The USB port can connect a USB headset, a D7 expansion module or WiFi.

Featuring a four-line black and white graphical display, the D715 also has four context sensitive keys, an intuitive, user-friendly menu and five programmable keys with built-in LEDs for visual call indication. It supports four SIP identities. Dual stack IPv4 / IPv6 ensures future proofing. The D715’s combination of features and affordability makes it an ideal endpoint for service providers and larger scale installations.

High Speed Connectivity

The D715 provides high-speed connectivity thanks to its Gigabit Ethernet switch. The USB port on the D715 enables greater flexibility and functionality for the use of USB headsets, the D7 Expansion module, or WiFi.

Intuitive user Interface

Featuring a four-line black and white graphical display, the D715 also has four context-sensitive keys and an intuitive, user-friendly menu. Five programmable keys with built-in LEDs for visual call indication give the user flexibility with each function key configurable for a variety of one-touch telephony functions such as speed dial, busy lamp field, or presence indication.

Advanced Features

Using a pre installed certificate, the D715 supports the latest VoIP security. Advanced remote management and provisioning capabilities make the D715 an ideal endpoint for service providers of VoIP deployments as well as for larger scale installations. Four SIP identities make the D715 flexible to use. Supporting dual stack IPv4 / IPv6, Gigabit Ethernet and USB, the D715 is future-proof even in demanding environments. In a nutshell, the D715 is the perfect combination of features and affordability.

Benefits

• Backlit graphical display, 4 lines
• Dual-angle footstand: 46° and 28°
• Wall Mountable
• Wideband hands-free talking (speakerphone)
• Digital signal processor (DSP) enhanced audio quality
• 2-port 1-Gigabit Ethernet switch (RJ45)
• Power over Ethernet IEEE 802.3af, Class 2
• USB headset-ready
• D7 Expansion module-ready
• USB WiFi stick support (RT2070/RT3070 chipsets)
• Support for wireless headsets via Electronic hook switch (EHS)

Firmware

Features

• 4 SIP identities / accounts
• XML browser
• Call lists for dialed, received, missed calls
• Local directory with 1000 entries
• Multiple language support
• DTMF in-band / out-of-band / SIP-INFO
• Interoperable with all major IP-PBX platforms

Call Features

• Speed dialing
• URL dialing
• Local dial plan
• Automatic redial on busy
• Call completion (busy/unreachable
• Caller identification
• Call waiting
• Call blocking (deny list)
• Auto answer
• Hold · Music on hold
• Handling of up to 4 simultaneous calls
• Blind and attended transfer
• Call forwarding
• 3-way conferencing on the phone
• Extension monitoring, call pickup
• Call park, call unpark
• Multicast paging
• DND mode (do not disturb)
• Keyboard lock
• Client matter code (CMC)
• Unified Communications ready

Audio

Codecs:

• G.711 A-law, µ-law
• G.722 (wideband)
• G.726, G.729AB, GSM 6.10 (FR)
• Built-in assignable ringtones
• Comfort noise generator (CNG)
• Voice activity detection (VAD)

Set - Up

• Configurable through web interface

Provisioning:

• Automatic loading of settings via HTTP/HTTPS/TFTP
• DHCP Options 66/67
• snom Redirection Service
• Remote management via TR-069 / TR-11

Specification

Protocols

• SIP (RFC3261)
• DHCP, NTP
• HTTP / HTTPS / TFTP
• LDAP (Directory)
• Dual Stack IPv4 / IPv6

User Interface

• Localization (language, time, dial tone)
• Red LED for call indication / message waiting
• 4 context-sensitive keys
• 5 programmable function keys with green LEDs
• Paper inlay for labeling of function keys
• Dedicated message key
• Audio keys with LED indication: Mute, speakerphone, headset
• Volume key
• 4-way navigation key, OK and cancel keys
• Menu-driven user interface

Phone Features

Dimensions (approx.):

• 205 x 185 x 40 mm (LxWxD) w/o footstand
• (8.1”x7.3”x1.6”)
• 205 x 185 x 200/220 mm (LxWxD) with footstand
• (8.1”x7.3”x7.9”/8.7”)

Weight (approx.):

• Device 440g
• Footstand 120g

• Input voltage: 5V DC (SELV)
• Power supply: PoE or 5V DC 10 Watts power adapter
• Handset: 4P4C connector

Headset connectors:

• Wired: 4P4C connector or USB connector
• Wireless: USB connector or proprietary 4-pin connector for snom EHS Advanced

• Hearing aid compatible (HAC) handset
• 1 x USB 2.0 host port, type A, Hi/Full/Low-Speed

Environmental conditions:

• Ambient temperature: 0°C to 35°C (32°F to 95°F)
• Storage temperature: -10°C to 45°C (14°F to 113°F)
• Humidity: 5% to 95% (non-condensing)

Features

• Elegant design
• Four-line backlit B/W display
• Dual Stack IPv4 / IPv6
• WLAN ready
• Gigabit switch
• Wall mountable
• 5 configurable LED function keys
• 4 identities (lines)
• Wideband HD audio
• Hands-free operation/speakerphone
• Power over Ethernet (PoE)
• XML Minibrowser
• USB Port

In the Box

• Base phone unit
• Foot stand
• Handset with cord
• Ethernet cable
• Quick Start Guide
