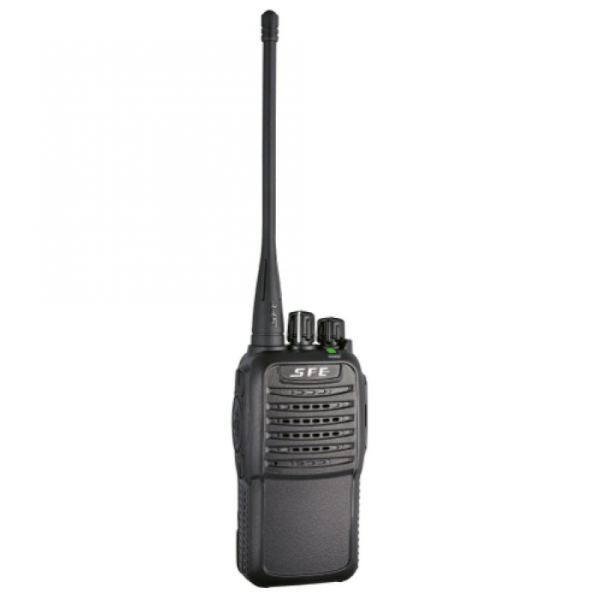

SFE S780D UHF Ruggedised Compact Two Way Radio

Despite its smaller design the S780D offers a significantly wide band coverage, crystal clear audio and ticks all of the boxes for the commercial user, regardless of whether they are using the radio indoors or out in the wilds. The impressively stable high power output is what has gained this model a reputation for being one of the most reliable portable radios on the market. Coupled with its IP66 water and dust intrusion rating puts the S780D in a league of its own. If that wasn't enough the S780D comes with a high-capacity 1650mAh li-ion battery pack as standard.

Main Features

• 16 Channels
• Powerful Output: 5W
• CTCSS/DCS/DTMF/2Tone/5Tone
• Encode & Decode
• Side Key Assignment Programmable
• Various Scan Modes
• Wide/Narrow Bandwidth
• 25KHz/20KHz/12.5KHz(Selective)
• VOX Programmable (10 levels selective)
• FM Radio (Selective)
• End-tone Elimination
• Size: 53*28*104mm

General Specifications

• Frequency Range - UHF: 400-470MHz
• Channel Capacity - 16CH
• Channel Spacing - 12.5/20/25KHz
• Operating Voltage - 7.2V DC
• Battery Capacity - 1600mAh (Li-ion)
• Battery Life (5-5-90 Duty Cycle) - Approx 11-17 Hours
• Operating Temperature - -30'c + 60'c
• Frequency Stability - +2.5ppm
• Antenna lmpedance - 50
• Dimension (H*W*D) (Antenna Excluded) - 53x28x104mm
• Weight (Antenna & Battery Included) - 227

Transmitter Specifications

• Frequency Error - 5 X 10 -6
• RF Power Output - 5W
• Modulation Limiting - ± 5.0KHz
• Spurious Emission - 65dB
• Modulation Distortion - Less than 5%

Receiver Specifications

• Sensitivity - 0.2V
• Adjacent Channel Selectivity - 55dB
• Spurious Response Rejection - 55dB
• Intermodulation(Wide/Narrow) - 55dB
• Audio Output - 250mW
• Audio Distortion - 5%
