RTX 4024 Advanced Repeater - Supports Wideband Audio (For the RTX8630 Only)

RTX 4024 Advanced Repeater - Supports Wideband Audio (For the RTX8630 Only)

Extend the Range of Your DECT Phone, Easy and Simple

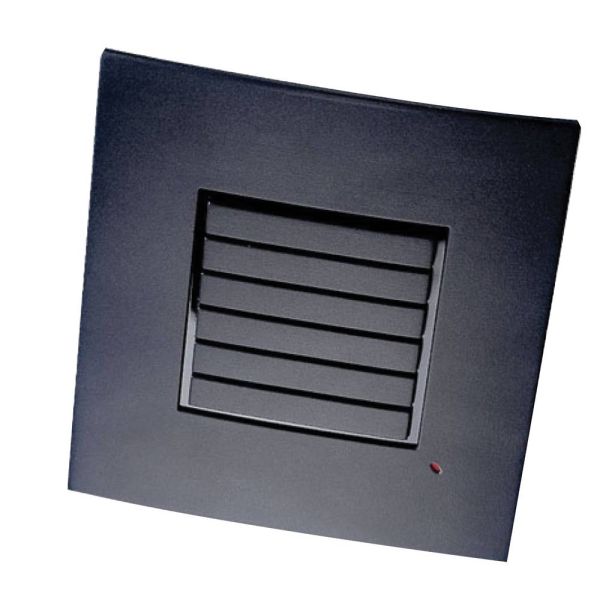

RTX 4024 Advanced DECT Repeater - For Use With the RTX 8630 IP DECT Range

The RTX 4024 Advanced Repeater is for use with the RTX8630 IP DECT Range. A Repeater can be deployed when there is a need to extend the range and coverage of a DECT Telephone. The Repeater can be utilised wherever there is a need to increase limited coverage or improve reception in remote areas.

State of the Art Repeater

• RTX is the Worlds Leading Supplier of Repeaters, an Obvious Choice as a Supplier
• Technically Superior and the Best Price on the Market
• Double the Range of a DECT Base Station - or Achieve up to 2.4km Range with the Professional Edition
• Possibility to Register Multiple Repeaters
• Superior Audio Quality - Narrowband and Wideband

Key Features

• Professional DECT Repeater with Extended Call
• Up to 3 Repeaters per Base Station
• Wideband Audio
• DECT Encryption
• Automatic Registration
• Maximum 3 Repeaters in Daisy Chain - PC Tool Required to Set Up Daisy Chaining

RTX 4024 Technical Specifications:

General Features

• Worldwide DECT Support
• Extending DECT Coverage
• Supports Automatic Handover of Calls Between Cells
• Handling of Two Active Calls Simultaneously
• Up to 3 Repeaters per Base Station
• Automatic Registration Method

Design/Size

• Indoor Cabinet
• Manual Mounting Kit
• Easy to Wall Mount
• Size - 120mm x 35mm x 135mm (W x D x H)

Power Supply

• 230 VAC and 110 VAC Versions Available

Frequency/Coverage

• Frequency Bands Coverage - EU/AU/NZ/US/CA
• Up to 50m Indoor and 300m Outdoor
• Receiver Sensitivity: -92dBm
• 2 Internal Omni-Directional Antennas

Standards/Approvals

• The DECT Repeater is Designed in Accordance with the Digital Enhanced Cordless Telecommunications (DECT) Standard
• The DECT Repeater is Compliant With - TBR6, TBR22 (Generic Access Profile (GAP)
• ETS 300 700 - ETSI Wireless Relay Station Specification

LED Indicator

• Radio Link Quality Indication

RTX 4024 Additional Features

• 12 Slot Support
• Handling of 5 Active Narrowband Calls Simultaneously
• Handling of 2 Active Wideband Calls Simultaneously
• DECT Encryption

RTX 4024 Advanced Repeater Box Contents

• RTX 4024 Advanced Repeater
• Wall Mounting Kit
• Mains Adapter - With EU, UK, US and AUS Clips
• Leaflet
