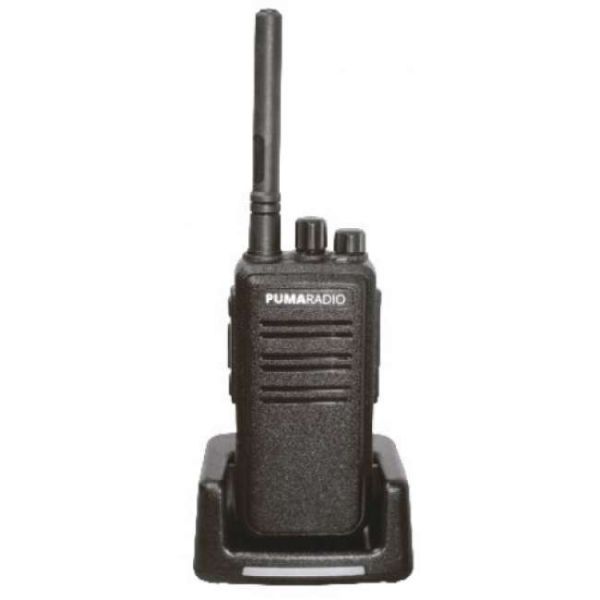

Puma PR-650D Digital UHF Two Way Radio

This Product is End of Life

The PR-650D is a hybrid radio allowing you to use both analogue and digital channels on the same device. Our PMR channels give you increased voice clarity, privacy and most importantly no crackling or interference.

We challenge you to try the PR-650D against your current analogue radios and hear the difference for yourself, its like going to HD audio from a record player.

Features

• Single call, group call, all call
• Encryption
• 16 Channels
• Scan function
• High/low power selectable
• English prompt
• Two programmable side-keys
• VOX
• Talk around
• Monitor
• Battery saving
• Squelch level selectable
• Wide/narrow bandwidth selectable
• End-tone elimination
• TOT (Time out timer)
• Low battery prompt

General

• Frequency Range - VHF - 136-174MHz, UHF - 400-480MHz
• Channel Capacity - 16 Channels
• Frequency Stability -±1ppm
• Audio Power - 1W
• Operating Temperature; -30 °C~ to +60 °C
• Working Voltage - 7.4V
• Dimensions - 132 x 61 x 31mm (Not including antenna)
• Weight - 236g

Transmitter

• Output Power - 4W
• Current - ≤1.7A
• Standby Current - ≤ 0.2A
• Modulation Type - 11KȻF3E/16KȻF3E
• Modulation Distortion - <5%
• Modulation Noise - ≥40dB@12.5KHz
• Adjacent Ch. Power - ≥60dB@12.5KHz
• Audio Response - +1~3dB
• Digital Protocol - ETSI-TS 102 658

Receiver

• Sensibility - ≤0.2μV@12db SINAD
• Adjacent Channel Selectivity - 60dB@12.5KHz
• Intermediation - ≥60 dB
• Spurious Response - ≥70 dB
• Audio Distortion - ≤5%
• Audio Response - +1.3dB
• Modulation Noise - ≥40dB@125dB
