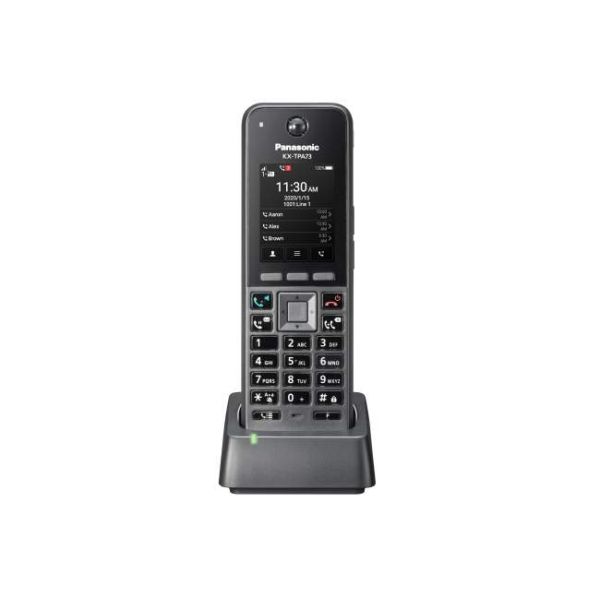

Panasonic KX-TPA73 SIP Advanced Additional DECT Handset

Panasonic KX-TPA73 SIP Advanced Additional DECT Handset

Compatible with Panasonic KX-TGP600 DECT Base Station and Panasonic KX-TGP700 DECT Base Station

The Panasonic KX-TPA73 guides you in every step using the latest technologies. The easy to understand structure of the menu will help users to find the quick dial or the feature they need quickly. Compatible with both the Panasonic KX-TGP600 and Panasonic KX-TGP700 Base Stations. When used with either Base Stations, users have a range of up to 50 metres indoors and up to 300 metres outdoors.

The large Colour High Resolution Display with changeable Background Colour makes the settings of extra functions easily done without needing to consult a user manual. The new design Handset has a comfortable grip regardless if the user is left handed or right handed, a Headset with a 3.5mm Jack can also be connected to the KX-TPA73.

A Vibration Alert is built into the Panasonic KX-TPA73 that silently gives the user information when there is an incoming call. Combining this with the Swivel type Belt Clip users can have the TPA73 with them at all times without being disturbed by ringtones.

Key Features

• Intuitive but Navigated Operation
• Not Only User Interface, but also Hardware Experience is Harmonised with the Software
• Maximised User Experience on a Small DECT LCD
• 2.2 Inch 240 x 320 Pixel Backlit Colour Display
• 3.5mm Headset Jack
• Up to 400 Hours of Standby Time
• Up to 30 Hours of Talk Time

Specifications:

General

• Keys - 3 x Soft Keys - Talk/Speakerphone, Navigation, Cancel/Power, Hold/Msg, Xfer/Clr, Dial, Line, Func, Volume, Shortcut
• LED on Charger - 1 Green LED
• LED (Ringer / Charge Indicator) - 3 Colours - Green / Red / Amber for Incoming Call / Hold Alarm / Voicemail / Missed Call / Charge
• Missed Call Log - Included in Received Call Log
• Dialed Call Log - 20 Per a Handset
• PS Phonebook - Up to 500 Numbers
• Received Call Log - 20 Per a Line
• Voice Clarify (Level Enhancer - Receiving Side) - Yes (On/Off Selectable with Noise Reduction)
• Voice Clarify (Noise Reduction - Sending Side) - Yes (On/Off with Level Enhancer)
• Volume Control - Handset / Speaker Headset - 6 Levels

Display

• Key Backlight - White
• LCD - 2.2 Inch Colour LCD (240 x 320 Pixels)
• LCD Backlight

Features

• CAT-iq - 2.0
• DECT Power Save Mode
• DECT Security (DECT Encryption) - STEP A (DSC,DSAA), STEP B (DSAA2) TGP700 Only
• Mute
• Ringer Tone - 27 (Update 8 MIDI Sounds)
• Full Duplex Speakerphone
• Volume Control - Key Click - On / Off
• Volume Control - Ringer - Off + 6 Levels
• Wideband Audio

Installation

• Swivel Type Belt Clip
• 3.5mm Headset Jack
• IPEI
• Upload over the Air
• Wall Mountable Charger

Details and Power

• Dimensions - 52mm x 22.8mm x 162.3mm (W x D x H)
• Weight - 143g
• Battery Charge Time - 3 Hours
• Battery Life (Talk Time) - Up to 20 Hours
• Battery Life (Standby Time) - Up to 400 Hours
• Battery Type - Li-ion Pack 800mAh
• Power Adapter - AC Adapter / PQLV219** (6.5V/0.5A)

Panasonic KX-TPA73 SIP Advanced Additional DECT Handset Package Contents

• Panasonic KX-TPA73
• Charging Cradle
• Power Supply (6.5V / 0.5A)
• Belt Clip
