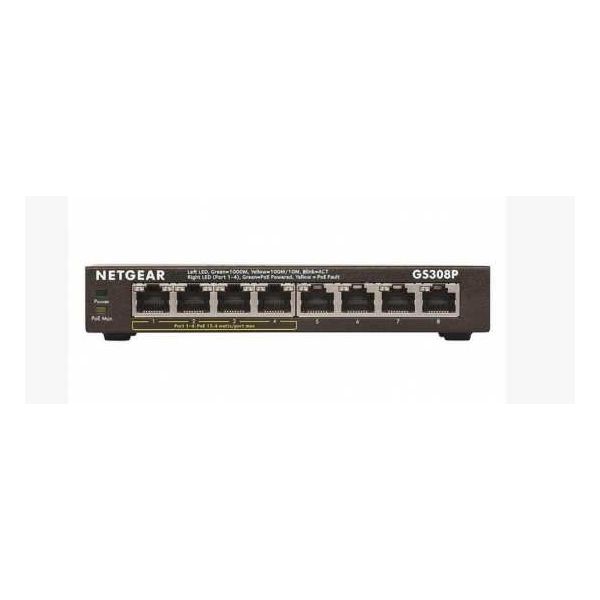

Netgear GS308P - 8-Port Unmanaged Desktop Gigabit PoE Switch with 4 x PoE Ports (53W)

Netgear GS308P | 8-Port Unmanaged Desktop Gigabit PoE Switch | With 4 x PoE Ports (53W)

The NETGEAR GS308P 8 Port Gigabit Ethernet Switch with 4 PoE Ports provides reliable, easy and affordable connectivity for IP Security Cameras, VoIP Internet based phones and non PoE devices on your SOHO - small office/home office network. These unmanaged Plug and Play switches allow you to expand your network connections to multiple devices instantly. The unmanaged switches provide power and data from a single Ethernet (CAT-5e) Cable to devices such as IP Cameras, VoIP/Internet based phones, Wireless Access Points and more. The majority of these models also support PoE power auto balance and allocation feature.

NETGEAR's unique PoE technology automatically balances the PoE Power based on the device needs independent of PoE class detected. These Switches deliver the power the device needs, at the most granular level.

Highlights

• Auto-MDI/MDIX Eliminates the Need for Crossover Cables
• LED Indicators for Ease of Use
• Energy Efficient Technology for Power Savings
• Fanless Design for Silent Operation
• Auto-Negotiation for Automatic Connection at the Highest Common Speed Between Switch and an End Device
• Non Blocking Switching Architecture for Maximum Throughput at Wire Speed
• Plug & Play - No Set-Up Required
• Durable and Rugged Metal Case
• Ideal for Small Office and Home Networks
• Standards-Based Technology Ensures Interoperability with any Standardsbased Devices in the Existing Network
• 802.3af Power Over Ethernet (PoE) for IP Cameras, VoIP/ Internet-Based Phones, Wireless Access Points

 Features

• Power over Ethernet - 8 PoE Ports with 53W Total Power Budget
• Plug and Play - Simple, Easy Set-Up with no Software to Install or Configuration Needed
• Versatile Mounting Options - Supports Desktop and Wallmount Placement, Includes all the Necessary Mounting Hardware in the Box
• Silent Operation - The Fanless Design means Zero Added Noise Wherever its Located - Making it Ideal for Noise Sensitive Environments
• Energy Efficient - Designed to Optimise Power Usage, Lowering its Cost to Operate - Most Models are Compliant with IEEE802.3az Energy Efficient Ethernet Mode
• Built to Last - Every NETGEAR Network Switch is Rigorously Tested for Reliability, Quality and Performance
• 8 10/100/1000Mbps Ports (Auto Uplink)
• Metal Enclosure
• Metal Connector

PoE Configuration

• DC/Input/Power In - 48V, 1.25A
• Power Consumption (Max and Standby) - 60.0W/ 0.28W
• Heat Dissipation (Max and Standby) (BTU/Hr) - 205.20 BTU/ 0.96 BTU

Performance Specification

• Bandwidth (Non-Blocking) - 16Gbps
• Packet Buffer Memory ((Dynamically Shared Across only Used Ports) -192KB
• Jumbo Frame Support - 9,720 bytes
• Queue WRR (Weighted Round Robin) Ratio - 1:2:4:8
• Forwarding Rate (Using 64-byte Packets) - 1000Mbps Port (Average) - 1,448,000 pps
• Latency (using 64-byte Packets) - 1000Mbps Port (Average) - < 3.0 µsec
• MAC Address Table Size - 4K
• Auto MDI/MDI-X Cable Detection
• Auto-Sensing Half/Full Duplex Switched Ports
• Mean Time Between Failures (MTBF) @ 25° C - ;2,244,211 Hours

LED's

• Link/Activity (Left)
• Per Port - Ports 1-4 - PoE Power (Right)
• Per Device - Power, PoE, Max

Quality of Service (QoS)

• 802.1P Based (CoS Supported)

Energy Efficiency

• Energy Efficient Ethernet (EEE) IEEE 802.3az Compliant
• Auto Power Down
• Short Cable Detection
• Fanless

Physical Specifications

• Dimensions (W x D x H) - 158mm x 101mm x 29 mm (6.2 Inches x 4.0 Inches x 1.1 Inches)
• Weight - 0.46kg (1.02lb)
