  • Rugged and Reliable - Built to MIL-STD 810G Standards
  • Dual Mode Operation - Analogue and Digital Mode
  • IP66 Rated, Digital Encoding
  • Extended Talk Range
  • Anti-Interference, Voice Announcement
  • Ideal for Outdoors, Construction, Security, Manufacturing
  • UHF Frequency - 400-470 MHz

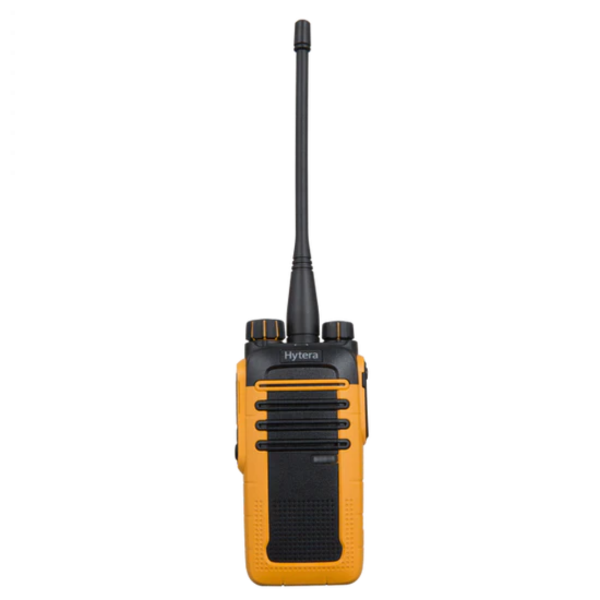

Hytera BD615 Digital & Analogue Rugged Two Way Radio - UHF

Hytera
PMC Product code
20803
Manufacturer's Product Code
BD615 UHF
In Stock
Condition
Brand New
£175.00 £210.00

This product has a 7-10 day lead time

VisaMastercardAmerican ExpressMaestroPayPalKlarnaAppleGoogle Pay

Free shipping when you spend over £150*Free shipping when you spend over £150

DHL Premium shippingDHL Premium shipping

*UK Mainland Only. Some locations and products not eligible due to weight & size. Courier company not guaranteed. For more information, please contact us.

About the Hytera BD615

The Hytera BD615 Two Way Radio has been designed to withstand the most challenging work conditions.

Building on the success of the TC-610 Series, the Hytera BD615 Two Way Radio delivers professional, high performance communication that’s simple to use.

The Hytera BD615 Two Way Radio has been designed for durability and is built to withstand tough conditions. It features a bold, two colour design and meets Military Standards 810 G for resistance to temperature shock and vibration. Additionally, the BD615 is IP66 Certified, meaning it's both dustproof and waterproof. With an operating temperature range of -30℃ to +60℃, the BD615 ensures reliable performance in a wide range of challenging indoor and outdoor environments.

The BD615 uses Hytera's latest digital encoding and error correction to provide superior audio quality. This technology filters out static and background noise, allowing for clear voice communication even from far away.

Hytera BD615 is designed to be versatile, supporting both Analogue and Digital modes on the same device. This flexibility is perfect for fleets with a mix of radios. Its DMR signaling allows for group calls, private calls, and all call functions.

To keep you going all day, Hytera has equipped the BD615 with a 1500mAh lithium battery that provides up to 16 hours of use in digital mode (based on the 5-5-90 duty cycle).

Designed for ease of use, this Radio features a clearly marked Push-to-Talk Button and a 16 Channel Dial. A green LED Indicator shows for receiving and a red LED Indicator shows for transmitting. It also has a Programmable Button for adding extra functions, the Audio Jack works with a wide range of Earpieces and remote Speaker Microphones.

Rugged and Reliable

Featuring a striking two colour design, the BD615 is built to last. It has been tested to meet Military Standards 810 G, ensuring resistance to temperature shock and vibration. The Radio is also IP66 Certified for dust and water resistance, ensuring reliable performance in demanding environments.

Clear Voice

Hytera equipped the BD615 with its latest digital encoding and error correction technology to ensure crystal clear audio. This allows the human voice to be transmitted without distortion, even over long distances.

Excellent Performance

Designed for enhanced performance, the BD615 outperforms older analogue models. Its excellent reception sensitivity allows it to maintain a stable connection for clear, uninterrupted communication.

Analogue and Digital

The BD615 can operate in both Analogue and Digital modes, allowing you to easily switch between the two. This dual functionality enables you communicate with a wider range of devices.

Voice Announcement

Channel number announcement allows you to switch channels quickly and accurately, even without looking at the Radio

VOX

This feature uses your voice to activate the Radio and Microphone, so you don't need to press the PTT (Push-to-Talk) Button.

Licensed Radio

This Radio Requires an Ofcom License to operate - if you do not already have an Existing Ofcom Radio License, you will need to purchase a License before using the Radio.

Please Click Here to Purchase an Ofcom License

Features

  • Ideal for Outdoors, Construction, Security, Manufacturing
  • UHF Frequency - 400-470 MHz
  • Reliable and Durable
  • Anti-Interference
  • DMR Signalling
  • Dual Mode - Digital and Analogue
  • Repeater Mode Operation
  • Voice Announcement
  • VOX, Scanning
  • Clear Voice
  • Extended Talk Range
  • Long Battery Life

Specifcations:

General

  • Frequency Range - UHF - 400-470 MHz
  • Channel Capacity - 48 Channels
  • Zone Capacity - 3
  • Channel Spacing - 25/12.5kHz
  • Operating Voltage - 7.2V
  • Battery - 1500mAh (Li-Ion)
  • Battery Life - Analogue - 11 Hours, Digital - 17 Hours with 1500mAh Battery
  • Weight - 240g
  • Dimensons - 108mm x 54mm x 29mm
  • Frequency Stability - ±0.5 ppm
  • Antenna Impedance - 50Ω

Receiver

  • Sensitivity (Digital) -  0.22μV / BER 5%
  • Sensitivity Analogue - 0.22μV (Typical) (12dB SIN AD), 0.4μV (SIN AD)
  • Adjacent Selectivity - TIA-606 - 65dB @ 12.5kHz / 70dB @ 25kHz
  • Spurious Response Rejection - TIA-603 - 70dB @ 12.5 / 25kHz
  • Inter-Modulation - TIA-603 - 65dB @ 12.5 / 25kHz
  • Hum and Noise - 40dB @ 12.5kHz, 45dB @ 25kHZ
  • Rated Audio Power Output - 0.5W
  • Rated Audio Distortion - ≤3%
  • Audio Response - +1~-3 dB
  • Conducted Spurious Response - <-57 dBm



Transmitter

  • RF Power Output - UHF High Power - 4W, UHF Low Power - 1W
  • FM Modulation - 11K0F3E @ 12.5 kHz, 16K0F3E @ 25 kHz
  • 4FSK Digital Modulation - 12.5 kHz Data Only - 7K60FXD, 12.5 kHz Data & Voice - 7K60FXW
  • Conducted Radiated Emission: -30 dBm > 1 GHz; -36 dBm < 1 GHz
  • Modulation Limiting - ±2.5 kHz @ 12.5 kHz, ±5.0 kHz @ 25 kHz
  • FM Hum and Noise - 40 dB @ 12.5 kHz, 45 dB @ 25 kHz
  • Adjacent Channel Power - 60 dB @ 12.5 kHz; 70 dB @25 kHz
  • Audio Response -  - +1, -3 dB
  • Audio Distortion - ≤3%
  • Digital Vocoder Type - AMBE+2™
  • Digital Protocol - ETSI-TS102 361-1,-2,-3

Environmental

  • Dustproof and Waterproof - IP66 Standard
  • Humidity - Per MIL-STD-810 G Standard
  • Shock and Vibration - Per MIL-STD-810 G Standard
  • ESD - IEC 61000-4-2(Level 40, ±8 kV(Contact), ±15 kV(Air)

Package Contents

  • Hytera BD615 Rugged Two Way Radio
  • UHF Antenna
  • 1500 mAh Li-Ion Battery
  • Belt Clip
  • Wrist Strap
  • User Documentation
More Information
Product Details
ColourYellow
Manufacturer's Code:BD615 UHF
Warranty2 Years
ManufacturerHytera
Key Features
Radios for...Commercial (Site, Security etc)
Transmission TypeUHF
Digital or AnalogueAnalogue, Digital
Single radio or multipackSingle Radio
WaterproofingSplash / Weatherproof
IP RatingIP66
Vibrate AlertNo
Technical Specifications
Dimensions108mm x 54mm x 29mm
Battery TypeLi-Ion
Battery Capacity1500 mAh
Standby Time-
Talk TimeAnalogue - 11 Hours / Digital - 17 Hours
Please Note
Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
