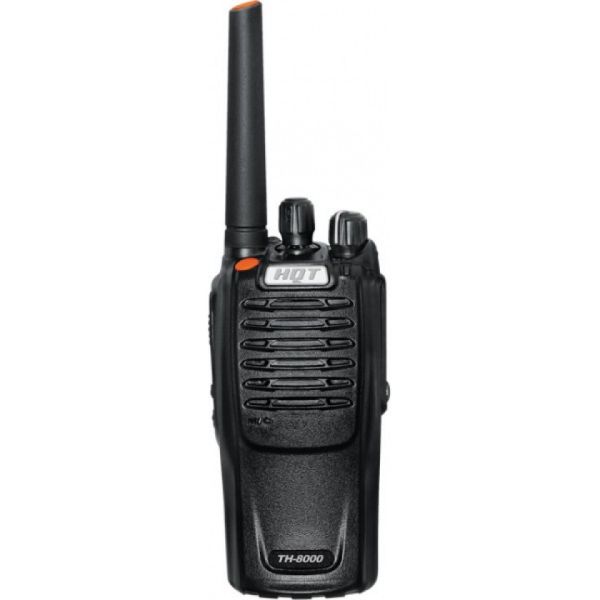

HQT TH-8000 UHF Advanced Business Radio

The TH-800 is a super rugged, High performance, Highly advanced radio model. Its ideal for when radio communications are critical - such as user safety. The advanced alerting features include lone-worker, man-down and dedicated emergency button. When integrated with a radio system, this can be used to identify the user and used accordingly.

Features

• Rugged & Robust design, IP66, MIL-810
• 1.5w of loud, clear audio via 45mm speaker
• 2100mAh Li-Poly battery pack
• 7 signalling protocols - CTCSS, DCS, DTMF, 5 tone, 2 tone, QDC1200 with ANI and PTT ID
• 3 function buttons, including orange emergency button, with fully assignable functions
• Voice annunciation (switchable) for channel and features
• Emergency alert, prompted response, lone worker and man-down as standard - all full configurable
• Dimensions - 120 x 55 x 34mm, 300g
• Firmware upgradeable to allow future enhancements
• Other features include scrambler, compander. whisper mode, configurable VOX and lots more
• Supplied with antenna, battery, desk charger and belt clip
• Ideal for built up areas (Shopping Malls, Schools etc)

Technical Specification

• Frequency Range: UHF: 350-390MHz; 400-470MHz 450-520MHz
• Channel Capacity: 16
• Channel Spacing: 12.5kHz / 25kHz/ 20kHz
• Frequency Stability: ±2.5PPM
• Operating Temperature: -25~55
• Antenna Impedance: 50
• Operating Voltage: 7.4V
• Dimension (H×W×D): 123×62×38mm
• Weight (with antenna & battery): 300g
• Battery: 2100mAh (Li-Poly Battery)

Transmitter

• RF Power (H/L): UHF 4W/1W; VHF 5W/1W
• Modulation Type: 16k F3E / 8k F3E
• Modulation Limiting: ±5 KHz /±4 KHz / ±2.5KHz
• EM Distortion: 5%
• Residual FM: -45dB / -40dB
• Adjacent Channel Power: -70dB / -60dB
• Spurious and Harmonics: -36dBm

Receiver

• Sensitivity: 0.22uV / 0.25uV
• Adjacent Channel Selectivity: 70dB / 60dB
• Intermediation Reject Radio: 65dB
• Spurious Response Reject Ratio: 70dB
• S / N: 45dB /40dB
• Rated Audio Power Output: 1.5W
• Rated Audio Distortion: 5%
