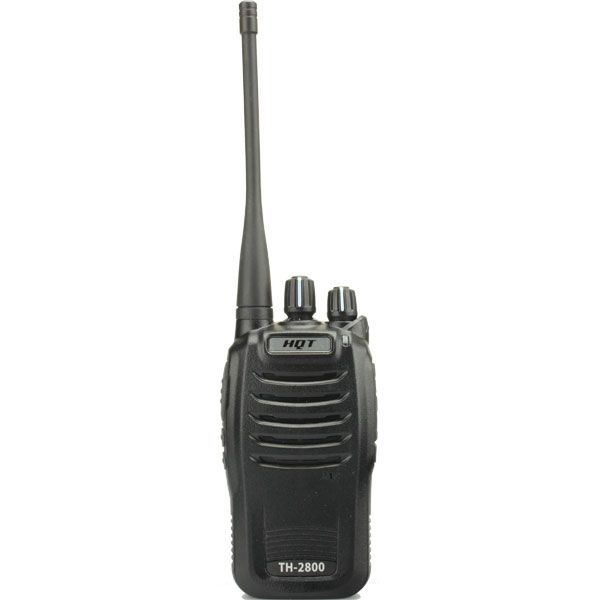

HQT TH-2800 VHF Compact Business Radio

This product is end of life

The TH-2800 redefines entry level licensed two-way radios with great quality, load clear audio and compact, yet robust mechanical design.

Simple operation and controls, coupled with versatile and advanced features, let the TH-2800 outperform many higher priced competitors.

Features

• Compact 'hand friendly' design and weight
• IP54 environmental protection
• 16 channels
• Motorola style 2 pin accessory jack
• Noisy/quiet environment microphone settings
• 700 mW of high quality audio
• 1800 mAh Li-ion battery pack 7.2v
• 3 signalling protocols - CTCSS, DCS and PTT ID (DTMF)
• 2 function buttons with fully assignable functions
• Voice annunciation (switchable) for channel and features
• Programmable scan functions - all/selected channels plus priority
• Dimensions 107 x 61 x 35mm (exc.aerial), 225g (inc.battery)
• Configurable VOX, BCLO, TOT, high/low power
• Programmable power save
• Rental timer
• ESN
• Ideal for open space usage

Technical Specification

• Frequency Range: VHF: 136-174MHz
• Channel Capacity: 16 (15+S)
• Channel Spacing: 12.5kHz / 25kHz
• Frequency Stability: ±2.5PPM
• Operating Temperature: -25~55
• Antenna Impedance: 50
• Operating Voltage: 7.5V
• Dimension (H×W×D): 105×60×35mm
• Weight (with antenna & battery): 225g
• Battery: 1800mAh (Li-ion Battery)

Transmitter

• RF Power (H/L): VHF 5W/1W
• Modulation Type: 16k F3E / 8k F3E
• Modulation Limiting: 5KHz / 2.5KHz
• EM Distortion: 5%
• Residual FM: -45dB / -40dB
• Adjacent Channel Power: -70dB / -60dB
• Spurious and Harmonics: -36dBm

Receiver

• Sensitivity: 0.22uV / 0.25uV
• Adjacent Channel Selectivity: 70dB / 60dB
• Intermediation Reject Radio: 65dB
• Spurious Response Reject Ratio: 70dB
• S / N: 45dB /40dB
• Rated Audio Power Output: 1.5W
• Rated Audio Distortion: 5%

In The Box

• Antenna
• Battery
• Desk charger
• Wrist wrap
• Belt clip
