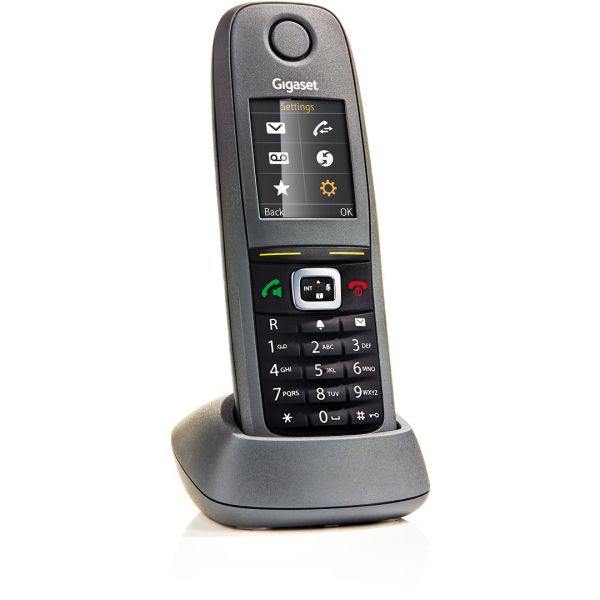

Gigaset R650H Pro Robust Additional Handset

Shock, Dust and Water-Resistant

The Gigaset Pro R650H is ready for almost anything with its IP65 rating ensuring it is dust tight while protecting against water projected against the enclosure from any direction with no harmful effects.

Multicell with Roaming and Handover

The R650H offers seamless compatibility with Gigaset pro N720 IP Multicell and N510 IP Single Cell systems allowing incredible audio quality and mobility in and around the office, factory floor or warehouse without interruption.

Non-Slip for a Perfect Grip

Designed for challenging environments, the rubberized surface ensures a solid grip as part of a ruggedized and thicker handset with illuminated panel for low light situations and click responsive keys for operation while wearing gloves and other protective gear.

CAT-iq 2.0 Certification

In common with the Gigaset pro range, the R650H is certified to the CAT-iq 2.0 standard. It provides a host of features including High Definition (HD) voice, advanced call lists, PIN-protected key lock and silent charging when used with either the N510 single or N720 multicell systems.

Feature Highlights

• Next generation user interface on 1,8” TFT illuminated display
• Side keys for volume adjustment during a call
• Up to 14 hours of talk time.
• Visual call signaling over pocket torch LED
• Profiles for indoor, outdoor and personal use
• Handsfree talking with High Definition Voice/CAT-IQ 2.0 sound quality
• Full compatibility Gigaset N510 IP Single- and N720 IP Multicell systems
• Searchable local phonebook with up to 200 vCards and corporate phonebook via PBX (XML, LDAP)
• Vibrating alert
• Silent charger mode during parallel ringing
• Headset connection via 2.5 mm jack
• PIN-protected keylock for optimum line security
• Easy maintenance with Software-update-over-the-air support - (Country Network and Base Station Dependent)
• Support of Net provider features via menu

Technical Data:

User Interface

• Illuminated 1.8” graphical color display. With TFT-technology supporting 128x160 pixels, 6 lines, 65k colours
• Intuitive, modern user interface with icons, display keys, four way navi key, function keys
• Easy to use designed user interface with 2 color schemes

Phonebook and Dialing

• Address book with up to 200 vCard entries
• vCard entries: first and last name, three numbers, email, date reminder, VIP melodies and picture caller ID
• Jumbo Mode: Featuring bigger dialing font for dialing preparation and incoming calls
• PBX-directory access with search (LDAP and XML) - (Country Network and Base Station Dependent)
• Public online directory search with auto lookup - (Country Network and Base Station Dependent)
• Calls list (missed/incoming/outgoing) with up to 60 entries with CLIP/CNIP and time/date - (Country Network and Base Station Dependent)
• Redialling of last 20 numbers entered
• Short dial keys (soft keys, 9 numeric keys)
• Mute key, key lock and flash key
• Automatic redial function

Receiving Calls

• Caller indication displayed via CLIP and CNIP - (Country Network and Base Station Dependent)
• Display and Spot LED lighted
• Ringtone for VIP entries selectable
• Individual ringer melodies for VIP entries and internal callers
• Anonymous call silencing - (Country Network and Base Station Dependent)
• Vibrating alert

Missed Calls

• Signalled via display and illuminated message waiting indicator
• List showing up to 20 missed calls with caller indication - (Country Network and Base Station Dependent)
• Local missed call list behind 3rd party single and multicell systems with GAP - (Country Network and Base Station Dependent)
• Direct dialling of the missed call list

Audio

• HD Audio supporting HDSP™/CAT-IQ 2.0
• Hands free talking with excellent audio quality
• Side keys for easy volume adjustment
• 22 selectable ringer melodies with 5 volume levels and crescendo
• Selectable audio profiles (personal, silent and loud)
• Headset via 2,5-mm jack

Keypad

• Ergonomic, illuminated keypad in high quality rubber material
• Message waiting key with blinking LED
• Profile key to apply personal, silent and loud settings directly
• Keylock (#-key) with PIN protection
• Side key for easy volume control

Additional Features

• Organiser with calendar and reminder functions
• Email-Reader - (Country Network and Base Station Dependent)
• Info services - (Country Network and Base Station Dependent)
• Screensaver (picture, slideshow, clock, info service) - (Country Network and Base Station Dependent)
• Battery charge also in power off state
• Warning tones when out of the DECT range and vice versa
• Silent charger mode during parallel ringing with other phone registered at the same user

IP65 Protection Class

• Solid particle protection. Dust tight, no ingress of dust; complete protection against contact.
• Liquid ingress protection. Water jets; water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects. The tests under condition of:
• Test duration: at least 3 minutes
• Water volume: 12.5 litres per minute
• Pressure: 30 kPa at distance of 3 m

Compatibility

• Optimized and recommended for:
• Gigaset pro Single Cell systems - e.g. N510IP PRO
• Gigaset pro Multicell systems - e.g. N720IP PRO
• GAP compatible DECT base stations (single and multicell systems)
• CAT-iq 2.0

Interfaces

• DECT
• 2.5 mm headset connector

DECT Range

• Indoor range: up to 50 meters
• Outdoor range: up to 300 meters

Green Office

• Up to 60% less energy consumption, thanks to an energy-saving power supply

Operation Time

• Up to 14 hours of talk time
• Up to 320 hours of standby time

Dimensions

• Handset : 154 x 52 x 30 mm
• Weight : 139 g (incl. Batteries)
• Charger : 75 x 74 x 39 mm
• Packaging : 224 x 166 x 60 mm
• Overall weight of the sales packaging approx. 367 gr

Environmental Conditions

• Operating temperature between +5 to +45° C
• Storage temp between -15 to +60°C
• Relative Humidity between 20% and 75%, non condensing

Contents of the Packaging

• 1x Handset (R650H PRO)
• 1x Locking Disc
• 1x Belt clip
• 1x Battery Cover
• 2 x NiMH AAA Batteries
• 1x Charger for Handset
• 1x Power Supply for Charger
• 1x Security Leaflet
