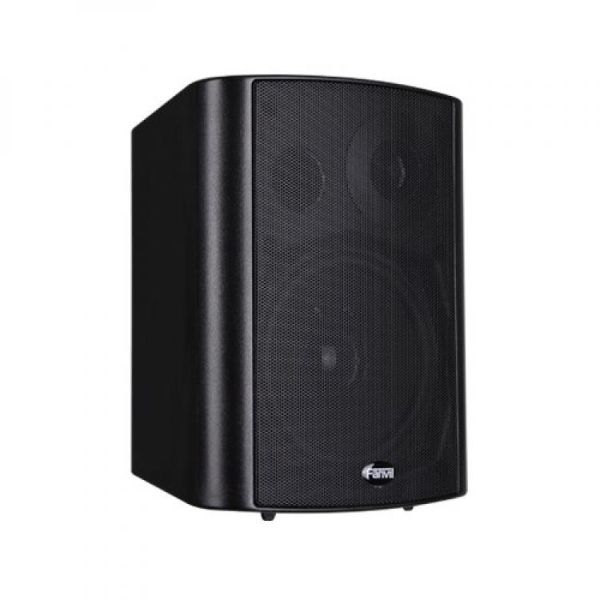

Fanvil iW30 SIP Speaker

The Fanvil iW30 is a SIP Speaker is based on the VoIP Phone Fanvil Technology industry research and development of user requirements specifically for SIP Speaker Products. Voice transmission adopts the standard of IP/RTP protocol, and is compatible with all mainstream IP PBX/Softswitch based on SIP/IMS platforms like Asterisk, Broadsoft, 3CX, Elastix for quick and easy deployment.

It supports third party telephony systems including telephony, broadcasting and intercom for different application scenarios such as:

• Businesses - Office, Shopping Centres, Hotels, Restaurants and Coffee Shops
• Education - Universities, Schools, Gyms and Stadiums
• Public Places - Playgrounds, Museums, Factories and Receptions
• Transport - Airports, Car Parks and Railway Stations

PoE - Power Over Ethernet

• The iW30 is easy to install as it supports PoE Power Supply Function - All that is needed is access to the network cable to achieve power supply and data transmission

iW30 Highlights and Key Features

• Compatible with Standard SIP (RFC3261) Protocol and Main IP PBX/MS Platforms
• All-In-One and Wall Mounted Design, Integrated with Network Audio Codec, Digital Amplifier and Speaker
• Built in Hi-Fi 30W Speaker
• Adaptive Output Power According to the Power Supply Voltage (10W~30W)
• Video Linkage with IP Camera to Monitor On-Site During Broadcasting
• Volume Adjustment Via Online Remotely
• Built in Audio Output Interface for External Active Speakers
• Standard RJ45 Port, Support Across Different Network Segments and Routers
• Smart Networking
• HD Broadcast

Basic Performance

• 2 SIP Lines
• PoE Enabled (Power Over Ethernet)
• Wall Mounted Installation
• Built in Audio Output - To Connect External Speaker
• Support External Power Supply
• Industry Certification - CE/FCC

Audio Features

• Narrowband Speech Coding - G.711a/u, G.723.1, G.726-32K, G.729AB
• Wideband Speech Coding - G.722
• Voice Activation Detection/Mute
• DTMF - With the Audio (In-Band), Out-of-Band (RFC2833) / SIP INFO

Network/Security Features

• Support PoE
• Support the DNS and Secondary DNS Server
• Support VLAN
• Support SNTP Client
• Support L2TP / OpenVPN
• Support SRTP
• Support Web Page HTTP / HTTPS
• Support Qos - 802.1p/q, DSCP
• Support the MD5 Authentication
• Support Web Filter
• DHCP / Static / PPPoE
• STUN

Configuration and Management

• Via FTP/TFTP DHCP OPT66 / SIP/HTTP/HTTPS/PNP/TR069 automatically
• Web Management Interface
• Web Packet Capture (Web -Based Packet - Dump)
• Configuration Export/Import
• Software Upgrade
• System Logs (Syslog)

Physical Specifications

• WAN Port -10/100BASE-Tx, Auto-MDIX, RJ-45
• LAN Port - 10/100BASE-Tx, Auto-MDIX, RJ-45
• Main Chip - Broadcom
• Output Power - According to the Power Supply Voltage A) PoE 10W; B) the 12V/2A, 10W. C) 18V/2A 20W; D) 24V/2A 30W
• Frequency Range-  75 Hz - 20 kHz
• Power Supply - 12V 2A/ 18V 2A/24V 2A DC or PoE(48V)
• Working Temperature: - 10 ~ 50 ℃
• Storage Temperature: - 10 ~ 50 ℃
• Relative Humidity - 20 ~ 80%
• Package Weight - 3.1 kg
• Dimensions - 245mm x 162mm x 182mm (W x H x L)
