Fanvil i32V SIP Video Door Phone

This Product is End of Life

To See Our Available SIP Door Phones Please Click Here

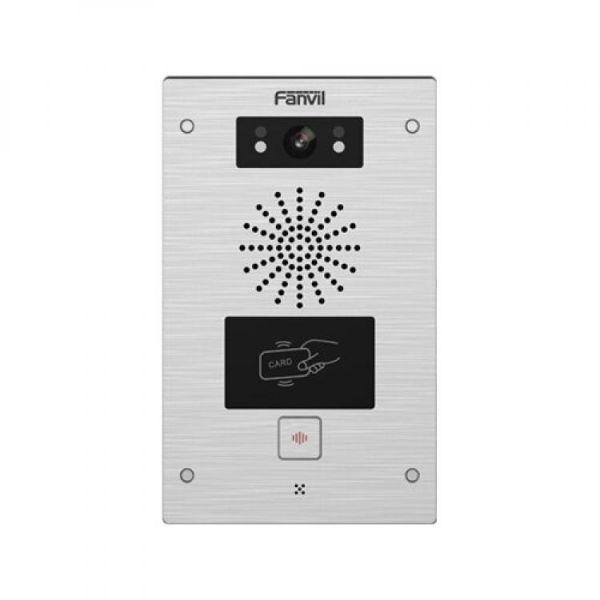

Fanvil i32V SIP Video Door Phone

Designed for Outdoor Environments, HD Audio/Video and IP65/IK10 Protection Grade, Built in Camera with Infared Night Vision

The Fanvil i32V SIP Video Door Phone is designed for outdoor environments with high reliability, HD Audio/Video, IP65/IK10 Protection Grade and a wide temperature range from -20℃ to 50℃. Combining with Access Control, Audio/Video Intercom and Broadcasting for smoother, safer, clearer communication.

Unlock the Door Different Ways

Support to open the door with RFID/IC Cards, Remote DTMF and Indoor Switch.

Support HD Video and Two Video Streams

With HD Camera with In-fared Night Vision, Visitors can be identified clearly, even at night. Support two Video Streams in which the main code stream works for high quality video on monitoring and the subcode stream for smooth SIP Video Call.

HD Audio

Support HD Audio with built in 3W Speaker, Acoustic Echo Canceller (AEC) and background noise reduction.

Multi-Protection Design

Featuring the waterproof and dust proof grade IP65, the anti-collision standard IK10 and the wide temperature range from -40℃ to 70℃, the fanvil i32V can be applied in different kinds of outdoor environments.

24 Hour Video Surveillance

Connecting with VMS Video management system via ONVIF protocol, the i32V enables video preview and video recording, which can be widely used for round the clock video surveillance.

Support External Door Magnetic Detector and Wiegand Card Reader

The Fanvil i32V can be connected to 2 door magnetic detectors which will sound an alarm if the door cannot be closed after timeout. It can also connect to a Wiegand Card Reader to control the second door, which is used in places with high security requirements, such as Prisons and Banks.

Fanvil i32V SIP Video Door Phone Highlights

• Built in HD Camera with Infared Night Vision, Adopt H.264 Codec
• Support ONVIF
• Access Control (By Call, RFID/IC Card and Indoor Switch)
• All in One (Access Control, Intercom and Broadcasting)
• HD Voice Speech Quality with Built in 3W Speaker and Acoustic Echo Canceller (AEC)
• IP65 Waterproof and Dust proof
• IK10 Anti-Collision with Robust Die-Cast Aluminium Frame
• -40°C to 70°C Wide Range Temperature Adaptability
• Support Online Management and Upgrade
• 2 SIP Lines
• Tamper Detection
• Dual Video Streams
• PoE Enabled
• Compatible with Major Platforms Such as - Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya and more

Fanvil i32V SIP Video Door Phone Generic Features

• 2 SIP Lines
• Full Duplex Handsfree
• Intelligent DSS Keys (Speed Dial/Intercom etc)
• Auto Answer
• Intercom Function
• Industrial Standard Certifications - IP65&IK10, CE/FCC

Access Control Function

• Unlock Door Method - DTMF, RFID/IC Card, Indoor Wwitch, WEB Page
• Support 2000 Remote Access List
• Support 2000 RFID/IC Cards
• Support 200,000 Door Open Records
• Support Electric Lock Internal or External Power Supply Options
• Dynamic Multicast Function
• Support ONVIF
• Support Customized DSS Keys
• Network Time Synchronization
• Action URL / Active URI

Networking

• 10/100 Mbps
• IP Configuration - Static / DHCP / PPPoE
• Network Access Authority Authentication - 802.1x
• VPN - L2TP / OpenVPN
• VLAN
• LLDP

Protocols

• SIP 2.0 Over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/TR-069/SIPPNP
• Web Management Portal
• Web-Based Packet Dump
• Configuration Import/Export
• Firmware Upgrade
• Syslog

Audio

• Narrowband Codec - G.711a/u, G.723.1, G.726-32K, G.729AB
• Wideband Codec - G.722
• Full-Duplex Acoustic Echo Canceller (AEC) ̢ Hands-free Mode, 96ms Tail-Length
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /Background Noise Estimation (BNE)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF - In-Band, Out of Band DTMF (RFC2833) / SIP INFO

Video

• Sensor - 1/2.7” Colour CMOS
• 2 Megapixels
• Video Code - H.264
• Resolution -Main Stream 1280 x 720@25fps, Sub-Stream 704 x 576(D1)@25fps
• Viewing Angle - 112° (H), 84° (V) z Minimum Illumination - 0.1Lux, Support for Infrared Illumination

Physical Specifications

• 1 DSS Button (Speed Dial Button)
• 1 RJ45 Port
• 1 Wiegand Port
• 1 Audio Output Interface
• 1 Recording Output Interface
• 2 Embedded Short Circuit Input Interface
• 2 Relays - MAX DC30V / 2A, AC125V / 0.5A
• Active Switching Output - 12V / 500mA DC(Only 1 Relay Support)
• 2 Door Magnetic Detection Interface
• 1 Tamper Alarm Switch
• RFID Reader - ID (EM4100,125KHz) & IC(MIFARE ONE,13.56MHz)
• Power - DC12V/1A or PoE
• Housing Material - Aluminum Alloy Shell
• Protection Level - IP65 and IK10
• Installation - Wall -Mounting
