Fanvil i18s SIP Video Intercom - New

£459.00 (Excl. VAT) £550.80 (Incl. VAT)

    PMC Product Code: 17666

    Manufacturer's Product Code: fanvil-i18s

    • Built In HD Camera With Night Vision
    • IP65 and IK10 Rated - Dust, Water and Tamper Proof
    • Intelligent Security System
    • Noise Reduction
    • HD Voice
    • Full Duplex Handsfree

    Stock status: In Stock

    Condition: Brand New

    Quantity:
    -+

    Need help with your Order?

    Call: 0161 737 9898

    email:info@pmctelecom.co.uk

    Details

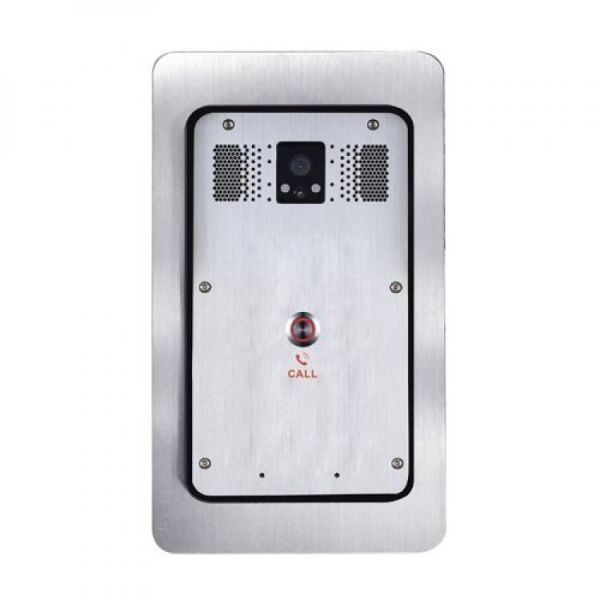

    Fanvil i18s SIP Video Intercom

    The Fanvil i18s SIP Intercom is protected for industrial users, developing based on technology of VoIP, using standard IP/RTP protocol, compatible with many popular SIP PBX / IMS platform such as Asterisk, Broadsoft, 3CX, Elastix etc.

    Security and Intercom Features

    The Fanvil i18s SIP Video Intercom has been designed with an IP65/IK10 protection rating meaning it can be used in many different environment and application scenarios such as Offices, Prisons, Train Stations, Schools and more. With 720p HD Video as well as high quality audio, this Intercom is ideal for any business wanting a security system that is more advanced, offering a secure audio, video, intercom and broadcasting function as well as the best communication for users.

    High Quality Video and Audio

    The Intercom has full Duplex Handsfree Audio, the HD Camera with night vision supports HD Video Communication, the built in 3W Speaker and AEC adapt for noisy environments ensuring that background noise is no issue.

    IP65 / IK10 Rating

    The IP65/IK10 rating makes this ideal for any outdoor solution, the ratings ensure that the Intercom is Waterproof, Dust Proof and Striking Proof, avoiding any type of misuse or malicious damage.

    Highlights

    • Concise Design and Easy Installation (Support Wall Mount and Flush Mounting)
    • HD Camera with Night Vision, Supports HD Video Communication
    • Telecom Grade HD Audio with Built in 3W Speaker and AEC - Adapts to Noisy Environments
    • Functions Include Security, Intercom and Broadcasting
    • Supports Wide Working Temperature Ranges from -40 to +70°C
    • IP65 and IK10 Rated
    • High Compatibility - Compatible with Major Platforms Such as Asterisk, Broadsoft, 3CX, Metaswitch, Elastix

    Access Control Function

    • Two SIP Lines - Support SIP 2.0 (RFC3261) and Related RFC
    • PoE Enabled
    • Full Duplex Handsfree (HF)
    • Default Auto Answer
    • Support Electric Lock Internal or External Power Supply Options
    • Support Customised DSS Keys
    • Network Time SYnchronisation
    • Action URL/Active URI Remote Control

    Audio

    • Narrow Band Speech Codec - G711a/u, G723. 1. G.726-32K, G. 729AB
    • Broadband Speech Codec - G.722
    • Full Duplex Echo Cancellation (AEC)-96MS Tail-Length
    • DTMF - In-Band, Out-of-Band DTMF (RFC2833)/SIP Info

    Video

    • Sensor - 1/2.7" Colour CMOS
    • 2 Megapixels
    • Video Codec - H.264
    • Resolution - Main Stream - 1280 x 720@25fps, Sub-Stream - 704 x 576 (D1)@25fps, Viewing Angle - 112° (H), 84° (V)
    • Minimum Illumination - 0.1Lux, Support for Infrared Illumination

    Physical Specifications

    • 1 DSS Button (Speed Dial Button)
    • 1 Embedded Short Circuit Input Interface
    • 1 Relay - MAX DC30V / 1A, AC125V / 0.5A
    • Active Switching Output - 12V / 650mA DC
    • Camera - 130W CMOS /IR-CUT
    • Microphone: -38dB
    • Speaker - 4Ω / 3W
    • WAN Port - RJ-45, 10 / 100M Adaptive
    • Power Supply - 12V ± 15% / 1A DC or POE
    • PoE - 802.3af (Class 3 - 6.49 to 12.95W)
    • Network Cable - CAT5 or Better
    • Shell Material - Aluminum Cover and Cast-Aluminum Back Case
    • Installation Method - Wall-Mounting or Flush-Mounting
    • Storage Temperature:-40~70℃
    • Working Humidity - 10~90%
    • Protection Level - IP65 and IK10
    • Overall Dimension - 223 x 130 x 74mm (W x H x L)
    • Package Weight - 1800g

    Networking / Protocols

    • Support PoE
    • Primary and Secondary DNS Servers are Supported
    • Support RTSP
    • Support SNTP Client
    • Support VPN L2TP / Openvpn
    • Support SRTP
    • Support HTTP/HTTPS Web Pages
    • Support QoS; -802.1p/q, DSCP
    • Support MD5 Authentication
    • Support Web Filter
    • DHCP/Static/PPPOE
    • Support STUN

    Deployment and Maintenance

    • Auto-Provisioning via - FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
    • Web Management Portal
    • Web-Based Packet Dump
    • Configuration Backup / Restore
    • Access Table Export / Import
    • Firmware Upgrade
    • Syslog
    General
    ColourSilver
    EAN6937295601206
    Warranty12 months
    Please Note
    Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
