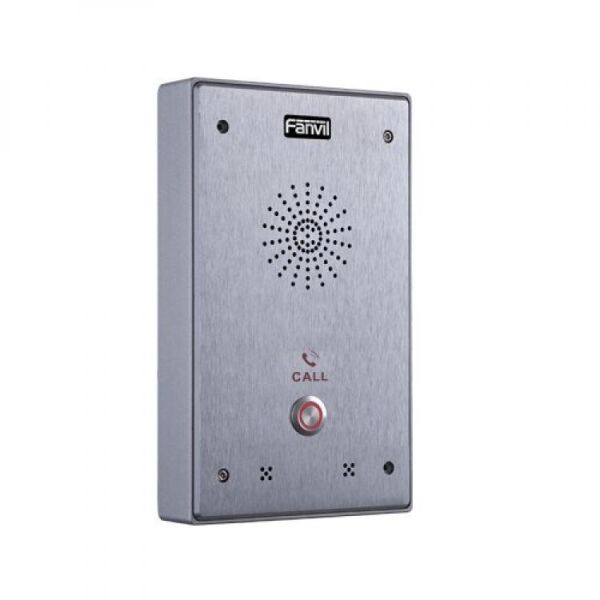

Fanvil i12-N-01 SIP Intercom (Single Button)

Fanvil i12-N-01 SIP Intercom (Single Button)

The Fanvil i12 Single Button SIP Intercom is ideal for a range of different professional settings such as Schools, Banks, Museums and more.

The front of this model is aluminum alloy material with cast aluminium back plate, making sure that its waterproof, dustproof to an IP65 protection level, with built in tamper proof detector to prevent theft or vandalism.

Highlights - Key Features

• Voice Record Output, Can Connect to Hard Disk Video Recording
• Two Input, Support to Connect with Infrared Probe, Door Sensor, Vibration Sensor and Emergency Button etc
• Two Output, Can Connect with Alarm Lamp, Locks and Other Equipment, Control the Security Linkage Through DTMF. Remote Server or Two Output Input Linkage Controller
• External Active Speaker Output Interface, Support HD Voice (G.722) Background Music Broadcast
• High Compatibility - Compatible with Major Platforms - Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc

Main Features

• SIP International Standard
• Tamper Proof
• HD Voice
• Multi-Protection
• Noise Reduction
• Wide Temperature Range
• Tamper Detection
• Intelligent Security System

Generic Features

• 2 SIP Lines
• Full Duplex Speakerphone (HF)
• Intelligent DSS Keys (Speed Dial)
• Wall Mount Installation
• 2 Embedded Short Circuit Input Interfaces
• 2 Embedded Short Circuit Output Interfaces, Support 4 Controlled Events, Remote DTMF, Remote Servers Commands, Interaction with Short Circuit Input, Talking Status
• Output Interface for Active Speaker
• Audio Record Output Interface
• External Power Supply
• Multicast
• All in One - Radio and Intercom, Intelligent Security Function
• Industrial Standard Certifications - IP65, IK10, CE/FCC

Call Features

• Intercom
• Speed Dial
• Auto Answering (Per Line)
• Voice Message (On Server)
• Local 3 Way Conference

Intercom Function

• Call Log - 900 Entries, In/Out/Missed

Protocols

• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/ DHCP/TR069/SIP PNP
• Web Management Portal
• Web-Based Packet Dump
• Configuration Backup/Restore
• Firmware Upgrade
• Syslog

Audio

• Narrowband CODEC - G.711a/u, G.723.1, G.726-32K,G.729AB
• Wideband CODEC: G.722
• Full-Duplex Acoustic Echo Canceller (AEC) – Hands-Free Mode, 96ms Tail-LengthVoice Activity Detection (VAD) / Comfort NoiseGeneration (CNG) / Background Noise
• Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF - In-Band, Out-of-Band – DTMF-Relay (RFC2833)/ SIP INFO
• Omnidirectional Voice Pickup - Pickup Distance to 5 Metres

Networking

• Physical - 10/100 Mbps Ethernet
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - L2TP (Basic Unencrypted) / OpenVPN
• VLAN
• QoS

Physical Specifications

• 1 or 2 DSS Keys (Speed Dial)
• RJ45 Ethernet Jacket x2 - Network x1, PC x1 (Bridged to Network)
• Main Chipset - Broadcom
• Passive Switch - Normally Open and Normally Closed Highest at 30V/1A AC/DC
• Output Interface for Active Speaker
• Audio Record Output Interface
• 2 Embedded Short Circuit Input Interfaces
• 2 Embedded Short Circuit Output Interfaces
• Speaker - 3W / 4Ω
• Cables - CAT5 or Better
• Power Supply - 10~14V/1.5A DC or PoE
• Shell Material - Front Plate, Aluminum Alloy. Back Plate, Cast Aluminum
• Protection Level - IP65 and IK10
• Dimensions - 195mm x 120mm x 39mm (W x H x L)
• Package Weight - 0.85kg
