Fanvil H2S Hotel IP Phone

Fanvil H2S Hotel IP Phone

Professional Wall Mounted Hotel IP Phone

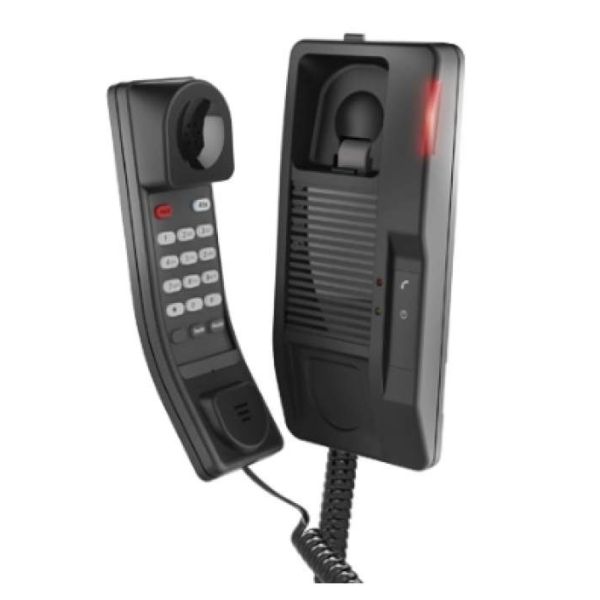

Wall Mounted IP Phone - Simple and Space Saving

The H2S is a wall mounted IP Phone, combining the advantages of its space saving appearance and most commonly used functions of an IP Phone. Its an ideal choice for the application scenarios of Hospitals, Education, General Businesses and Hotels.

Phone Hotspot

With the Fanvil H2S, several Phones can share one number from one server, each phone has its own extension number to contact, transfer and conference others.

Easily Wall Mounted

The Fanvil H2S comes with a Wall Mount Kit, ideal for users who need to save space. The H2 is easy to wall mount.

Fanvil H2S Features

• 1 x SIP Line
• 1 Programmable Key
• Wall Mount
• PoE
• Indicator Light
• Call Transfer
• Handset Mode
• Optional External Power Supply

Call Features

• Call Out / Answer
• Call Hold / Resume
• Call Transfer (Attended/Unattended
• Redial
• Hot Line
• Hot Desking

Phone Features

• Call Logs with Missed Calls / Incoming Calls / Outgoing Calls - Maximum Support 600 Records (Web)
• Dial Without Registration
• Action URL / Active URI
• Web Dial

Audio

• Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
• Acoustic Echo Cancellation (AEC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF - In-Band, Out-of-Band - DTMF (RFC2833) / SIP INFO

Networking

• 10/100Mbps Ethernet
• IP Configuration - Static / DHCP / PPPoE
• Network Access Control - 802.1x
• VPN - L2TP / OpenVPN
• VLAN
• QoS

Protocols

• SIP 2.0 Over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment and Maintenance

• Auto Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR069
• Web Management Portal
• Web Based Packet Dump
• Configuration Export / Import
• Firmware Upgrade
• Syslog
