Fanvil G100S ATA Adapter

This Product is End of Life

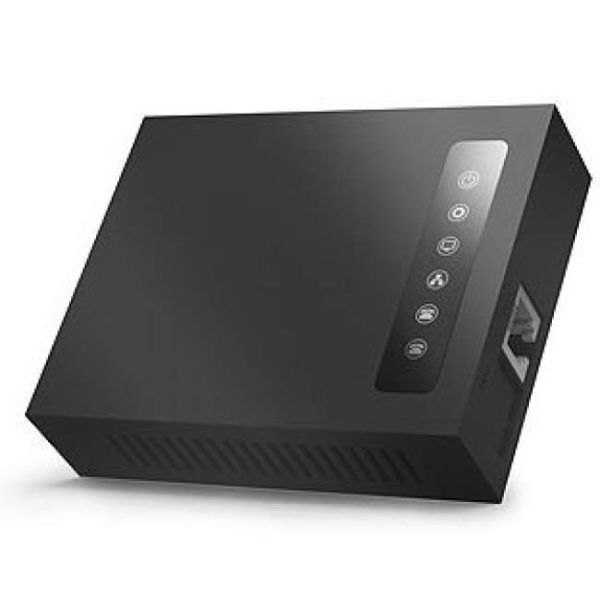

Fanvil G100S ATA Adapter

1 x FXS & 1 x PSTN - Lifeline Supported - One RJ-11 FXS Port to Connect to an Analog Phone or Fax Machine

Connect your Analog Devices to your IP Phone System with the Fanvil G100S. Extremely reliable, small and compact, the G100S Gateway supports up to two SIP servers in SIP 2.0, Correlative RFC's. The Fanvil G Series are VoIP Analog Telephone Adapters (ATA) used for connecting Analog Devices such as Phones and Fax Machines to an IP Phone System.

The G100S has many features, such as 3 Way Conference Calling, Call Forwarding, Call Transfer (Attended and Unattended), as well as a Barring Function for Outgoing Calls, making it a reliable at suitable for all users.

Fanvil G100S ATA Adapter Product Specifications:

Phone Features

• Linux OS
• Supports SIP 2.0 (RFC3261) and Correlative RFC's
• SIP Supports 2 SIP Servers, and Group Servers
• Supports SIP UDP/TCP
• SIP Support SIP Domain, SIP Authentication (None, Basic, MD5), DNS Name of Server, Peer to Peer/IP Call

Key Features

• System Led to Indicate Power/Phone/Register Status
• Supports BY-PASS FAX

Audio Features

• Codec - G.711A/u, G.729AB, G.726-32
• DTMF - In-Band, RFC 2833 and SIP INFO
• Voice Activity Detection (VAD)
• Comfort Noise Generation (CNG)
• Background Noise Suppression
• Adaptive Jitter Buffers
• Packet Loss Concealment
• Different Country Tones

Advanced Features

• Call Forwarding (Busy/ No Answer/ Always)
• Call Transfer (Unattended / Attended)
• Call Holding
• Call Waiting
• 3 Way Call Conference
• MWI
• Flexible Dial Plan
• Barring Function for Outgoing Calls
• Caller ID(FSK/DTMF)
• Indication when N/A Line Available
• CLIR (Rejects Anonymous Calls)
• CLIP (to Make an Anonymous Call)
• Dial Without Registration
• Hotline/Warm-Line
• Black List / White List

Network / Security Features

• WAN / LAN - 10/100M Ethernet Ports
• Bridge Mode and Route
• PPPoE for xDSL
• VLAN (802.1Q/P)
• NAT (NAPT)
• NAT Transverse - Support STUN Client
• DHCP Client on WAN/DHCP Server on LAN
• Main DNS and Secondary DNS Server
• NTP Client
• Firewall
• Web Management Access Restricted
• VPN (L2TP/PTP)
• Ping, Tracert, Telnet

Maintenance and Management

• WEB Management
• Management with Different Account Rights
• Recover Firmware and Factory Reset Through Uboot
• Upgrade Firmware via HTTP, HTTPS, FTP, TFTP
• DHCP Option66 and Custom Option for Auto Provisioning
• Auto Provisioning to Upgrade Configuration File
• Syslog

Physical Features

• Adapter Input - AC 100-240V
• Adapter Output - DC 12V/0.5A
• WAN Port -10/100 BASE-T RJ-45 for LAN
• LAN Port-10/100 BASE-T RJ-45 for PC
• FXS Port - 1 x RJ11
• SDRAM - 64MB
• FLASH - 16MB
• Fanvil G100S Dimensions - 85mm x 67.6mm x 35mm
• Gross Weight - 220g
