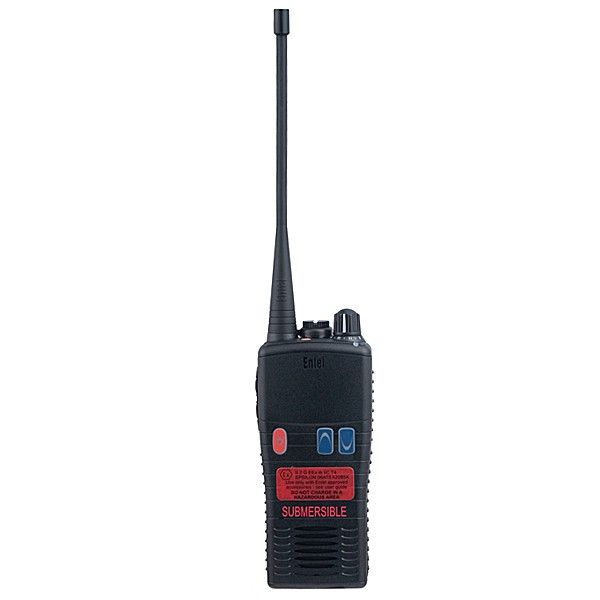

For those requiring an entry level PMR446 ATEX portable with a no compromise build specification, the HT952 is the most cost effective solution. From an established generation of commercial grade portables, the fully submersible IP68 HT Series 2.0 is designed to operate in the most hostile environments and with its MIL-STD 810C/D/E/F construction and exceptionally loud audio, is the choice of the fire & rescue services and major blue-chip petrochem organisations worldwide.
For your convenience the HT952 has a 16 channel capacity, allowing you to duplicate all 8 European PMR446 allocated channels on a different CTCSS or DCS tone. Alternatively, just use the first 8 positions. Utilising the latest intelligent Lithium-Ion battery technology with battery cycle count* your HT952 will even alert you to imminent battery life expiration.
The HT952 comes with channel scanning, VOX and local personal attack alarm, with optional Bluetooth communications facility and variable point voice scrambler. This low cost entry level model will exceed the expectations of even the most experienced radio users.
Features
Submersible to IP68 (5 metres for 1 hour)
MIL-STD 810C/D/E/F
1800mAh Li-Ion battery
Flash upgradeable to add future features
Robust accessory socket
16 channels
Voice annunciation (option)
Bluetooth™ wireless communications (option)
Clone data from one radio to another
VOX hands free (with audio accessory)
Programmable channel monitor button
Programmable scrambler (voice inversion)
Local Personal Attack Alarm
Technical Specification
General
Frequency Range - 446.00625 - 446.09375MHz (HT952)
Channels - 16 Channels
Channel Spacing 12.5 kHz / 25 kHz
Communication Method - Simplex / semi duplex
Antenna Impedance - 50 ohm
Antenna - Whip / stubby
Battery Type - 1800 mAh Li-Ion battery pack
Power Supply Voltage - 7.4V DC
Current Drain (nominal) TBA
Duty Cycle (5/5/90) TBA
Microphone Internal condenser microphone
Operating Temperature -20° to +55°
Size (mm) 59.5(W) x 130(H) x 37(D)
Weight - 277g with battery and aerial
Transmitter
Power Output - HIGH – 5W, LOW - 1W
Modulation 8K0F3E/16K0F3E
Oscillator Method - PLL
Frequency Stability < ±0.00025% (±2PPM)
Maximum Deviation ±2.5 kHz(Narrow)/ ±5 kHz(Wide)
Audio Distortion < 5% (1 kHz 60%
Spurious Emission -68 [dBc]
Hum & Noise -40 [dB]
Receiver
Receiver Type - Double Superheterodyne type
Sensitivity -0.25uV (12dB SINAD)
Frequency Stability ±0.00025%(±2PPM)
Spurious Rejection -60 dB
Adjacent Channel Selectivity -60 dB (Narrow) , -70 dB (Wide)
All information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
