EnGenius Freestyl 2 Extreme Range Cordless Phone - Quint

About the EnGenius FreeStyl 2

The EnGenius FreeStyl 2 is a powerful, scalable 900 MHz Cordless Phone System engineered for unparalleled wireless coverage across long distances and complex, multi-floor buildings. With a sleek design, robust technology, and key features, they are the perfect communication solution for offices and large estates.

The EnGenius FreeStyl 2 is perfect for businesses with mobile staff who frequently move beyond their office or cubicle. They are especially useful on expansive properties such as farms, ranches, hotels, and luxury estates where owners or employees need reliable connectivity over extended distances.

The FreeStyl 2 delivers exceptional range using innovative technology, offering up to 10 acres of outdoor coverage, 25,000 square feet indoors, and penetration across up to 6 floors. It supports a total of 9 cordless handsets per base and features a built-in two-way radio (handset-to-handset or handset-to-base) for secure, instant communication. Additional features include a speakerphone on both the base and handset, and a multi-language setup option.

Extreme Cordless Range

FreeStyl 2 provides extreme coverage - up to 100,000 sq. ft. of facility coverage, penetration across up to 6 floors, or up to 10 acres in open areas.

Outperforms 1.9 (DECT), 2.4 / 5 GHz Solutions

Its high-power, high-sensitivity coverage easily penetrates tough obstructions like concrete, wood, and drywall, ensuring signal reliability across your property.

Scalable System

Scalable single-line system supports up to a total of 9 Handsets.

Versatile

FreeStyl phones simplify communication by integrating both speakerphone capability and 2-way radio intercom. You can use the intercom for instant, secure communication directly between handsets.

Business Friendly Features

• Broadcast Capability - Instantly Send Announcements to Multiple Handsets from any FreeStyl Handset

• Simple Connectivity - Plugs Directly into a Standard Phone Jack or an Analog Port on a PBX System

• Flexible Deployment - Can Operate as a Standalone Phone System or as a Long Range Cordless Extension for your Existing PBX

No Recurring Costs

No contracts, no monthly fees. Enjoy reliable communication without subscriber contracts, monthly service charges, or licensing fees (unlike cellular and 2-way radio).

Main Features

• Scalable - Supports up to 9 Handsets (Extra Handsets Sold Separately)
• High Power / Sensitivity for Extreme Wireless Range and Connectivity
• Outperforms 1.9 DECT, 2.4 GHz & 5GHz Solutions
• 2 Way Intercom, Speakerphone
• Simultaneous Broadcast to Multiple Handsets from any Handset
• Limited One Year Warranty on Handset and on Base
• TAA & NDAA Compliant

Features:

Long Range

• 6 Floors in Building Penetration
• 100,000 Square Feet of Facility Coverage
• 10 Acres of Property, Open Land Coverage

Handset Features

• Telephone, Two Way Radio
• 900 MHz DSS, Frequency Hopping
• Broadcast Push to Talk
• Call Hold, Call Transfer, Call Waiting
• Call Logs - Dialled and Received
• Caller ID, 2.5mm Headset Jack
• Intercom - Handset to Handset, No Group Chatter)
• Keypad Lock, Mute, Redial
• Selectable Handset Grouping (7 Groups)
• Silent Ring, Speakerphone
• User Handset Naming
• User Programmable PBX Functions (9 Per Handset)
• Vibrate Mode

Ports

• PBX Compatible
• PTSN (RJ11) Ports - 2 (1 Telephone, 1 Line)

Call Features

• Ring Group / Hunt Group Support
• Conference Calling
• Modifiable Flash and DTMF Timing

Configuration

• # Talk Paths - 1
• # Supported Handsets per Base - 9
• # Total Handsets Supported - 9
• # Concurrent Calls per Handset - 1
• # Simultaneous Calls per Base Unit - 1

Battery and Charger

• Li-Ion Technology
• Up to 4 Hours of Talk Time
• Up to 50 Hours of Standby Time
• 3 Hours to Recharge

Technical Specifications:

Electrical Specifications

• Frequency - FreeStyl 2 Base -  902-928 MHz, FreeSyl 2 Handset -  902-928 MHz
• RF Power - FreeStyl 2 Base - Peak - 27 dBm, Average - 21 dBm, FreeSyl 2 Handset - Peak - 26 dBm, Average - 20 dBm
• Channel Spacing - 101 KHz
• Number of Channels - 252
• Modulation - Differentially Encoded MSK
• Multiple Access - Frequency Hopping TDD
• Frequency Hopping Rate - 100 Per Second
• TDMA Frame Length - 10ms
• Number of Talk Paths - 1
• Receiver Sensitivity - < -111 dBm (@ BER 10-2)
• Antenna Connector - FreeStyl 2 Base - Reverse Thread TNC, FreeStyl 2 Handset - Proprietary
• Antenna Gain - FreeStyl 2 Base - 2dBi, FreeStyl 2 Handset - 1.5 dBi (Short Antenna)
• TX Power Control Range - FreeStyl 2 Base - 400 mW, FreeStyl 2 Handset - 100 - 400 mW
• Telephone Interface - FreeStyl 2 Base - RJ11 x 2
• Speech Coding - 8 kbps G.729A
• Channel Coding - 8 kbps Convolutional+CRC
• Transmission Data Rate - 85.333 kbps
• User Data Rate - 64 kbps Duplex

Electrical Specifications:

• Duplex - Time Division Duplex (TDD)
• Voice Quality - TIA/EIA-470B
• Ring Signal - 20-50 Hz, 30–90 Vrms
• Flash Time - 100-900 ms Programmable
• Power Source - FreeStyl 2 Base - AC / DC 100-240V, 5V/1A Adapter, FreeStyl 2 Handset - 1100mA / 3.7V Li-ion Battery Pack
• Charge Time - FreeStyl 2 Handset - 3 Hours from Empty
• Talk Time - Up to 4 Hours
• Standby Time - Up to 50 Hours

Physical Specifications

• FreeStyl 2 Handset Buttons - Left and Right Soft Keys, Broadcast, Up / Down, Caller ID / Hold, Talk Flash, End / Power, 0-9 #, Speakerphone, Intercom
• Jacks - 2.5mm Jack, DC In - On Charger

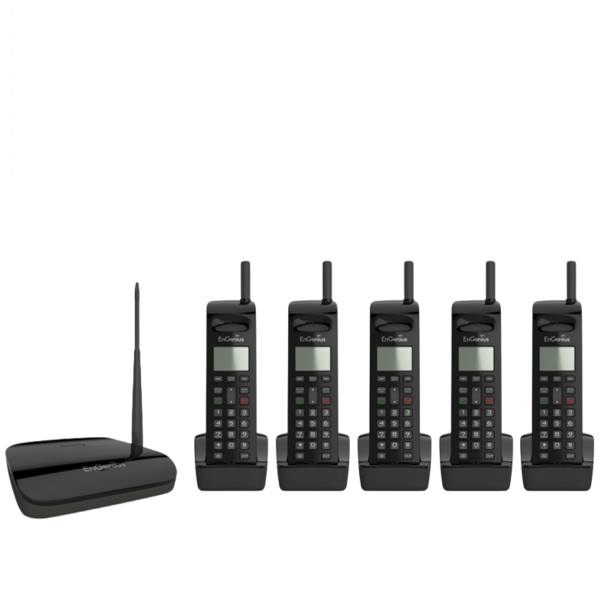

Package Contents

• Base Station with Antenna Installed
• Base Station AC Adapter
• Handset with Antenna Installed x 5
• Handset Desktop Charger x 5
• Handset Desktop Charger Adapter x 5
• 1100mA Li-Ion Battery Pack x 5
• Telephone Cord
• Belt Clip x 5
• Quick Guide
