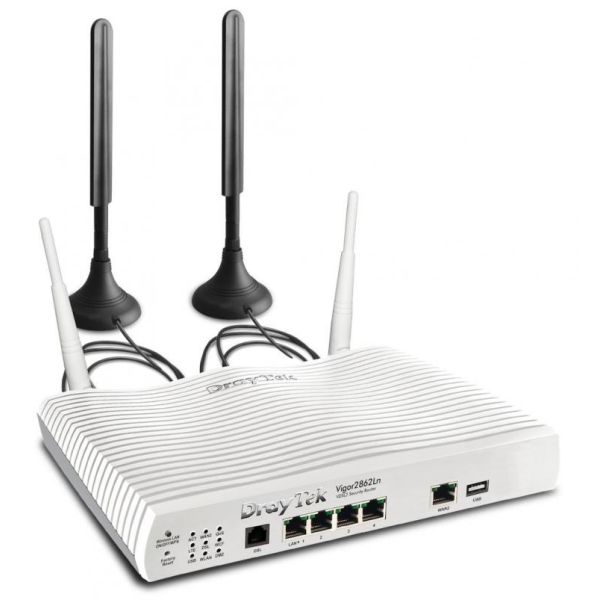

DrayTek Vigor 2862LN Wireless ADSL/VDSL Modem Router with Built-in 3G/4G Sim Card Slot for Cellular Connectivity

DrayTek Vigor 2862LN Wireless ADSL/VDSL Modem Router with Built-in 3G/4G Sim Card Slot for Cellular Connectivity

The Vigor 2862L Series features the same specification as the Vigor 2862, with the addition of built in 4G (Cellular/LTE) connectivity, compatible with all UK/Ireland cellular networks (Apart from Relish). The series includes the Vigor 2862LN and the Vigor 2862Lac, the difference being 802.11n Wireless LAN vs. 802.11ac dual band. if you do not want to use wireless it can be disabled.

The embedded 4G/LTE connectivity provides a self contained solution as opposed to having to add external or USB modems to your router. A standard sim slot on the back of the router is secured with a cover to prevent accidental removal - the cover can be left off if needed.

As well as connectivity to the 4G (LTE) networks, the Vigor 2862L series provides backward compatibility to 3G networks for areas or neworks where 4G is not available. Full function SMS message operation also provides additional functionality and control.

3G/4G can provide your sole/primary internet connection, with optional fallback (backup) to another WAN connection (DSL or Ethernet fed) or 3G/4G can be the backup to your primary DSL/Ethernet connection.

Secondary Backup 3g/4g connectivity using a second network/SIM can be added by the use of an additional 3G/4G modem (not supplied). Check the compatibility list here - https://www.draytek.co.uk/support/guides/usb-3g-4g-modem-support-list to see which USB modems are supported. Please note that an external USB modem is only needed for the second cellular connection - the primary 3G/4G interface and SIM slot is built-in. Alternatively using Wireless WAN the Vigor 2862LN can derive a secondary WAN (Internet) connection from a Wi-Fi feed - e.g your mobile phone's hotspot or a temporary mobile provision.

Please Note that the 'Vigor 2862L' series consists of several variants. The built-in cellular features are the same on each, but they have either no built-in WiFi (Vigor 2862L) or 802.11n Wireless (Vigor 2862Ln) or 802.11ac Wireless (Vigor 2862Lac). All other features are the same. The non-wireless model (Vigor 2862L) is available only to special order for project application. Wireless LAN can be disabled on the wireless models or can be ordered factory disabled.

The DrayTek Vigor 2862L Series Provides the Following Features on 3G/4G (In Addition to all Usual Vigor 2862 Features)

• Standard-Size SIM Slot
• Sending/Receiving of SMS (Text) Messages to Web Interface
• Status Reports & Alerts via SMS, and SMS-Initiated Reboot
• LTE Cat 4 / 3GPP Release 9 with Fallback to 3G
• LTE Max Speed - 150/50Mb/s (RX/TX)
• Standard Size SIM Slot on with Fixed Cover
• Unlocked to any Network (BT, EE, 3, O2, Vodafone, Eircom)
• LTE (FDD) Bands - 1 (2100Mhz), 3 (1800Mhz), 5 (850Mhz), 7 (2600Mhz), 8 (900Mhz) & 20 (800Mhz)
• LTE (TDD) Bands - 38 (2570-2620 Mhz), 40 (2300 - 2400Mhz) & 41 (2496 - 2690Mhz)
• LTE Bandwidth - 1.4/3/5/10/15/20 Mhz
• LTE Power - Class 3 (23dBm +-2dB)
• LTE Duplex - FDD (Frequency Division), TDD (Time Division)
• UMTS (3G) Bands: 1 (2100MHz), 5 (850Mhz) & 8 (900MHz)
• GSM Bands - 900MHz, 1800MHz
• 3G Data Modes - GPRS/HSDPA/HSPA+
• GPRS MS Output - Class 12
• Included Antennae - Two with Magnetic Extension Bases
• LTE Antenna Connection - SMA Female x 2

The Vigor 2862L series ships with two LTE aerials (antennae) which can rotate and tilt for optimum reception. The included extension bases provide a 1M extension cable to allow optimum positioning, avoiding obstructions, cabinets or equipment. On the wireless LAN-equipped models (Vigor 2862Ln & 2862Lac), there are two additional aerials. The WiFi (outer two, white) and LTE aerials (inner two, black) have different plugs to ensure that that the correct socket is used.

The Vigor 2862L Series Using 3G/4G Cellular Connectivity is Ideal for:

• Backup to your Primary Internet Feed (ADSL, Cable etc.)
• Providing Lower Cost Broadband than a Fixed Line Solution
• Areas without Fixed Line Broadband Access
• Compatible with a Wide Range of 3G Modems/Phones
• Temporary Locations
• Mobile Homes
• Locations on the Move - Coaches, Trains
• Fairgrounds & Temporary Exhibitions
• Outdoor Locations (the Router and Modem Itself must be Indoors!)
• Disaster Planning & High Availability

*Please refer to the main Vigor 2862 product page for more details of standard features included in the range - Click here for the product page* - https://www.draytek.co.uk/products/business/vigor-2862

Text Message (SMS) Control & Reporting

As a cellular network device, the Vigor 2862L series takes advantage of text messaging (SMS) to allow remote interrogation and control. Sending a simple command ('router status') to the router from a regular cellphone will get an instant reply telling you about the router's current status, firmware version, each WAN port's IP address, status and data volumes.

Another command ('Router Reboot') enables users to reboot the router remotely. For security, the commands require a password and a whitelist can allow messages only from your specified phones preventing unauthorised persons from being able to send rogue commands. See the screenshot on the right for examples.

The Vigor 2862LN can also send and receive text messages from its web interface; checking incoming messages allows you to read service messages, for example that you are low on credit but it's also a quick way to type a message to anyone else's mobile phone from your web browser. The facility is also useful to confirm your credit balance (for PAYG SIMs) or to use top-up vouchers (where these are accepted by SMS). You can also send text messages from the command line via a telnet connection - more suited for automation/integration.

Specifications:

Physical Interfaces

• LAN Ports (Switch)
• 5 x Gigabit Ethernet (000 Mb/s) Ports - (LAN Port 5 is Switchable with WAN2 - Ethernet)

WAN Ports

• WAN1 - ADSL/VDSL, RJ11
• WAN2 - Gigabit Ethernet (1000Mb/s) Ethernet for Load Balance and WAN Failover
  (Switchable as Ethernet LAN Port 5)
• WAN3 - USB 2.0 Port for 3G/4G Modem, Thermometer or Printer
• WAN4 - USB 2.0 Port for 3G/4G Modem or Printer
• Wireless WAN - Wireless Interface can Provide WAN Connectivity

Performance

• Firewall - Up to 400Mb/s Max
• IPSec VPN - Up to 50Mb/s Max

Cellular Compatibility/Features

• Standard-Size SIM Slot
• Sending/Receiving of SMS (Text) Messages to Web Interface
• Status Reports & Alerts via SMS, and SMS-Initiated Reboot
• LTE Cat 4 / 3GPP Release 9 with Fallback to 3G
• LTE Max Speed : 150/50Mb/s (RX/TX)
• Standard size SIM Slot on with Fixed Cover
• Unlocked to any Network (BT, EE, 3, O2, Vodafone, Eircom)
• LTE (FDD) Bands - 1 (2100Mhz), 3 (1800Mhz), 5 (850Mhz), 7 (2600Mhz), 8 (900Mhz) & 20 (800Mhz)
• LTE (TDD) Bands - 8 (2570-2620 Mhz), 40 (2300 - 2400Mhz) & 41 (2496 - 2690Mhz)
• LTE Bandwidth - 1.4/3/5/10/15/20 Mhz
• LTE Power - Class 3 (23dBm +-2dB)
• LTE Duplex - FDD (Frequency Division), TDD (Time Division)
• UMTS (3G) Bands: 1 (2100MHz), 5 (850Mhz) & 8 (900MHz)
• GSM Bands: 900MHz, 1800MHz
• 3G Data Modes - GPRS/HSDPA/HSPA+
• GPRS MS Output - Class 12
• Included Antennae - Two with Magnetic Extension Bases
• LTE Antenna Connection - SMA Female x 2

ADSL Compatibility

• ANSI T1.413 Issue2
• ITU-T G.992.1 G.dmt (ADSL)
• ITU-T G.992.2 G.lite
• ITU-T G.992.3 ADSL2
• ITU-T G.992.5 ADSL2+
• Annex L (READSL)
• Annex A
• Annex M
• ANFP Issue 3 Compliant/Certified (for Annex A & Annex M)
• DSL Forum - TR-048/67 & TR-100

VDSL Compatibility

• BT Infinity Option 1 & Option 2 Compatible
• BT SIN 498 MCT Approved
• Support for G.INP & Vectoring
• ITU-T VDSL2 G.993.2
• ITU-T G.993.1, G.997.1
• Band Plan: G.998, G.997
• Annex A, Annex B, Annex C
• VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
• OLR, UPBO, DPBO Supported
• US0 Supported
• Loop Diagnostic Mode
• DSL Forum WT-114

Load Balance/Failover Features - Outbound Policy-Based Load-Balance to Direct Traffic Via:

• NAT or Routing
• WAN Interface
• LAN Interface
• Specific LAN Gateway
• VPN Tunnel
• IP-Based or Session-Based Load Balance Modes

• WAN Connection Fail-over
• BoD (Bandwidth on Demand)
• WAN1 PPPoE/PPPoA Fallback Account, used if the Primary Details are Unable to Establish a Working Connection
• Configurable Load-Balance Pool, Specify WAN Interfaces to Load Balance
• WAN Budget

Vigor 2862 ATM Protocols (DSL)

• RFC-2684/RFC-1483 Multiple Protocol over AAL5
• RFC-2516 PPP over Ethernet
• RFC-2364 PPP over AAL5
• PPPoE pass through LAN/WLAN
• PPPoE/PPPoA Relay
• Transparent Bridge for MPoA
• Multiple PVC Support for Triple Play Applications (up to 8 Simultaneous)
• Support for RFC4638 for MTU up to 1500

Wireless LAN Features

• 802.11n 2.4Ghz (2x2)
• Dual-Band Wireless Features (Vigor 2862Lac):802.11ac
• 4x4 Multi-User-MIMO (5Ghz)
• Up to 4 Spacial Streams
• TX Beam Forming
• 1733Mb/s Total Link Rate (5Ghz) + 300Mb/s (2.4Ghz)
• Dual-band (2.4/5Ghz) simultaneous wireless
• Band Steering
• Router-Assisted Client Mobility
• Extended - DFS Frequency Range
• Multiple SSID : Create up to 4 Virtual Wireless LANs (Independent or Joined)
• Packet Aggregation and Channel Bonding
• Optional Higher Gain or Directional Aerials Available
• Active Client List in Web Interface
• Wireless LAN Isolation (from VLAN groups and Wired Ethernet Interfaces)
• WPA2 Encryption
• Switchable Hidden SSID
• Restricted Access List for Clients (by MAC Address)
• Time Scheduling (WLAN Radio can be Disabled at Certain Times of Day)
• Time Scheduling for individual SSIDs

• Access Point Discovery
• WDS (Wireless Distribution system) for WLAN Bridging and Repeating
• 802.1x Radius Authentication
• Wireless VLAN
• Wireless Rate-Control
• Automatic Power Management
• 802.11e WMM (Wi-Fi Multimedia)
• Station Control, Limit Wireless Client Access Time per day
• Airtime Fairness
• Band Steering
• Wireless WAN mode for WAN2, Switchable with Ethernet (Wireless Models Only)

WAN Protocols (Ethernet)

• DHCP Client
• Static IP
• PPPoE
• PPTP
• BPA

Firewall & Security Features

CSM (Content Security Management):

• URL Keyword Filtering - Whitelist or Blacklist Specific Sites or Keywords in URLs
• Block Web sites by Category (e.g. Adult, Gambling etc. Subject to Subscription)
• Prevent Accessing of Websites by Using their Direct IP Address (thus URLs only)
• Blocking Automatic Download of Java Applets and ActiveX Controls
• Blocking of Website Cookies
• Block http Downloads of File Types - Binary Executable : .EXE / .COM / .BAT / .SCR / .PIF
• Compressed - .ZIP / .SIT / .ARC / .CAB/. ARJ / .RAR
• Multimedia - .MOV / .MP3 / .MPEG / .MPG / .WMV / .WAV / .RAM / .RA / .RM / .AVI / .AU

• Time Schedules for Enabling/Disabling the Restrictions
• Block Popular P2P (Peer-to-Peer) File Sharing Programs
• Block Instant Messaging Programs (e.g. IRC, Skype/Yahoo Messenger etc.)

• DNS Filter - Use DNS to Enforce Categorisation
• Web Portal
• Multi-NAT (32 WAN IPs per WAN1 & WAN2)
• DMZ Host
• DMZ Port (via LAN Port P1, Switchable)
• 40 Port Redirection Rules
• 40 Open Port Rules (10 Port Ranges per Rule)
• Policy-Based Firewall
• MAC Address Filter
• SPI ( Stateful Packet Inspection ) with new FlowTrack Mechanism
• DoS / DDoS Protection
• IP Address Anti-Spoofing
• E-Mail Alert and Logging via Syslog
• Bind IP to MAC Address
• User Management:Up to 200 Profiles
• Supports external authentication via LDAP or RADIUS
• Per User Bandwidth and Time Quota
• Schedule Control to Delete or Disable Account Automatically

Bandwidth Management

• Quality of Service (QoS)
• Guaranteed Bandwidth for VoIP
• Class-based Bandwidth Guarantee by User-Defined Traffic Categories
• Layer 2&3 (802.1p & TOS/DCSP)
• DiffServ Code Point Classifying
• 4-level Priority for each Direction (Inbound / Outbound)
• Bandwidth Borrowed
• App QoS - Classify traffic by Application

• Temporary (5 minute) Quick Blocking of any LAN Client
• Bandwidth Limit (Shared or Individual Limit)
• Smart Bandwidth Limitation (Triggered by Traffic / Session)
• Session Limit

Network Router Management

• Web-Based User Interface (HTTP / HTTPS)
• CLI ( Command Line Interface ) / Telnet / SSH
• Web Console - Access CLI through Web Interface
• Administration Access Control
• Brute Force Protection
• Configuration Backup / Restore
• Configuration Import from Vigor 2820, Vigor 2830 & Vigor 2850
• Built-in Diagnostic Function
• Firmware Upgrade via Web Interface, TFTP, FTP
• Logging via Syslog
• Supports SmartMonitor (up to 50 IPs monitored)
• SNMP v3 Management with MIB-II
• TR-069
• TR-104
• Access Point Management: Centrally Manage up to 20 DrayTek VigorAPs
• Switch Management: Centrally Manage up to 10 DrayTek Vigor Switches

VPN Facilities

• Up to 32 Concurrent VPN Tunnels (Incoming or Outgoing)
• Tunnelling Protocols:PPTP
• IPSec
• L2TP
• L2TP over IPSec
• DrayTek SSL
• GRE

IPSec Features

• Internet Key Exchange : IKEv1 (Main and Aggressive Mode) & IKEv2
• Security Protocols - AH Mode, ESP Mode
• DiffieHelman (DH) Groups:IKEv1 - 1,2,5,14, IKEv2 - 1,2,5,14,19,20,21

Encryption

• DES / 3DES (168bits)
• AES (128/192/256bits) - Hardware-Accelerated

Authentication - Hardware-Accelerated

• MD5
• SHA-1
• SHA-256

• IKE Authentication - Pre-Shared Key or X.509 Digital Signature
• DHCP over IPSec
• NAT-Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Port forwarding (Port Redirection, Open Ports) to remote clients connected via an IPsec LAN to LAN VPN

• SSL VPN for teleworkers - Up to 16 Simultaneous Users. Proxy or Tunnel
• LAN-to-LAN & Teleworker-to-LAN Connectivity
• MOTP (Mobile One Time Password) for two Factor Authentication (2FA)
• Virtual IP Mapping, Map a Remote IP Subnet/Range to Another Range to Resolve IP Subnet/Range Conflicts
• VPN Pass-Through

Network Features

• Port-Based VLAN (Inclusive/Exclusive Groups)
• 802.1q VLAN Tagging
• Port Mirroring
• 802.1X Port Authentication
• Multi Subnet DHCP Servers with DHCP Relay
• LAN Clients - Up to 1022 per Subnet (for Subnets 1-3)
• Custom DHCP Option Support
• Dynamic DNS
• DNSSEC Support
• DNS Transparent Proxy
• DNS Caching
• LAN DNS (supports CNAME)
• NTP Client (Synchronise Router Time)
• Call Scheduling (Enable/Trigger Internet Access by Time)
• RADIUS Client
• LDAP Client
• TACACS+ Client
• High Availability
• Internal RADIUS Server

• Microsoft™ UPnP Support
• Maximum MTU 1534
• Routing Protocols - Static Routing (30 Routes), RIP V2, RIPng for IPv6

Operating Requirements

• Rack Mountable (Optional Vigor RM1 Mounting Bracket Required)
• Wall Mountable
• Temperature Operating - 0 °C ~ 45 °C
• Storage : -25 °C ~ 70 °C
• Humidity 10% ~ 90% (Non-Condensing)
• Power Consumption: 27 Watt Max.
• Dimensions: L240.96 * W165.07 * H43.96 ( mm )
• Operating Power - DC 12V (via external PSU, supplied)
• Warranty - Two (2) Years RTB
• Power Requirements - 220-240VAC
