Product Specifications of the DrayTek Vigor 2762N Wireless ADSL/VDSL Modem Router with Firewall

This Product is End of Life

Please Click Here for Our Available Routers

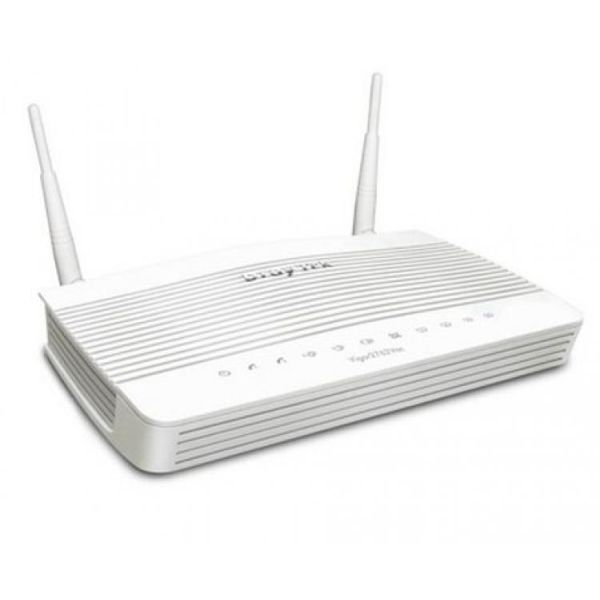

DrayTek Vigor 2762N Wireless ADSL/VDSL Modem Router with Firewall

The Vigor 2762 Series of Routers support VDSL2, ADSL, 3G/4G and Ethernet Based Broadband and are the ideal Home Office Firewall Router. Providing connectivity to PC's or other Internet connected devices such as Laptops, Tablets, Games Consoles or Smartphones via its 4 built in Gigabit Ethernet Ports or Using Wireless LAN.

The Firewall helps protect your network from external threats, as well as the Vigor 2762's built in Content Filtering which gives you control over what and when your local users can access or download. The Vigor 2762 Series can alternatively connect to an Ethernet Internet Connection such as cable or a fibre modem, e.g Virgin Media instead of connecting to a ADSL/VDSL line. Compatible 3G & 4G (LTE) modems can optionally be added to the USB port to provide back up or main internet connectivity without any fixed line.

The DrayTek Vigor 2762ac adds 802.11ac Dual Band Wireless to your network, with up to 866Mbps on the 5GHz 11ac band and up to 300Mbps on the 2.4GHz band allowing devices access to the internet from around the property. The 2762N operates simultaneously in both the 2.4GHz an less congested 5GHz band so users devices can connect to either, Band Steering ensures that each device connecting is guided to its most suitable wireless band.

Robust and Comprehensive Firewall

DrayTek Routers take security seriously, the firewall protects against attacks, including DoS (Denial of Service) attacks, IP based attacks and attacks by any unauthorised remote systems. The firewall allows even more setup flexibility, enabling users to create combinations of firewall rules and content filtering to suit a small office or home environment by applying Content Filtering to the whole network, only specified devices or just to the network that guests can connect to.

Ideal Firewall Router for Fibre Broadband

ISP broadband connections offered by ISP's are referred to as Fibre Broadband, however they are actually VDSL based connections in many cases, which run over a phone line. The phone line's twisted pair telephone cable runs from the users premises to a street cabinet, usually green boxes with an Openreach logo on them, and these contain a VDSL MSAN (Multi-Service Access Node) that connects to fibre infrastructure, this runs to the local exchange and then onto the ISP's core network.

Web Content Filtering

Vigor's 2762 Series has content control features, allowing users to set restrictions on website access, blocking downloads of certain file or data types with whitelists and blacklists blocking IM/P2P applications or other potentially harmful content. Restrictions can be per PC, per user or universal.

Sites can also be blocked using HTTPS/SSL where URLs are encrypted and normal routers are not able to block. Using the Global View service, whole categories of websites can be blocked such as adult sites or gambling, subject to an annual subscription. A 30 day free trial is included with the Vigor 2762N.

4G Cellular Data & Network Attached Storage (NAS)

The 2762N has two USB ports that can be used for 3G/4G Modems, USB storage or a printer for shared access. A USB 3G/4G Modem can be connected to the Vigor 2762N and the cellular networks can be used (Three, Virgin, O2, BT, EE and Vodafone) as your internet connectivity that can be your only connection or the router can switch to 4G incase of ADSL/VDSL outages ensuring that you are always connected. Click here to see the latest list of supported 3G & 4G Modems, the list is continuously updated as new Modem models are introduced -

The 2762N can be used as a Network Attached Storage (NAS) with Windows networking (SMB) & FTP connectivity, allowing Apple, Android, Windows and Linux devices to easily access the routers storage. Each user can also upload files, and have their own login and read only or read-write FTP access to a preset directory.

Specifications & Physical Interfaces

LAN Ports Switch

  • 4 x Gigabit Ethernet (1000Mb/s) Ports
  • LAN Port 4 Switchable with WAN2

WAN Ports

  • WAN1 - ADSL/VDSL, RJ11
  • WAN2 - Gigabit Ethernet (1000Mb/s), Ethernet
  • WAN3 - 3G/4G Modem (Not Supplied) Via USB Port


  • Firewall - Up to 300Mb/s max
  • IPSec VPN - Up to 60 Mb/s max
  • NAT Sessions - 50,000

Wireless LAN Features

  • 802.11g/b/n and 802.11ac (Vigor 2762ac only)
  • Backward Compatibility for 802.11b/g
  • Wireless Features on Vigor 2762ac:
  • 802.11a
  • 802.11ac (5Ghz)
  • 2x2 SU-Mimo (5Ghz)
  • Up to 2 Spatial Streams
  • 866Mb/s Link Rate (5Ghz) + 300Mb/s (2.4Ghz)
  • Dual-band (2.4/5Ghz) Simultaneous Wireless
  • Extended DFS Frequency Range
  • Multiple SSID - Create up to 4 Virtual Wireless LANs Independent or Joined)
  • Switchable Hidden SSID
  • Restricted Access List for Clients (by MAC Address)
  • Time Scheduling (WLAN Radio can be Disabled at Certain Times of Day)
  • Time Scheduling for Individual SSIDs NEW!
  • Active Client List in Web Interface
  • Wireless LAN Isolation (from VLAN Groups and Wired Ethernet Interfaces)
  • Station Control, Limit Wireless Client Access Time Per Day
  • Wireless Rate-Control
  • Airtime Fairness
  • Band Steering
  • Wireless Router-Assisted Client Mobility
  • 64/128-bit WEP Encryption
  • WPA/WPA2 Encryption
  • Packet Aggregation and Channel Bonding
  • Access Point Discovery
  • WDS (Wireless Distribution system) for WLAN Bridging and Repeating
  • Wireless LAN On/Off button
  • 802.11e WMM (Wi-Fi Multimedia)

Firewall and Security Features

  • CSM (Content Security Management):URL Keyword Filtering - Whitelist or Blacklist Specific Sites or Keywords in URLs
  • Block Websites by Category (e.g. Adult, Gambling etc. Subject to Subscription)
  • Prevent Accessing of Websites by using their Direct IP Address (thus URLs only)
  • Blocking Automatic Download of Java Applets and ActiveX Controls
  • Blocking of Website Cookies
  • Block http Downloads of File Types :Binary Executable : .EXE / .COM / .BAT / .SCR / .PIF
  • Compressed - .ZIP / .SIT / .ARC / .CAB/. ARJ / .RAR
  • Multimedia - .MOV / .MP3 / .MPEG / .MPG / .WMV / .WAV / .RAM / .RA / .RM / .AVI / .AU
  • Time Schedules for Enabling/Disabling the Restrictions
  • Block Popular P2P (Peer-to-Peer) File Sharing Programs
  • Block Instant Messaging Programs (e.g. IRC, Skype/Yahoo Messenger etc.)
  • DNS Filter - Use DNS to Enforce Categorisation
  • DMZ Host
  • 40 Port Redirection Rules
  • 40 Open Port rules (10 Port Ranges Per Rule)
  • Policy-Based Firewall
  • MAC Address Filter
  • SPI ( Stateful Packet Inspection ) with FlowTrack Mechanism
  • DoS / DDoS Protection
  • IP Address Anti-Spoofing
  • E-Mail Alert and Logging via Syslog
  • Bind IP to MAC Address

Bandwidth Management

  • Temporary (5 Minute) Quick Blocking of any LAN Client
  • Bandwidth Limit (Shared or Individual limit)
  • Smart Bandwidth Limitation (Triggered by Traffic / Session)
  • Session Limit

Quality of Service (QoS)

  • Guaranteed Bandwidth for VoIP
  • Class-Based Bandwidth Guarantee by User-Defined Traffic Categories
  • Layer 2&3 (802.1p & TOS/DCSP)
  • DiffServ Code Point Classifying
  • 4-level Priority for Each Direction (Inbound / Outbound)
  • Bandwidth Borrowing
  • App QoS: Classify traffic by Application
  • Automatic Prioritisation of SIP/RTP Voice over IP (VoIP)

LAN to LAN Dial Out VPN Facilities

  • 2 Concurrent active VPN Tunnels
  • Tunnelling Protocols:PPTP
  • IPSec
  • L2TP
  • L2TP over IPSec
  • DrayTek SSL

IPSEC Features

  • Internet Key Exchange : IKEv1 (Main and Aggressive mode) & IKEv2
  • Security Protocols : AH mode, ESP Mode
  • Diffie Hellman (DH) Groups:IKEv1 : 1,2,5,14
  • IKEv2 : 1,2,5,14,19,20,21


  • DES / 3DES (168bits)
  • AES (128/192/256bits) - Hardware-Accelerated

Authentication - Hardware Accelerated

  • MD5
  • SHA-1
  • SHA-256
  • IKE Authentication - Pre-shared Key or X.509 Digital Signature
  • DHCP over IPSec
  • NAT-Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Virtual IP Mapping, Map a Remote IP Subnet/range to Another Range to Resolve IP Subnet/Range Conflicts
  • VPN Pass Through

Teleworker Dial In SSL VPN Facilities

  • 2 Concurrent active VPN Tunnels
  • Tunnelling Protocols - DrayTek SSL
  • MOTP (Mobile One Time Password) for two factor authentication (2FA)
  • Free software available for Windows, Android, macOS & iOS

Network Features

  • 2 LAN (IPv4 & IPv6) Subnets
  • LAN Clients - Up to 253 Per Subnet
  • Multi Subnet DHCP Servers with DHCP Relay
  • Port-Based VLAN (Inclusive/Exclusive Groups)
  • 802.1q VLAN Tagging
  • Custom DHCP Option Support
  • Port Mirroring
  • Dynamic DNS
  • DNSSEC Support
  • DNS Transparent Proxy
  • DNS Caching
  • LAN DNS (Supports CNAME)
  • NTP Client (Synchronise Router Time)
  • Microsoft™ UPnP Support
  • Maximum MTU 1534

Network/Router Management

  • Web-Based User Interface (HTTP / HTTPS)
  • CLI ( Command Line Interface ) / Telnet / SSH
  • Web Console - Access CLI through Web Interface
  • Administration Access Control
  • Configuration Backup / Restore
  • Configuration Import from Vigor 2760
  • Built-in Diagnostic Function
  • Firmware Upgrade via Web Interface, TFTP, VigorACS
  • Logging via Syslog
  • SNMP v2 & v3 Management with MIB-II
  • TR-069
  • TR-104
  • Access Point Management - Centrally Manage 2 DrayTek VigorAP Wireless Access Points

WAN Protocols

  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP/L2TP (Ethernet WAN Only)

ADSL & VDSL Compatibility

  • BT Infinity Option 1 & Option 2 Compatible
  • BT SIN 498

ADSL Standards

  • ANSI T1.413 Issue2
  • ITU-T G.992.1 G.dmt (ADSL)
  • ITU-T G.992.2 G.lite
  • ITU-T G.992.3 ADSL2
  • ITU-T G.992.5 ADSL2+
  • Annex L (READSL)
  • Annex A
  • Annex M
  • ANFP Issue 3 Compliant/Certified (for Annex A & Annex M)
  • DSL Forum : TR-048/67 & TR-100

VDSL Standards

  • ITU-T VDSL2 G.993.2
  • ITU-T G.993.1, G.997.1
  • Band Plan: G.998, G.997
  • Annex A, Annex B, Annex C
  • VDSL2 Profile: 8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
  • OLR, UPBO, DPBO Supported
  • US0 Supported
  • Loop Diagnostic Mode
  • DSL Forum WT-114

ATM Protocols

  • RFC-2684/RFC-1483 Multiple Protocol over AAL5
  • RFC-2516 PPP over Ethernet
  • RFC-2364 PPP over AAL5
  • PPPoE Pass Through LAN/WLAN
  • PPPoE/PPPoA Relay
  • Transparent Bridge for MPoA
  • Multiple PVC Support for Triple Play Applications (up to 8 Simultaneous)
  • Support for RFC4638 for MTU up to 1500

For Further Specifications/Product Information please click here -

Warranty2 Years
Modem or RouterCombo Modem & Router
Connection typeADSL Broadband, VDSL Fibre Broadband
WiFi / EthernetEthernet (wired), WiFi 2.4 Ghz, WiFi 5 Ghz
Please Note
Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
