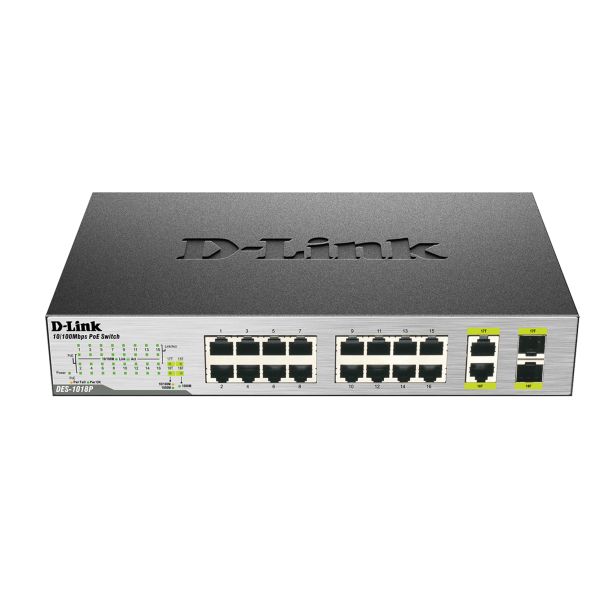

D-Link DES-1018P 18-Port Fast Ethernet PoE Switches with 2 Gigabit Uplink Ports - New

This Product is End of Life

Please Click here for our Available Hubs & Switches

The DES-1018P/1018 MP Series Fast Ethernet Unmanaged Switches consists of:

• DES-1018P: 16-Port Fast Ethernet Unmanaged PoE Switch with 2 Gigabit Ports (8 x PoE ports, fanless)
• DES-1018 MP: 16-Port Fast Ethernet Unmanaged Max PoE Switch with 2 Gigabit Ports (16 x PoE ports, fanless)

Functions & Features

Features

Versatile Connectivity

• DES-1018P - 8 x 10/100 Mbps PoE ports and 8 x 10/100 Mbps ports
• DES-1018 MP - 16 x 10/100 Mbps PoE ports
• 2 x Gigabit combo uplink ports

Reliability

• 2 kV surge protection for PoE ports¹
• IEEE 802.3x flow control

Easy Setup

• Plug and play installation
• Auto MDI/MDIX crossover for all ports

Green Features

• IEEE 802.3az Energy Efficient Ethernet
• Smart fan (DES-1018 MP only)
• RoHS compliant

Technical Specifications

General

Device Interfaces

• DES-1018P
  • 8 10/100 Mbps PoE ports
  • 8 10/100 Mbps ports
  • 2 10/100/1000BASE-T/SFP combo ports
• DES-1018MP
  • 16 10/100 Mbps PoE ports
  • 2 10/100/1000BASE-T/SFP combo ports

Standards

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x flow control
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Switching Fabric

• 1.6 Gbps switching fabric

64 Byte Max. Forwarding Rate

• 5.36 Mpps

Transmission Method

• Store-and-forward

MAC Address Table

• 8k

Packet Buffer

• 384 Kbytes

Media Interface Exchange

• Auto MDI/MDIX adjustment for all ports

LED Indicators

• Per unit: Power
• Per port: Activity / Link and Speed
• Per PoE port: Power fail, Power OK

Fan

• DES-1018P - 1 fan
• DES-1018MP - 1 smart fan

PoE Standard

• IEEE 802.3af

PoE Ports

• DES-1018P - ports 1~8 up to 15.4 W per port
• DES-1018MP - ports 1~16 up to 15.4 W per port

PoE Power Budget

• DES-1018P 80 watts
• DES-1018MP - 246.4 watts

Surge Protection

• DES-1018P - ports 1~8 up to 2 kV
• DES-1018MP - ports 1~16 up to 2 kV

Physical

Dimensions

• 280 x 210 x 44 mm (11” x 8.3” x 1.7”)

Weight

• DES-1018P - 1.78 kg (3.92 lbs)
• DES-1018MP - 2.15 kg (4.74 lbs)

Power

• Internal AC input: 100 ~ 240 VAC, 50~60 Hz

Power Consumption

• DES-1018P
  • Maximum Power Consumption: 102.6 watts (PoE on), 14.3 watts (PoE off)
  • Standby Power Consumption: 7.1 W/100 V, 8.3 W/240 V
• DES-1018MP
  • Maximum Power Consumption: 301.6 watts (PoE on), 15.6 watts (PoE off)
  • Standby Power Consumption: 9.3 W/100 V, 10.5 W/240 V

Temperature

• Operating: 0 to 40 ˚C (32 to 104 ˚F)
• Storage: -40 to 70 ˚C (-40 to 158 ˚F)

Humidity

• Operating: 0% to 95% RH non-condensing
• Storage: 0% to 95% RH non-condensing

MTBF

• DES-1018P - 395,864 hours
• DES-1018MP - 361,802 hours

Heat Dissipation

• DES-1018P - 349.9 BTU/h
• DES-1018MP - 1029.5 BTU/h

Certifications

• FCC Class A
• CE
• CCC
• RoHS
• VCCI
• BSMI
• C-Tick

Safety

• CB
• cUL
• LVD
• CCC
• BSMI
