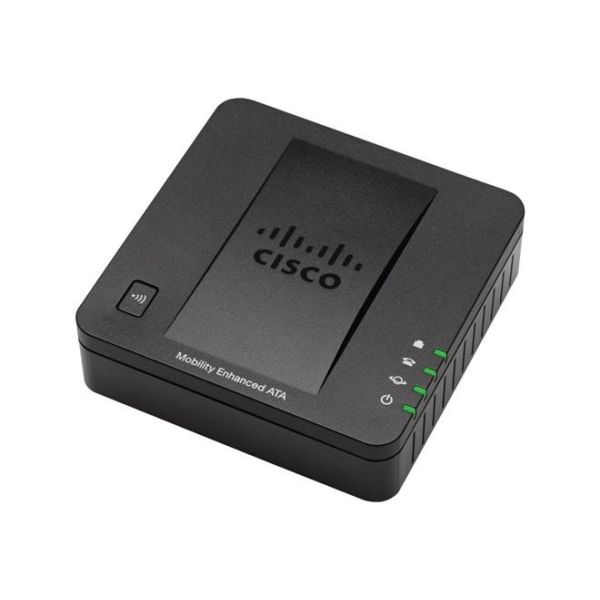

Cisco ATA190 Analog Telephone Adapter

The Cisco® ATA 190 Analog Telephone Adaptor is a handset-to-Ethernet adaptor that turns traditional telephone devices into IP devices. Customers can take advantage of the many new and exciting IP telephony applications by connecting their analog devices to Cisco ATAs.

The Cisco ATA products are standards-based communication devices that deliver true, next-generation voice-over-IP (VoIP) terminations to businesses and residences worldwide. The Cisco ATA 190:

• Protects existing telephone investment: The Cisco ATA 190 supports two voice ports (RJ-11 phone ports), each with its own independent telephone number, and a single RJ-45 10/100 BASE-T Ethernet port. Each port supports either voice calls or fax sessions, and both ports can be used simultaneously. This adaptor can use existing Ethernet LAN deployments.
• Is cost-effective: The Cisco ATA 190 helps customers turn their analog phone devices into IP devices cost-effectively and is the preferred solution to address the needs of customers who connect to enterprise networks, small-office environments, or the emerging VoIP managed voice services and local services market.

Enterprise customers can use the Cisco ATA 190 to connect analog phones and fax machines to their VoIP network. Service providers are taking advantage of emerging telephony applications and the ease of deploying second-line services using the Cisco ATA solutions.

Features:

• Configuration as per Cisco endpoints devices
• Autoprovisioning with Trivial File Tansfer Protocol
• Automatic assignment of IP address, network routing IPand subnet mask using Dynamic Host Ponfiguration Protocol (DHCP)
• Touch-tone telephone keypad configuration with voice prompt
• Administration password to protect configuration and access
• Remote upgrades through network

Voice Quality

• Advanced preprocessing to optimize full-duplex voice compression
• High-performance line-echo cancellation to eliminate noise and echo
• Voice activity detection (VAD) and comfort noise generation (CNG) to save bandwidth by delivering voice, not silence; VAD is configurable, and the ATA 190 determines whether CNG should be turned on dynamically
• Dynamic network monitoring to reduce jitter artifacts such as packet loss

Signaling Protocol

• Session Initiation Protocol (SIP) on the Cisco line side

Security

• Secure Real-Time Transfer Protocol (SRTP) and Transport Layer Security (TLS) over SIP

Fax Support

• T38 fax support

Form Factor

• Fits in most environments

Physical Specifications

Power

• Power supply: Universal AC power supply 100 and 240V
• DC input voltage: 5 VDC at 2.0A maximum power consumption: 5W

Noise Level

• Less than 34 dBA at 3 ft (0.91m)

Connectors

• 2 RJ-11

Thermal

• 32 to 113°F (0 to 45°C)
• -77 to 158°F (-25 to 70°C)

Humidity

• Operating humidity: 0 to 90% noncondensing
• Storage humidity: 10 to 90% noncondensing

Physical Dimensions

• (H x W x D) and weight 3.98 x 3.98 x 1.10 in. (101 x 101 x 28 mm)
• Unit weight: 5.40 oz (153g)

Compliance

• FCC (Part 15 Class B), CE, ICES-003, A-Tick certification, Restriction of Hazardous Substances (RoHS), and UL

Software Specifications

Configurable tones: Configurable for two sets of frequencies and single set of on/off cadence
Dual-tone multi-frequency: (DTMF) DTMF tone detection and generation

Fax

• Fax pass-through and T.38 fax relay mode
• Enhanced fax pass-through is supported on the Cisco ATA. Fax transmission rate is up to 14 kbps in T38 mode and 34 kbps in fax pass-through mode. The rate is not configurable, and the Cisco ATA 190 autonegotiates and chooses the maximum rate.

Line-Echo Cancellation

• Echo canceller for each port
• Double-talk detection

Out-of-band DTMF

• RFC 2833
• Note: You cannot transmit RFC 2833 and in-band signaling simultaneously.

Configuration

• DHCP (RFC 2131)
• Web configuration through built-in web server
• Touch-tone phone keypad configuration with voice prompt
• Basic boot configuration (RFC 1350 TFTP Profiling) by touch-tone phone keypad or built-in web server
• Dial-plan configuration through Cisco UCM
• Cisco Discovery Protocol through Cisco UCM

Security

• Encrypted TFTP configuration files

Voice Coders-Decoders (Codecs)

• G.729A and G.729AB
• G.711 a-law
• G.711 mu-law

Voice Features

• VAD
• CNG
• Dynamic jitter buffer (adaptive)

VoIP Protocols:

• SIP
