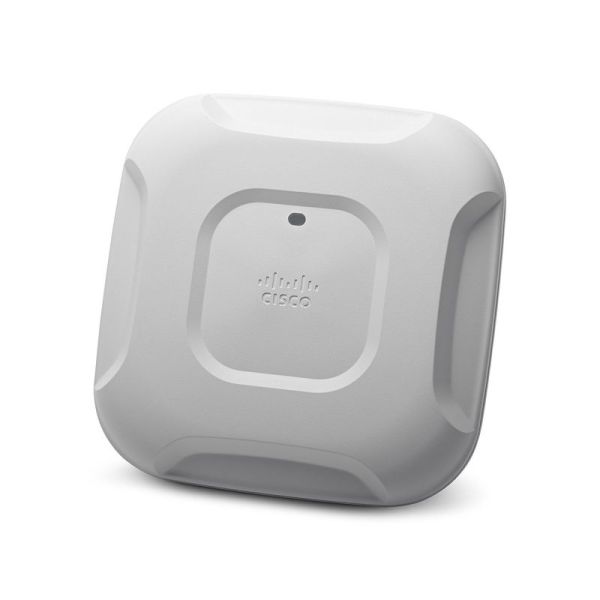

Cisco Aironet 3702i Controller-Based - Radio Access Point

Cisco Aironet 3702i Controller-Based - Radio Access Point

With the industry’s only enterprise class 4x4 MIMO, three-spatial-stream access points that support the IEEE’s new 802.11ac specification, the Cisco® Aironet® 3700 Series delivers industry-leading performance and a High Density Experience (HD Experience) for both the enterprise and service provider markets. The Aironet 3700 Series extends support to a new generation of Wi-Fi clients, such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac support.

In its first implementation, 802.11ac wave 1 provides a rate of up to 1.3 Gbps, roughly triple the rates offered by today’s high-end 802.11n access points. This provides the necessary foundation for enterprise and service provider networks alike to stay ahead of the performance and bandwidth expectations and needs of their wireless users.

Due to its convenience, wireless access is increasingly the preferred form of network connectivity for corporate users. Along with this shift, there is an expectation that wireless should not slow down user’s day-to-day work, but should enable a high performance experience while allowing users to move freely around the corporate environment.

Specifications

• Product Description - Cisco Aironet 3720i Controller Based Radio Access Point
• Device Type - Radio Access Point
• Form Factor - External - Indoor
• Flash Memory - 64MB
• Ram - 512MB
• Data Link Protocol - IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
• Frequency Band - 2.4 GHz, 5 GHz
• Power Over Ethernet (PoE) Supported - PoE+
• Dimensions - 22.1 cm x 22.1 cm x 5.4 cm
• Weight - 1.13kg

General Detail

• Device Type - Radio Access Point
• Width - 22.1cm
• Depth - 22.1cm
• Height - 5.4cm
• Weight - 1.13kg

Networking

• Form Factor - External
• Connectivity - Wireless
• Data Transfer Rate - 1.3Gbps
• Line Coding Format - CCK
• Status Indicators- Status
• Frequency Band - 2.4 GHz, 5 GHz
• Compliant Standards - IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac
• Encryption Algorithm - AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2
• Authentication Method - MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST

Features

• Auto-Sensing Per Device
• Wi-Fi Multimedia (WMM) Support
• Clean Air Technology
• Maximum Ratio Combining (MRC)
• ClientLink 3.0 Technology
• 4T4R MIMO Technology
