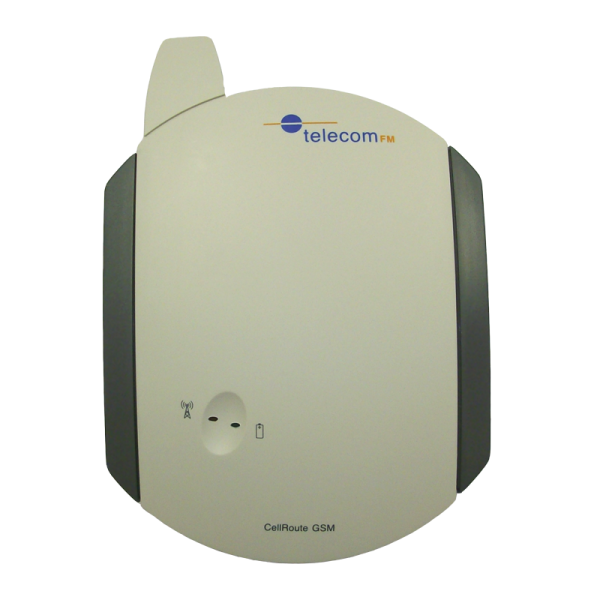

Burnside TelecomFM CellRoute-GPRS Fixed Wireless Terminal

CellRoute-GPRS has been developed to enable major network operators to provide Fixed Wireless Access to emerging markets around the world. In countries where having a fixed line is either an expensive option or network infrastructure does not exist, the CellRoute can provide fixed line functionality over the GSM network. CellRoute-GPRS provides users with high quality voice using EFR (Enhanced Full Rate) codecs and has a data link rate of up to 85.6kbps using GPRS for Email and Internet access. The CellRoute-GPRS can be self-installed by the end user, making the provisioning cycle simple and reducing costs for the network operator. The unit has an integrated lithium battery to cater for mains power outages. 11 hours of standby time is provided with a talk time of up to 2 hours.

Telephoney Interface

• Call Control DTMF
• Line Voltage 48V on hook (36V on mains fail)
• Loop Current 40mA off hook (20mA on mains fail)
• Line impedance 600-ohm complex
• Ring Voltage 70Vrms
• Ring Load REN 4
• CLIP Bellcore FSK

Features Overview

• High Ringer Equivalence POTS Interface
• supports up to 4 additional extensions
• Highly compatible POTS & PABX interface
• Integral Battery Back-up
• Bellcore Caller Line ID Presentation
• GSM Network features supported (subject
• to network support)
• Selectable Dial tone and Ring cadences
• RS232 Data Port for emails/web and PC
• faxes.
• SIM lock
• Network lock
• Remote Software Upgrades
• Off-hook Howler
• External Antenna facility
• SIM Card 3V

GSM Interface

• GSM Module: Cinterion MC55i
• Bands GSM: 850 / 900 / 1800 / 1900 MHz
• GSM Phase 2/2+

Transmit Power

• Class 4 (2W) for EGSM 850MHz
• Class 4 (2W) for E-GSM 900MHz
• Class 1 (1W) for GSM 1800MHz
• Class 1 (1W) for GSM 1900MHz

Speech Codecs

• Half Rate (ETS 06.20)
• Full Rate (ETS 06.10)
• Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80)
• Adaptive multi-rate (AMR)

Data Rate

• Up to 85.6 kbps via GPRS

Antenna

• Integral Omni directional Antenna with SMA connector for external antenna option

Physical Interfaces

• Telephone Analogue: RJ11 or BT603 option
• Data Port: RS232 / RJ45 with DB-9 converter
• GSM Antenna: Gold plated SMA male
• SIM Card: 3V Small card retained under rear panel
• Indication: 2 x LED indication for battery / Transmission Status

Approvals

• CE Certification to R & TTE directive 1999/S/SEC
• GSM Certifications:ETS 300 607-1 Digital Cellular Telecommunications system,EN 301 419-1 Global System for Mobile communication,ETS 300 342-1 Radio Equipment and Systems

Power Supplies

• Primary: 110-240Vac @ 47-63Hz
• Secondary: 3.7V 1700mAh Lithium rechargeable battery with auto switch over on mains failure
• Performance: 11 hours Standby time (subject to humidity and temperature)
• Up to 2 hours Talk time (subject to humidity and temperature)

Features:

• High ringer equivalence POTS interface supports up to 4 extensions
• Highly compatible POTS & PABX interfaces
• integral battery back up
• bellcore caller line ID presentation
• GSM network features supported (subject to network)
• Selectable dial tone and ring cadences
• RS232 data port for emails/web and PC faxes
• SIM lock
• Network lock
• remote software upgrades
• Off-hook howler
• External antenna facility

Physical Specification

• Height 150 mm
• Width 122 mm
• Depth 42 mm
• Weight 460gm
