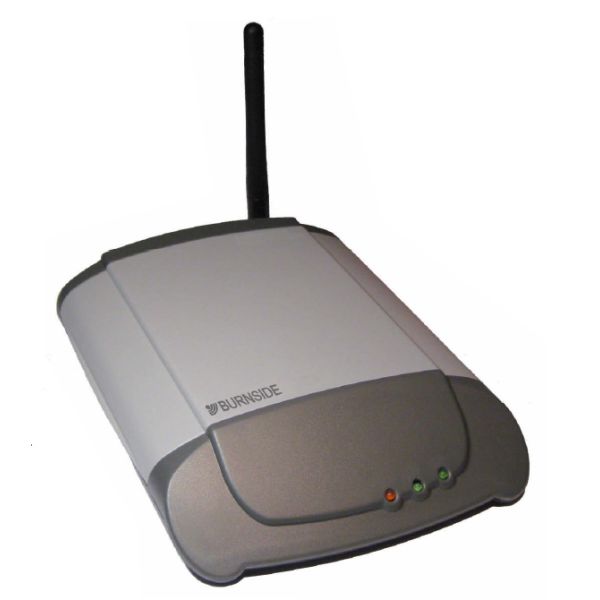

Burnside T360 Fixed Cellular Terminal With Call Forwarding

Our latest terminal provides instant access to GSM voice and data communications within coverage of a cellular wireless network, without the delay and expense associated with connection to landline networks. Simply insert an ordinary mobile phone SIM card and start using the terminal.

With its superior voice quality, low cost, compact size and flexible power supplies, including an internal battery, the Burnside T360 is designed to operate in a wide range of installation environments. An internal lithium polymer battery provides uninterruptible service for up to 60 hours standby and 2 hours talk-time in the event of a mains power failure.

When installed in the most demanding locations, its advanced configurable features make the Burnside T360 a product of choice for all applications. The unit includes a USB data interface to support Internet access, e-mail and PC fax, and can be desk or wall mounted.

Features

• High performance, high quality configurable fixed cellular terminal
• Quadband GSM/GPRS for phone, SMS and Internet connections
• Call forwarding to another telephone number
• Easier and quicker to install, offering lower call costs than landlines
• Energy efficient for lower running cost and green philosophy
• Superior voice quality
• Optional call progress announcements (CPA)
• CLI (Caller Display) information forwarded to a connected telephone
• Uninterruptible power supply provides constant availability
• FOTA (Firmware Over The Air) update, also CPA prompts OTA
• Monicare™ option for monitoring and configuration from web portal
• USB connection supports PC-based applications
• Integral wall mounting and Kensington™ Lock port for safety and security

Technical Specification

• GSM Bands: Quad-band GSM phase 2/2+ 850/900/1800/1900 MHz
• Data Communication: GPRS multi-slot class 10 @ max 86kbps via USB2
• SMS Messaging: Point to point MO and AT SMS, Text and PDU Mode
• Fax Data: Group 3, Class 2, Class 1
• Speech Communication: Codec for HR, FR, EFR and AMR, echo cancellation and noise reduction features
• Configuration: May be programmed by dial codes and SMS commands:
• - Automatic one-number dial
• - Restrict call time (up to 10 mins)
• - Enable/disable incoming calls
• - Kewlstart Asterisk PBX compatibility
• In-call Features: Recall (flash hook) with keycodes supports call waiting, multi-party calls and explicit call transfer
• Telephone Interface:
• - Connector: RJ11 (UK kits include BT plug adapter)
• - Any type of corded or cordless touch tone DTMF phone
• - DC loop current 25mA
• - Ringing Signal 25Hz sinusoidal 60V RMS
• - Choice of call progress tone cadences
• - Volume Control
• - Ringing load 3 REN
• - CLI sent to phone with time and date: ETSI/UK, ETSI DTMF, Bellcore
• Indicators:
• - 3 x LEDs: Battery Charging, Battery Low, Searching, PIN, PUK
• - Weak Signal, Incoming Call, Call in Progress, Fault
• Antenna 1/4 Wave 90° articulated stub or Magnetic Base 2m leaded Connector: 50 ohm SMA male
• Power:
• - DC voltage via micro USB: 5VDC
• - Standby: 0.1W, On call: 1.9W average
• - Supplied AC adaptor 100 - 240VAC 50-60Hz
• - UK and European versions available
• Battery Backup:
• - Internal and exchangeable Lithium Polymer 3.7VDC 1100mAH battery
• - Up to 60 hours standby and up to 2 hours talk-time
• Case: Top cover removable to access battery and SIM
• Temperature Range:
• - Normal Operation: -20°C to +40°C
• - Charging: 0°C to +40°C
• - Storage: -40°C to +55°C
• Approvals: R&TTE, FCC, UL, IC, GCF, PTCRB, CE, local approvals,

Weight & Dimensions

• Weight: 411g
• Dimensions: 125 x 165 x 35mm

Typical Applications

• Call centres
• Telecare and domestic alarms
• Mobile Network Operators
• Remote communications
• Marine - boating and yachting
• Facilities management
• Exhibitions and events
• Temporary communications
