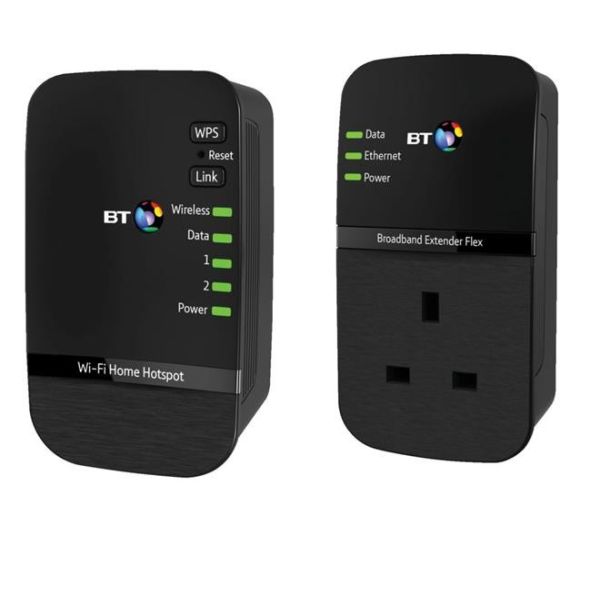

BT Wi-fi Hotspot Kit - 500

The Wi-Fi Home Hotspot 500 Kit offers high performance Homeplug powerline adaptor and a Wi-Fi Home Hotspot designed to increase the range of your broadband in the home. Use your home's power sockets to create a secure Wi-Fi Hotspot. Ideal for streaming HD / 3D TV or online gaming via an ethernet cable. Extend your broadband to any wired or wireless device in the house.

Features

• Uses your home’s electrical wiring to extend your broadband network anywhere in the house
• Simple push-button Wi-Fi connection set-up with hotspot
• Works with all broadband providers
• Two Ethernet ports for multiple wired devices
• Link with other HomePlug AV powerline adaptors
• N300 wireless technology
• AV500 powerline technology
• Compatible with AV200 technology devices
• Up to 500 Mbps for smooth multiple HD / 3D streaming
• Secure wireless network – no configuration necessary
• Pass-through socket
• Works out of the box

Specifications

• System requirements: Works with any operating system
• Other features:
• - Guest Hotspot with its own key
• - Web configuration interface
• - Easy pull-out wireless settings card
• Security: Hotspot:
• - WEP 128/64 (40) bit open, WPA (TKIP), WPA2 (AES), WPA+WPA2
• - Extender Flex: 128 bit AES
• Standards:
• - Hotspot: 802.11b/g/n (2.5GHz)
• - Extender Flex: Homeplug AV
• Transmission speed:
• - Hotspot: 300 Mbps
• - Extender Flex: 500 Mbps
• Power Supply: 230V ± 15%, 50Hz ± 3%
• Lights:
• - Hotspot: Wireless (Red & Green), Power, Data, Ethernet 1-2 (Green)
• - Extender Flex: Power, Ethernet (Green) Data (Tri-colour)
• Buttons: Hotspot: Power (On/Off), WPS, Link
• Reset (Pinhole) : Extender Flex: Link
• Ports: Hotspot:
• - 2 x RJ45 (IEEE 802.3 10/100 Mbps)
• - Extender Flex: RJ45 (IEEE 802.3 10/100Mbps)
• Max HomePlug Nodes: 16
• Environment:
• - Operating Temp: 0 to 40ºC
• - Operating Humidity: 10% to 85%
• Power consumption:
• - Hotspot: 6.5W Operation
• - Extender Flex: 2.7 W Operation, 1.6 W Idle, 0.34 W Power saving mode
• Weight & dimensions:
• - Hotspot: 193 g, 11.65 x 6.69 x 8.15 cm
• - Extender Flex: 201 g, 12.6 x 6.6 x 7.8 cm

Package content

• Wi-Fi Home Hotspot 500
• Broadband Extender Flex 500
• Ethernet Cable
• Quick Start Guide
