Alcatel Lucent 8232 DECT Handset - New

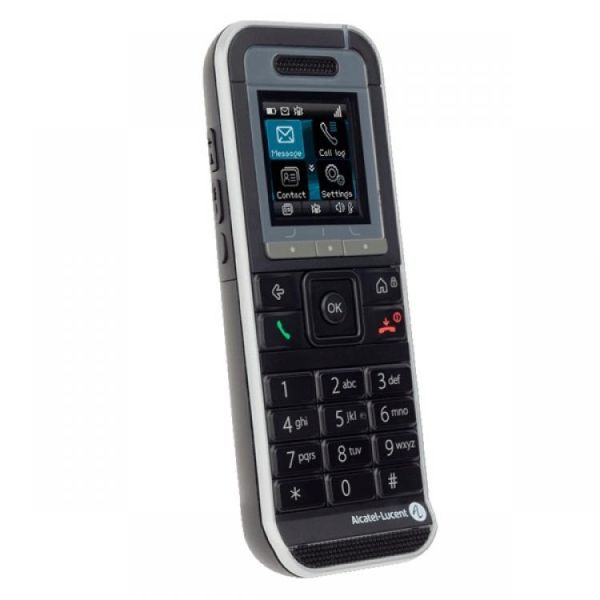

Alcatel Lucent 8232 DECT Handset

The Alcatel-Lucent 8232 DECT Handset offers easy to use, cost effective and reliable voice communication, providing a convenient and practical solution for basic personal mobility needs of most business environments. Offering enhanced usability and compatibility with existing Alcatel-Lucent DECT Base Stations. The Alcatel-Lucent 8232 DECT Handset also provides all of the Alcatel-Lucent communication servers value added voice services (Such as Dial by Name and Multiline Management), that Alcatel-Lucent fixed desk phones support.

Features

• Lightweight, Ergonomic Design and Intuitive Operation
• Colour Display - 1.4" 65K Colours, TFT 128 x 128 Pixels
• Alcatel-Lucent Telephony Protocol (AGAP)
• Keypad and Display Backlight
• Handsfree, Microphone Mute and Vibrate Modes
• Headset Jack (3.5mm)
• Antenna Diversity
• Direct Micro USB Charging
• Spring Loaded Belt Clip
• **Handset Only - Alcatel 8232 DECT Handset Charging Cradle Available Separately**

Click here for the Alcatel 8232 DECT Handset Desktop Charging Cradle

Benefits

• Compatibility with Deployed Alcatel-Lucent Base Stations Provides Infrastructure Investment Protection
• Provides Reliability with Long Battery Life
• Low Power Mode (50mW) Makes it Suitable for Demanding Environments
• Green - Economy Mode Uses Automatic Low Radio Emission Power (25 mW Peak)
• Simplifies Business Inventory by Offering a Single Product, Operational Worldwide
• Excellent Voice Quality and Business Telephony Features Improve User Responsiveness and Business Productivity
• IP-DECT Connectivity
• Supports Large OXE Campus Configurations

Technical Specifications:

Detailed Features

• System Languages - Communication Server Dependent
• Handset MMI Languages (GAP Mode and System-Independent Features) - English, French, German, Spanish, Italian, Dutch, Portuguese, Danish, Swedish, Norwegian, Finnish, Turkish
• Handsfree Microphone, Mute and Vibrate Modes
• LED for Status Indication - Three Colours - Green/Orange/Red) for Battery Status, Missed Calls and Messages
• Ringtones - Six User Selectable Polyphonic Tones, Volume Control - Four Settings, Meetings Mode
• Supports all AGAP Features on Alcatel-Lucent Communication Servers with TDM Infrastructure
• Supports all AGAP Features on OmniPCX® Enterprise Communication Server with IP-DECT Infrastructure
• Supports GAP Features on OXO Connect and OmniPCX Office RCE Communication Servers
• Call by Name - Personal and System Directory
• Call Log (GAP Mode) - All, Answered, Dialed, Missed, Up to 50 Call Logs
• Contacts (GAP Mode) - Name, Up to 4 Numbers Per Contact, Up to 50 Contacts, 8 Speed Dial Options
• Audio and LED Message Signaling

Radio Specifications

• DECT
• Frequency Band - DECT Europe - 1880 MHz – 1900 MHz, DECT 6.0 North America - 1920 MHz – 1930 MHz, DECT Latin America - 1910 MHz – 1930 MHz Except Brazil 1910 - 1920 Mhz, DECT Asia - 1900 MHz – 1906 MHz
• Handover - Bearer Connection, External,
• Out of Coverage Signaling
• Antenna Diversity
• Automatic Band Switching for Cruise Ship Applications (Requires IP-DECT)

Wireless Security

• Identity
• Authentication
• Encryption

Registration

• Up to Four Systems
• Manual Selection
• Automatic Selection

Audio Codecs

• G726

Physical Characteristics

• Graphic Display - 1.4 Inches - 65,000 Colours - 128 x 128 Pixels
• Display Backlight - White
• Keypad Backlight - Blue
• Belt Clip - Spring Loaded, Optional Swivel Clip
• Headset Jack - 3.5mm, TRRS Compliant

Dimensions

• Height - 5.19 Inches (133 mm)
• Width - 2.00 Inches (52 mm)
• Depth - 0.90 Inches (23mm)

Mechanical Characteristics

• Charging on Desktop Charger or Micro USB Type B Plug

Battery Pack

• Replaceable 1,100-mAh Lithium-Ion Battery
• Talk Time - Up to 20 Hours
• Standby Time - Up to 200 Hours
• Charging Time - Less Than 3 Hours

Alcatel-Lucent 8232 DECT Handset Box Contents

• Alcatel-Lucent 8232 DECT Handset
• Battery
• Belt Clip
• Regulatory Notice
