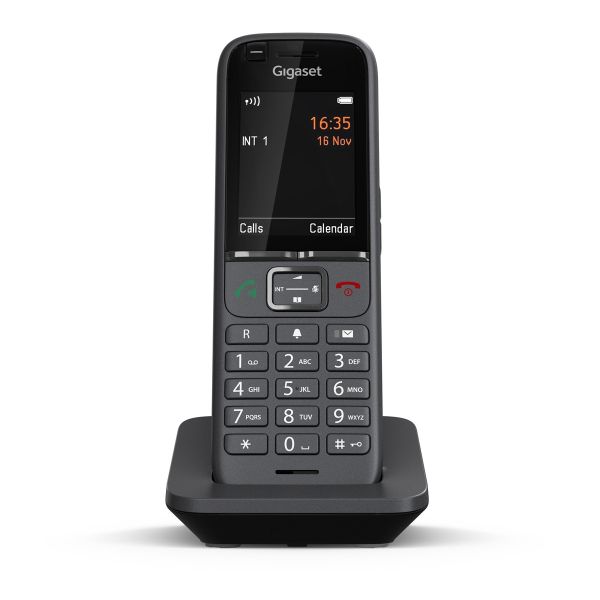

Gigaset SL700H PRO Additional DECT Handset

The Gigaset S700H PRO has been developed to provide optimum support for everyday working life. The large 2.4 Inch TFT Display dominates the disinfectant resistant surface of the Handset whist fitting comfortably in the hand.

The excellent battery life, with up to 320 hours standby, makes the S700H PRO the perfect companion for everyday work. The high quality surface makes the Handset scratch and disinfectant resistant, protects the easy to read keypad.

Business functions such as the hotel option, the separately programmable alarm button, the IP40 protection class and the audio profiles that can be selected via a separate key make it easy to use in professional work environments.

It can thus be individually adapted to the user's needs. The Handset offers Bluetooth® 4.2 and an integrated 3.5mm Jack Connection Port to handle both Cordless and Corded Headsets.

The S700H is optimised for use with all professional Gigaset DECT Systems. In addition, the S700H PRO can be used with other CAT-iq & GAP compatible Base Stations in single and multi cell environments.

The Gigaset SL700H PRO needs a Base Station to function, it is fully compatible with the Gigaset N510 Pro DECT IP Base Station,  Gigaset N720 IP Pro Base Station,  Gigaset N870 IP Pro Multicell DECT System and the Gigaset N670 IP Pro Single Cell Solution.

Tangible Evolution - Inside and Out

The Gigaset S700H PRO Handset from the Gigaset Professional Series impresses with its large 2.4 Inch TFT display and a host of business functions such as SUOTA, Bluetooth® 4.2, audio profiles and brilliant sound quality HDSP™ ready. With the audio profiles, you can adjust the volume to suit your needs at the touch of a button. The professional range of functions is rounded off by the vibration alarm, up to 13 hours of talk time and up to 320 hours of standby time andd conveneint charging of the device via the micro USB port.

Additional Security with Hotel Option and Alarm Button

This option deletes all call lists and other private data from the device at a pre-definable interval so that the next hotel or room guest cannot access them. This option makes it easier for the operator to meet the security requirements of the end users. The Gigaset S700H PRO is optimised for use with all professional Gigaset DECT systems. But it can also be used on CAT-iq & GAP compatible Base Stations from third party vendors.

Resistant to Disinfectants and Scratches

The Gigaset SL700H is of high quality, is attractively priced and has a shapely form. To keep it this way, it has a harder surface coating. This means scratches and disinfectants do not bother it much, and dirt and viruses have no chance. It is certified to protection class IP40 and designed such that no metallic dust can penetrate in.

The S700H PRO can ideally be integrated into a system for Alarm, Messaging and Location (AML) as a user device. It features an Alarm key, with which two different alarms can be triggered with short and prolonged pressing. Text messages can be received, and sorted by different options (such as message priority and status). Very accurate location tracking is also possible.

Freedom and Flexible Functions

You make calls, we deal with the details - so for example, thanks to the innovative 360° rotary belt clip, you have your phone close to hand at all times and still have your hands free. The Gigaset S700H PRO is thoroughly thought out down to the minutest detail: Many other functions simplify day-to-day work. A keypad lock with PIN protection or separately selectable audio profiles. And then there are the configurable function keys with which you can quickly and easily perform direct dialling or trigger an alarm call.

Feature Highlights

• Large Illuminated 2.4 Inch TFT Colour Display
• Intuitive User Interface for Easy Operation
• Headset Operation Via Bluetooth® 4.2 or 3.5mm Jack Port
• Separately Programmable Alarm
• Up to 13 Hours of Talk Time and up to 320 Hours of Standby Time
• Audio Profiles can be Selected Quickly and Easily Using a Separate Key
• Handsfree with High Quality HDSP Ready TM/CAT -IQ 2.0 Acoustic Quality and High Maximum Volume
• Hotel Option - Automatic Deletion of Sensitive Data
• SUOTA - Software Update Via the Air Interface
• IP40 Protection Class and Tightness Against Metal Dust
• Scratch and Disinfectant Resistant
• Local Telephone Book with Search Function and up to 500 vCards and Access to the Company Telephone Book via PBX (XML, LDAP)
• Data Exchange via Bluetooth® or Micro USB
• No Ringing in the Charging Cradle Adjustable for Parallel Call
• Key Lock with Pin Protection | Vibrating Alarm
• Charging - Via Micro USB Connection and Charging Cradle (Charging Cradle Included
• Full Compatibility with Professional Gigaset DECT Single and Multi-Cell Systems

Technical Data:

User Interface

• Illuminated Graphical 2.4 TFT QVGA Colour Display, 240 x 320 Pixels, Up to 8 Lines and 65,000 Colours
• Intuitive, Modern User Interface wih Icons, Display Keys, Five Way Navikey, Function Keys

Phonebook and Dialing

• Address Book with up to 500 vCard Entries
• vCard Entries - First and Last name, Three Numbers, Email, Date Reminder, VIP Melodies and Picture Caller ID
• PBX Directory Access with Search (LDAP and XML) - Dependent on Base Station and or PBX Provider
• Public Online Directory Search with Auto Lookup - Dependent on Base Station and or PBX Provider
• 3 Separate Call Lists (Missed/Dialed/Received) with 20 Entries Each with CLIP/CNIP and Time and Date
• 20 Last Number Redial | Automatic Redial Function
• Short Dial Keys (Soft Keys, 9 Numeric Keys)
• Mute Key, Key Lock and Flash Key

Receiving Calls

• Caller Indication Displayed via CLIP, Picture and CNIP
• Individual Ringer Melodies for VIP Entries and Internal Callers
• Anonymous Call Silencing | Vibrating Alert

Missed Calls

• Signaled via Display and Illuminated Message Waiting Indicator
• List Showing up to 20 Missed Calls with Caller Indication
• Local Missed Call List Behind 3rd Party Single and Multicell Systems with GAP
• Direct Dialing of the Missed Calls List

Audio

• HD Audio Supporting HDSP™/CAT-IQ 2.0
• Handsfree Talking with Excellent Audio Quality
• Side Keys for Easy Volume Adjustment
• 32 Selectable Ringer Melodies with 5 Volume Levels and Crescendo
• Selectable Audio Profiles (Personal, Silent and Loud)
• Headset via Bluetooth or 3.5-mm Jack

Keypad

• Illuminated and Scratch Resistant
• Message Waiting Key with Blinking LED
• Separate R-Button | Mute Button
• Profile Key to Apply Personal, Silent and Loud Settings Directly
• Side Keys for Easy Volume Adjustment
• Keylock (#-Key) with PIN Protection

Hotel Option:

This New Gigaset Option Offers

• Data Such as Call Lists can be Deleted on a Time Controlled Basis
• Blocking Soft Key Programming
• Voicemail Function can be Activated/Deactivated
• Bluetooth Menu is Deactivated
• Reduced Calendar Function - No Entries Possible
• Reset Codes for - Restoring the Default Menu Language, Restoring the Default Screen Saver
• Restricted Use of the Micro USB Port - Data Exchange, Gigaset QuickSync Software Cannot be Used, Disaster Recover System can Still be Used, Charging via USB is Still Possible

Additional Features

• Organiser with Calendar and Reminder Functions
• Email Reader, Info Services
• Screensaver (Picture, Slideshow, Clock, Info Service)
• Battery Charge also in Power Off State
• Warning Tones when out of DECT Range and Vice Versa
• Silent Charger Mode During Parallel Ringing

Gigaset QuickSync Software

• Software Free to Download for Windows and OSX. Connect via Micro USB or Bluetooth®:
• Synchronise your Handset Directory with Microsoft Outlook
• Upload of Caller Pictures / Screensaver Pictures
• Upload Ringtones from PC to Handset | Firmware Update
• Computer Telephony Integration (CTI) - Direct Dialing of Microsofts Outlook Contacts, Display of Incoming Calls on the PC - both on Windows and on OSX

Compatibility:

Gigaset DECT IP Singlecell Systems

• Gigaset N510 Pro DECT IP Base Station
• Gigaset N670 IP Pro Single Cell Solution

Gigaset IP Multicell Systems

• Gigaset N720 IP Pro Base Station

• Gigaset N870 IP Pro Multicell DECT System
• GAP and CAT-iq Compatible DECT Base Stations (Single and Multicell

Interfaces

• DECT, Bluetooth®
• Bluetooth® Headset (Handsfree and Headset Profile)
• Data Exchange and Firmware Update with Gigaset QuickSync
• vCard Exchange with Mobile Phones | Micro USB Charging Functiion
• Dayta Exchange and Firmware Update with Gigaset QuickSync | 3.5mm Headset Port

DECT Range

• Indoor Range - Up to 50 Metres | Outdoor Range - Up to 300 Metres

Eco DECT Features

• Up to 60% Less Energy Consumption through Energy Saving Power Supply Unit
• ECO Mode - Manual Reduction of the Transmission Power of the Base Station and all Registered Handsets
• Variable Reduction of the Transmission Power Depending on the Distance Between Handset and Base Station (Handset Only)

Dimensions

• Handset - 151mm x 49mm x 26mm
• Charger - 40mm x 81mm x 80mm

Package Contents

• 1 x Gigaset SL700H PRO Handset
• 1 x Battery Cover
• 2 x AAA Batteries (NiMH)
• 1 x Belt Clip
• 1 x Charger for Handset
• 1 x Power Supply Unit (PSU)
• 1 x User Manual
