Snom M10 SC Cordless DECT Handset

The Ideal Entry Level DECT Handset for Small Office and Home Office Environments

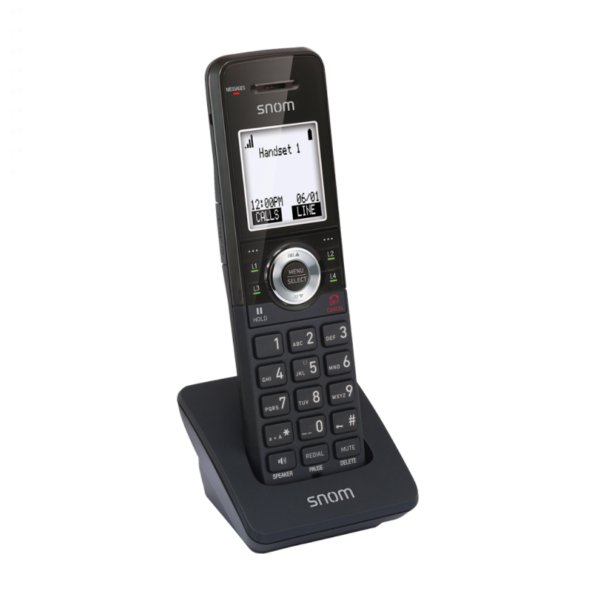

About the Snom M10

The M10 SC is an advanced DECT telephone offering fundamental call features alongside typical business functions such as OTA Updates, Call Holding and Forwarding, all with exceptional audio clarity. Its design incorporates a large, easy-to-read 1.8 Inch display and a convenient backlit keypad.

Its powerful battery delivers up to 9 hours of talk time or a full week of standby, so you'll never have to worry about missing a call!

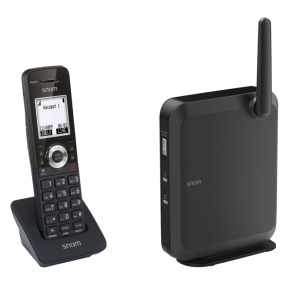

When used with the M100 SC Base Station, the system can handle up to ten registered M10 SC Handsets, allowing up to six simultaneous SIP telephone calls at the same time.

With four freely programmable LED function keys and Snom's unique 'Shared Call Emulation', you can easily share calls with other M10 users, even across different VoIP services.

Backlit Keypad

For enhanced visibility in low light settings, this device incorporates backlit keys.

DECT

The Snom M10 uses the DECT (Digital Enhanced Cordless Telecommunications) radio standard for communication.

GAP Compatible

GAP (Generic Access Profile), a signaling protocol from the European Telecommunications Standards Institute (ETSI), allows basic interoperability between DECT devices from different manufacturers. It supports core functions like handset registration, call answering, connection establishment, holding, and termination. Advanced features specific to a manufacturer's DECT implementation are not included with GAP.

Belt Clip

The Snom M10 includes a Belt Clip.

Headset Connectable

This device offers a 2.5mm Headset Port and possible software support, allowing Headset connection.

Standby / Talk Time

The M10 includes a long standby time of up to 168 hours and a talk time of up to 9 hours.

OTA Updates

Software updates can be received wirelessly (OTA) on this device. As a standard practice, DECT handsets should be placed in their charging cradle for OTA updates.

Features

• DECT, Single Cell Compatible
• Shared Call Emulation (SCE)
• GAP Compatible, OTA Updates, Belt Clip
• TFT Liquid Crysta; Display - 1.8 Inch
• Up to 9 Hours of Talk Time
• Up to 168 Hours of Standby Time
• Backlit Keypad
• A Base Station is Required for Functionality. The M100 SC DECT Base Station is the Recommended Model

Technical Specifications:

Display and Indicators

• Display - TFT Liquid Display (LCD), Monocolour, Graphical Backlit (Blue / White), 1.8 Inch (46mm), Resolution - 90 x 65 Pixels
• 5 LED Indicators - Message Waiting Indication (MWI) - 1 Red LED, Function Key Status Indication - 4 green LED's

Keypad and Function Keys

• 29 Hard Keys in Total - 12 Keys - (Standard ITU Telephone Kepyad), Backlit, 2 Way Navigation Key (DIR / CID), 2 Context Sensitive Function Keys, 4 Programmable Function Keys (with Green LED), 4 Dedicated Audio Keys - Mute, Speakerphone, Volume +/-, 5 Dedicated Function Keys - Canxcel, Menu / Select, Hold, Redial Intercom, Keyboard Lock

Interfaces and Connections

• Power Options - DECT Handset - Battery 2.4V, 550 mAh, NiMH, Removable, Rechargeable, Charging Cradle - Power Adapter -  100 - 240V (AC), 150 mA, 50 - 60 Hz , 6V (DC), 450 mA
• Wired Interfaces - Charging Cradle - Coaxial Power Connector (Socket), Headset - 2.5mm Audio Jack
• Wireless Interfaces - DECT

Audio Devices and Features

• Casing Microphone, Casing Speaker, External Speaker, Full Duplex HD Audio

Directory Support and Call Features

• Up to 2 Simultaneous Calls, Directory Support - LDAP (Server Based Directory), Local Directory with up to 500 Entries, Central Directory on the Base Station wiyh up to 1,000 Shared Entries, XML Phonebook Support
• Outgoing Call Features - Redial, Caller Identification (CLIP), Intercom between DECT Handsets (When Connected to M100 Base Station), Imcoming Call Features - Auto Answer, Call Diversion, Do not Disturb (DND) Mode
• Connected Call Features - Mute Microphone, Hold, Blind Transfer, Attended Call Transfer, External / Internal Call Transfer betwen DECT Handsets (When Connected to M100 Base Station), N-Way Network Conferencing, 3 Way Local Conferencing
• Related Features - Call History of 200 Missed, Received and Dialled Calls, Call Timer (Call Duration), Shared Call Emulation, Phonebook Matching for Incoming and Outgoing Calls

User Interfaces and Setup

• Configuration and Setup via Menu Driven Phone User Interface (PUI)
• Localisation - English, German, Spanish, French, Italian, Dutch, Portuguese, Greek, Estonian, Polish, *Russian, *Turkish, *Czech, *Swedish

*_{With Future Firmware}

DECT Technology Features

• Standard - DECT
• Frequency Band - Europe 1,880 - 1,900 MHz

Package Contents

• Snom M10 SC DECT Handset
• 2.4V Battery (550 mAh, Ni-MH
• Charging Cradle
• Power Adapter
• Belt Clip
