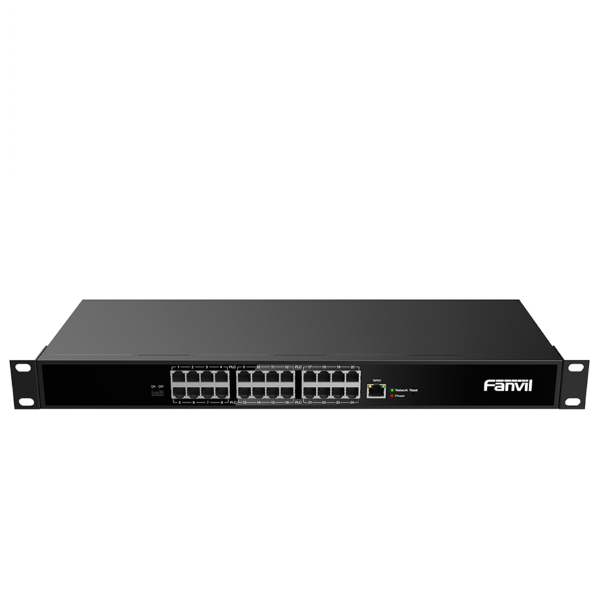

Fanvil PN24 2-Wire PoE Switch

Plug and Play PoE Switch for 2-Wire Devices, Transmission Distance up to 300m, Reuse Exisiting Wires, Built in Power Supply and Built in Mode Switch

About the Fanvil PN24

The Fanvil PN24 is a unique 2-Wire PoE Switch designed to simplify network deployments by letting you reuse existing wiring. It's incredibly easy to install, just plug it in, and it's ready to go. This "plug-and-play" simplicity not only saves significant installation time but also drastically cuts down on wiring costs, making it perfect for quickly upgrading older infrastructures.

The Fanvil PN24 has a built in Power Supply and a built in Mode Switch. It supports network and power supply for 2-Wire Devices with a transmission distance of up to 300 Metres.

Main Features

• For use with 2-Wire Devices Inluding the Fanvil X303-2 Wire IP Phone
• Reuse Existing Wires (PSTN & RVV Cables) to Save on Wiring Costs
• Cascade Via Ethernet Cables for a More Stable Transmission
• Built in Power Suppy, Supports 100-240V Wide Voltage Input
• Built in Mode Switch (Network & Power Supply / Network Supply Only)
• Plug and Play, Supports Network and Power Supply for 2-Wire Devices with a Transmission Distance of up to 300 Metres

Specifications

• Body Material - Galvanised Steel
• Network Interface - Uplink Port (RJ45*1)
• 2-Wire Interface - 24 RJ11 Interface, Network and Power Supply to Fanvil 2-Wire Devices
• Status Indicator Lights - Power Indicator Light (Red), Network Indicator Light (Green)
• Power - 100V-240V Input, Max 80W Output
• Transmission Distance - 300m, CAT 5e, 20AWG, RVV 2*0.5
• Dimensions - 535mm x 80mm x 230mm

Package Contents

• Fanvil PN24 2-Wire PoE Switch
• Quick Installation Guide
