Panasonic KX-TGP550 | SIP Phone System

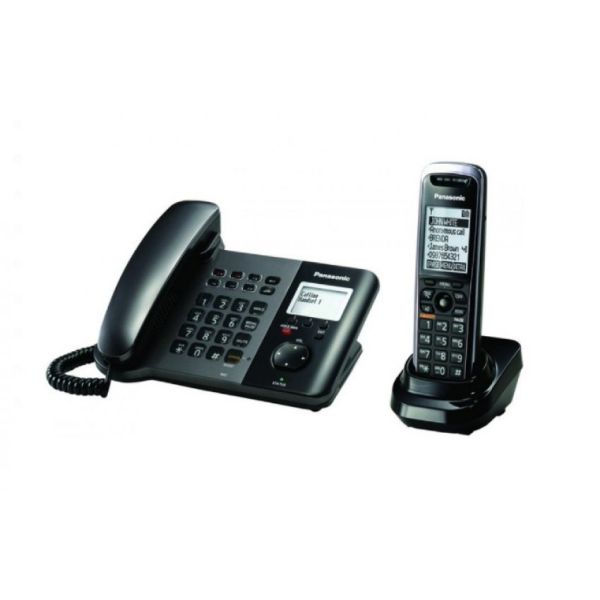

This Panasonic KX-TGP550 SIP Phone System consists of a KX-TGP550 IP Deskphone with an integrated DECT Base Station and a Single KX-TPA50 Cordless Handset. This system can be used with Hosted VoIP and PBX. Conveniently, one ethernet drop will allow you to support up to 6 KX-TPA50 Cordless Handsets with only an electrical outlet nearby. This system also enables you to arrange convenient services provided by the carrier such as Call Forward, VoiceMail etc. Also, the SIP Cordless Phone system can be used as a wireless terminal for your larger SIP deployments.

The KX-TGP550 is a high specification HD VoIP Voice Phone, Business Phone functionality and Web Based Administration, suited to SOHO and branch office solutions.

With a high quality Music-on-Hold and Answering Service, you won’t miss any important calls. New messages are displayed on the Handset, so you’ll know someone has tried to reach you even if you’re away from your desk. For added convenience you can check on messages from wherever you are, or away from the office, with the Answering Service alerting you when you receive a new message via SMS.

VoIP calling with High Definition Voice Performance

Experience even greater calling clarity when you make a VoIP call over the internet. The TGP500 series devices support High De?nition Sound Performance. This superior wideband audio quality lets you hear every detail in the other person’s voice when they speak.

Multi Channel Phone Calls with Multiline Functionality

The TGP500 SIP phones let you easily switch between 1 of 3 incoming lines at the touch of a button – so you can effortlessly choose the calls you need to answer. With extra handsets you can even experience the convenience of conference calling – letting you enjoy up to two, 3 party, conference calls at the same time. Alternately, 3 calls can be managed at once.

Flexibility and Control

Design and control how to manage your calls easily, by configuring the system exactly as you need, with easy to use Web based programming, a system can be changed quickly, and conveniently, adding new users in just minutes.

Supports up to 8 SIP Numbers (e.g. up to 8 Direct Inward Dial ling Lines or Extensions)

The TGP500 series allows you to have up to eight phone numbers. You can set them up in many ways: choose a unique number for each handset, or you can program the handsets into groups for central call handling.

Key Features

• Up to 8 SIP Accounts
• HD Wideband Audio
• Handset Call Button with Status Indicator on Base Unit
• SIP and Broadband Support
• Up to 3 Parallel SIP Calls
• Mute Button
• Handsfree Speakerphone on Base Unit and on Cordless Handset
• Connect up to 6 DECT Handsets
• Handset Call Button with Status Indicator
• 2 Ethernet Ports
• Programmable Ring Groups
• Easy Web Configuration
• 2.5mm Headset Jack
• Compatible with up to 2 Panasonic KX-A405UK Repeaters

KX-TPA50 Handset Features

• 2.1 Inch Large LCD with White Backlight
• Message Waiting Indicator
• Soft Keys | Date and Time Display
• 100 Contacts (Phonebook Memory)
• 10 Days Standby | 5 Hours Talktime
• Half Duplex Speakerphone
• 2.5mm Headset Jack
• SMS Text Message Facility with Four Mailboxes
• Signal Strength Indication
• 10 Last Dialed Number List
• Ringer | Charger Indicator
• Alarm Clock

Dimensions (L x W x H)

• Main Unit Dimensions - 215.5mm x 172mm x 126mm
• Handset Dimensions - 47.7mm x 31.3mm x 158.5mm

Does Not Work on an Analogue Line, SIP Only
