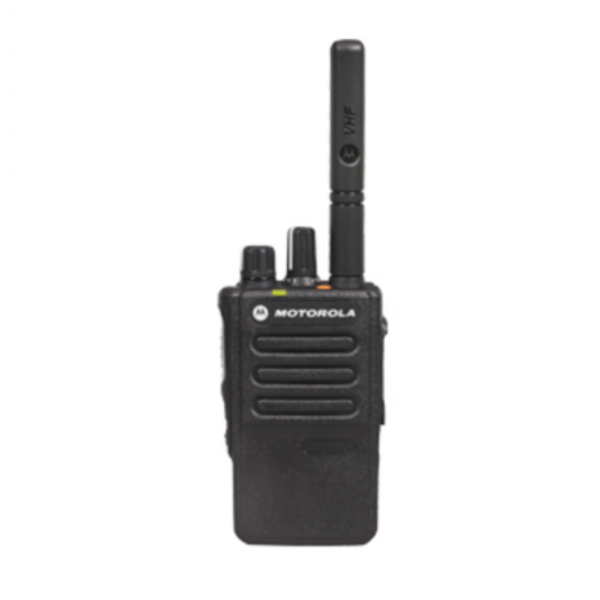

Motorola DP3441e Digital & Analogue Two Way Radio

About the Motorola DP3441e

Stay more agile, safe and connected with Motorola DP3441e MOTOTRBO Two Way Radio. The DP3441e is a compact and high performance solution, engineered to provide mobile professionals with the effective voice and data communications needed for comprehensive organisational connectivity.

For enhanced safety, the Radio features a prominent orange emergency button that instantly calls for help with a single touch. Transmit Interrupt can quickly clear a channel for any urgent messages. Additionally, an integrated accelerometer detects if you've fallen, automatically alerting others for assistance.

Experience superior, uninterrupted communications with this two way radio. With its 64 channels and an improved receiver, you'll get greater coverage and a stronger signal. The Intelligent Audio system, powered by noise cancellation technology, automatically adjusts the volume to defeat background noise, ensuring your messages are always heard clearly. The radio also features integrated GPS, wi-Fi and Bluetooth for added convenience.

Agile

The DP3441e is a tough and compact Radio that's built to last. It meets ETSI DMR standards and is designed with a small form factor and a short, efficient antenna, making it easy to carry without getting in your way.

This Radio is tested to military standards for extreme durability and has an IP68 rating, which means it's almost completely immune to dust and water. You can count on it to perform reliably, even in the harshest environments.

Safe

Protect your team with instant push-to-talk communication. The prominent orange emergency button on the DP3441e lets a user call for help with a single touch, using Transmit Interrupt to clear the channel for a critical message.

For added safety, an integrated accelerometer can detect if a user has fallen and automatically call for assistance, ensuring help is on the way even if the person is unable to respond.

Connected

The DP3441e is designed to provide seamless voice and data communication for critical operations.

Stay connected wirelessly with Bluetooth Audio, and manage your radios efficiently with integrated Wi-Fi for remote software updates. Its location tracking capabilities give you a complete view of your team, whether they're indoors or out.

By supporting both trunking and older analogue technology, this radio ensures your organisation stays connected as it expands.

Frequencies

The Motorola DP3441e is available in both UHF and VHF Frequencies.

The Frequency UHF (403-527 MHz), is generally better for indoor use, built-up areas, and environments with obstructions like buildings and concrete, as UHF waves can penetrate these materials more effectively.

The Frequency VHF (136-174 MHz), is generally better for outdoor use and open areas, as VHF waves travel further over clear lines of sight.

_{*This Radio Requires an Ofcom License to operate - if you do not already have an Existing Ofcom Radio License, you will need to purchase a License before using the Radio*}

Please Click Here to Purchase an Ofcom License

Features

• Available in - UHF - 403-527 MHz or VHF - 136-174 MHz
• Intelligent Audio Adjusts Volume Automatically to Match the Noise Level of your Environment
• Increased Background Noise Suppression
• Two Programmable Buttons & Dedicated Orange Emergency Button
• Customisable Voice Announcement
• Integrated Accelerometer for Optional Man Down Feature
• Dual Mode Analogue / Digital - Easy Migration from Analogue to Digital
• Integrated GPS and Bluetooth Audio & Data
• Indoor Location Tracking, Text Messaging
• Multi-Constellation GNSS for Increased Location Accuracy
• Over the Air Software Updates
• Integrated Wi-Fi
• Enhanced Audio Quality, Improved Expandability
• Better Range, Better Waterproofing - IP68
• IP Site Connect, Capacity Plus and Linked Capacity Plus Support

Specifications:

General

• Frequency - UHF -  403-527 MHz or VHF - 136-174 MHz
• High Power Output - UHF - 4W, VHF - 5W
• Low Power Output - UHF - 0.5W, VHF - 0.5W
• Channel Spacing - 12.5, 20, 25 kHz
• Channel Capacity - 64
• Dimensions - (H x W x D) - 100mm x 55mm x 30mm
• Weight - 254g
• Battery Life - Analogue - 12 Hours, Digital - 16 Hours

Transmitter

• Channel Spacing - 12.5, 20, 25 kHz
• 4FSK Digital Modulation - 12.5 kHz Data - 7K60F1D and 7K60FXD, 12.5 kHz Voice - 7K60F1E and 7K60FXE, Combination of 12.5 kHz Voice and Data - 7K60F1W
• Digital Protocol - ETSI TS 102 361-1, -2, -3
• Conducted / Radiated Emissions (TIA603D): -36 dBm < 1GHz, -30 dBm > 1GHz
• Adjacent Channel Power - 60dB (12.5 kHz), 70dB (20 / 25 kHz
• Frequency Stability - ± 0.5 ppm

Receiver

• Analogue Sensitivity (12dB SINAD) - 0.16 uV
• Digital Sensitivity (5% BER) - 0.14 uV
• Intermodulation (TIA603D) - 70 dB
• Adjacent Channel Selectivity, (TIA603A)-1T - 60 dB (12.5 kHz), 70 dB (20 / 25 kHz)
• Adjacent Channel Selectivity, (TIA603D)-2T - 45 dB (12.5 kHz), 70 dB (20 / 25 kHz)
• Spurious Rejection (TIA603D) - 70 dB

Audio

• Digital Vocoder Type - AMBE+2™
• Audio Response - TIA603D
• Rated Audio - 0.5 W
• Audio Distortion at Rated Audio - 3%
• Hum and Noise: -40 dB (12.5 kHz), -45 dB (20 / 25 kHz)
• Conducted Spurious Emissions (TIA603D): -57 dBm

Bluetooth

• Bluetooth Version - 4.0
• Range - Class 2, 10m
• Supported Profles - Bluetooth Headset Profile (HSP), Serial Port Profile (SPP), Motorola Fast Push-to-Talk
• Simultaneous Connections - 1 X Audio Accessory and 1 x Data Device
• Permanent Discoverable Mode - Optional

GNSS

• Constellation Support - GPS, GLONASS
• Time To First Fix, Cold Start: < 60 s
• Time To First Fix, Hot Start: < 10 s
• Horizontal Accuracy: < 5 m

Wi-Fi

• Standards Supported - IEEE 802.11b, 802.11g, 802.11n
• Security Protocol Supported - WPA, WPA-2, WEP
• Maximum Number of SSIDs - 64

Environmental

• Electrostatic Discharge - IEC 61000-4-2 Level 3
• Dust and Water Intrusion - IEC 60529 - IP68, 2 m for 2 hrs
• Packaging Test - MIL-STD 810D and E

Package Contents

• Motorola DP3441e Two Way Radio
• Battery
• UHF or VHF Antenna (Select at Checkout)
• Belt Clip
• User Documentation
