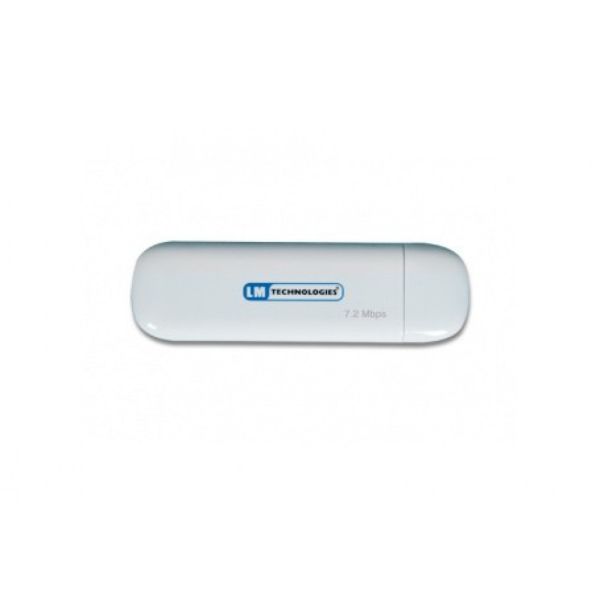

LM Technologies HSUPA 3G USB Modem

The LM003 3G HSUPA USB modem is an unlocked 3G modem which operates with all service providers in the U.K. This means there are no contract ties to worry about - you can use any sim card from any of the operators like 02 and Vodafone and switch between them. Setup is easy as the software is installed directly from flash memory on the modem itself - no CD-Rom required.

Offering a 7.2Mbps download rate and upto 5.6Mbps upload rate anywhere in the world via your 3G SIM Card. A micro-SD slot on the modem accepts a memory card for up to 8 GB (Gigabytes) of memory. A simple slide-in of a micro-SD memory card allows the modem to double as a flash drive to maximize the flexibility of available USB ports.

Main specifications at a glance

• High Speed Download upto 7.2 Mbps and High Speed Upload upto 5.6 Mbps
• Quad-Band GSM / GPRS / EDGE Wireless Mobile Broadband Modem
• Working Frequency: GSM850/900/1800/1900MHz, UMTS 2100MHz
• Plug & Play: (Connection manager in flash memory - discless installation)
• Operating Systems supported: Windows 2000, XP, Vista, Windows 7 and Macintosh

Detailed specifications

• Full USB v2.0 compatible device
• HSUPA 3GPP R6: 7.2Mbps download rate and 5.76Mbps upload rate in max
• HSDPA 3GPP R5: 7.2Mbps download rate and 384Kbps upload rate in max
• UMTS up to 384 Kbps upload and download rate
• Chipset: Qualcomm 6290
• Antenna: On board chip antenna
• GSM: 850 / 900 / 1800 / 1900 MHz
• UMTS: 2100 MHz

Component and package dimensions

• Component Length: 74mm
• Component Width: 46mm
• Component Height: 11mm
• Component Weight: 29.00g
• Package Length: 130mm
• Package Width: 22mm
• Package Height: 183mm
• Package Weight: 79.00g
