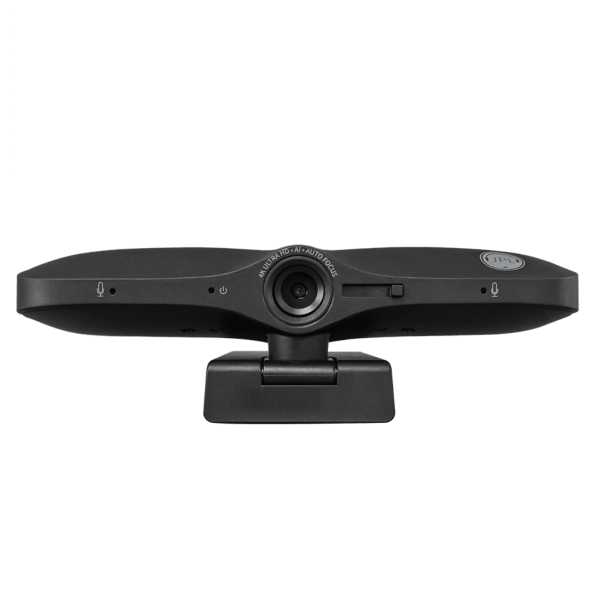

JPL Spitfire - 4K Ultra HD Mini Conference Room Video Sound Bar with Intelligent Zoom

About the JPL Spitfire

The JPL Spitfire Mini Conference Room Video Sound Bar comes with a full HD glass lens, integrated privacy lens shutter and a USB-A to USB-C adapter to allow optional connection to any USB-C device. No additional power needed, it is a plug and play solution and no software or downloads are needed on installation. The Camera uses AI intelligent to automatically detect who is in the room and intelligently adjusts the picture to focus on them. Compatible with all PC's / Mac and Softphones and has been designed to work straight out of the box

Dual Duplex Microphones provide up to 5m voice pickup and a built in LED Indicator shows when the camera is in use, Connect via USB-A or USB-C with the included USB Adapter. The integrated privacy cover allows users to cover the camera when not in use to prevent unintentional capture of images - accidental or through spyware or malware that may try to use your Camera without your knowledge.

TAA Compliant:

What is TAA Compliance

TAA Compliance refers to products that adhere to the U.S. Trade Agreements Act (TAA) of 1979. This legislation mandates that products listed on the GSA Schedule must be either manufactured or significantly altered in the U.S. or a specific TAA-approved country by complying with TAA regulations, these products are eligible for purchase by the US federal government including Departments of Defense and Homeland Security.

Main Features

• 4K UHD 3840 x 2160p
• Full HD 1080p Sony Glass Lens - No Optical Distortion
• Integrated Privacy Lens Cover
• 96° Undistorted Field of View
• Hybrid Work Solution for the Office, Home, School or University
• Dual Duplex Microphone, 5m Voice Pickup
• Built in Camera in Use LED Indicator
• USB 2.0 Type-A Connectivity | USB Type-C connectivity with USB-A to USB-C Adapter Included
• Full 360° Camera Rotation Including 90° Tilt for Over Desk Viewing
• Automatic Low Light Correction
• AEC - Automatic Echo Cancellation
• ANS - Automatic Noise Suppression
• Desk Mount, Monitor Mount or Tripod Option
• Clam Shell Style Carry Case, Mini Tripod and Wall Bracket Included
• Certifications - UKCA, CE, FCC, RoHS, REACH
• Optimised to Work with - Adobe Connect, Google Chrome, Facebook Live, Google Hangouts, Join me, Slackm Skype for Business, You Tube, Zoom and more
• Warranty - 3 Years Limited Warranty - (2 Years Standard Repair or Replacement Warranty Plus a 3rd Year Cover on the Camera Only)
• TAA Compliant - This Product Meets the Requirements of the Trade Agreements Act (TAA) Making it Eligible for Purchase by the US Federal Government Agencies

Spitfire Sound Bar Functions

• Full HD 1080p Glass Lens
• Integrated Privacy Lens Cover
• Dual Stereo Duplexed Microphones for Smooth Natural Conversations
• Touch Sensitive AI Intelligent Zoom On/Off Button
• 2 Speakers at the Rear of the Camera
• Built in Camera In Use LED Indicator
• Universal Bracket (Desk Mount, Monitor Mount and Tripod Fixing Thread for Optional Tripod Attachment)
• USB-A or USB-C to a Computer or Laptop | USB-C to back of Camera

Technical Data:

Camera Parameters

• Total Pixels - 8.3 Million Pixels - 4K Resolution
• Lens Size - M12XP0.5
• Aperture - F/No. =2.5 ±5%
• Image Height - ø 5.4
• Maximum Effective Pixel 3840 x 2160
• Output Image Format - MJPG and YUY2
• Field of View D=96° H=87° V=56° ± 3°
• AI Zoom - 5 x Ai Zoom
• Minimum Illumination - 0.5 Lux at F2.0
• Exposure - Automatic Exposure (AE)
• White Balance - Auto White Balance (AWB), Dynamic Black Level Calibration (ABLC)
• Resolution @ 30fps - 3840 x 2160, 2920 x 1080, 1280 x 720, 640 x 480

Microphone Parameters

• SNR: ≥60dB
• Sensitivity: -38±3dB (2.0V 2.2KΩ)
• Far Field Distance - 5 Metres Voice Pickup
• Horizontal Voice Pickup - Omnidirectional Microphone
• Communication Mode - USB
• AIC - Automatic - Gain Control, Noise Reduction Control and Echo Noise Reduction Control

Speaker Parameters

• Sampling Rate - 48kHz
• Speaker Power - 1W*2pcs
• Directivity- Omnidirectional
• Rated Impedance - 8Ω ± 5%

Other Parameters

• Interface Type - USB 2.0 Type-A or USB Type-C
• Voltage - DC 5V / 1000mA
• OS Support - Win 2000/XP/Vista/Win 7/Win 8/Win 10, Win CE with UVC, Linux with UVC (above Linux - 2.6.26) Mac OS X 10.4.8 or later, Android 4.0 with UVC
• Size (Camera / Gift Box) Camera (160 x 52 x 48mm) / (224 x 177 x 84mm)

Package Contents

• JPL Spitfire Mini Conference Room Sound Bar
• Clam Shell Style Carry Case
• Mini Tripod
• Wall Bracket
