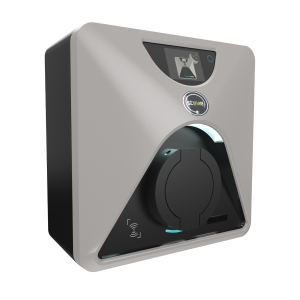

In-Wall STEVIE with Socket & LCD Display - STE1D-IWS - with Install

4The New British Design Space Saving EV Charger, Developed with a Modern, Minimalistic Design that Enables Rapid Installation, In-Wall, LCD Display Version

About the STEVIE-STE1D-IWS

The STEVIE Electric Vehicle Charger has been designed especially for Electric Vehicle drivers and Commercial Parking Spaces, delivering functionality as well as sophistication.

Its high quality and versatile design provides EV drivers with the ability to recharge their vehicle battery simply by connecting the charging cable to the designated socket.

When paired with Monta, STEVIE extends its capabilities to incorporate a comprehensive array of features that include but not limited to - mobile app controlled charging, user access, monitoring energy consumption, choose and set a charging completion time and more.

Mounting Options

Different mounting options are available with the STEVIE EV Chargers, to allow for the users preference - either In Wall (Recessed Mounted) or On Wall (Surface Mounted). This particular model is the (In Wall) Recessed Mounted option, where the EV Charger is recessed into the wall of the building via a hole the that is 235mm x 235mm approximately - the size of a standard house brick wide by three standard house bricks high, giving a sleek look to the property.

Installation is quick and straight forward - the Recessed Mounted option hides 60% (90mm) of the EV Charger within the wall of your property, making it an ideal space saving solution for any new build property.

Available with or without LCD

The STEVIE EV Chargers are available with or without an LCD Display - The LCD Display enables users to check charging status - this model does include the LCD Display.

Mobile App:

Smart Control Using Green Energy

The partnership between JPL EV and Monta ensures owners of the Stevie Charge Point has access to Monta’s Smart Charging’ product feature, automatically optimising all electric vehicle’s charging schedules according to a number of different factors, including when energy is cheapest and/or greenest.

Set your preferences, change your settings and see how much energy is being used, all from the comfort of your home, no need to go outside to start and end the charge via the app.

Mobile App Features

• Mobile App Controlled Charging
• Remote Software Locking - Give Family and Friends Access to use your Charge Point - Even when You’re not There
• Choose and Set a Charging Completion Time
• Automatic Off Peak Hours Charging
• Smart Scheduled Charging Feature
• Compatible with all EVs & PHEVs
• Energy Tariff Driven Charging
• Lock Your Charger Feature
• Immediate Charge Boost Button (RFID)
• Sync with your Solar Panel Set-Up (If Solar Panels Available)
• Understand your Charging Costs
• Live Charge Session Notifications
• Review Statistics and Analytical Data

Personalise with Coloured Fascia's

The STEVIE EV Charger is supplied with a Pearl White Fascia as standard but you can upgrade to optional easily swappable coloured Fascia's at any time - Optional Colours are not Included - Can be Purchased Separately).

Optional Coloured Fascia's Available:

• Pearl White (Included as Standard)
• Almond White
• Brick Red
• Metal Blue
• Sage Green
• Anthracite Grey

Personalise with Coloured Cable Holders

Keep your STEVIE Charger tidy with a Coloured Cable Holder - available in a choice of colours to match the Fascia and complement the property's external appearance. The Cable Holder is not included (Only Included with the Tethered Version) but can be ordered separately.

Optional Coloured Cable Holder Colours Available:

• Pearl White (Included with Tethered Version Only)
• Almond White
• Brick Red
• Metal Blue
• Sage Green
• Anthracite Grey

Approved Installer Network

With the approved installer network, you can be assured that your STEVIE Charging Point will be installed to a high standard. All installers who are registered as a preferred partner have been assessed to ensure that they meet the approved installer network standards.

Standard Nationwide Installation via an Approved Installer is included with this model.

Overview

• Wall Mounted or On Wall Options (Model Dependent)  - Taking up the Space of Just Three Bricks
• Tethered (Corded) or Un-Tethered (Socket) Versions (Model Dependent)
• With or Without LCD Display (Model Dependent)
• Electronic Cable Lock
• Light on Switch for Socket Illumination with a 20 Second Time Out
• Compliant with the Electric Vehicles (Smart Charge Points) Regulations 2021 and December 2022 Edition)
• Socket - Type 2 Connector that is Compatible with Most Electronic Vehicles
• CT Clamp with 5m Cable
• RFID - Immediate Charging Override Secure Key Fob
• PEN-Fault Protection Device - no Earth Rod Required in Most Cases
• UV Shielded Plastics for Protection Against Sunlight
• Dynamic Load Balancing to Automatically Protect the Property’s Main Fuse
• Fast 7.4kW Charging
• Renewable Energy (Solar / Wind) Surplus Compatible)
• Smart Charging - Preconfigured to Avoid Charging During Peak Hours
• Wi-Fi 6 - 2.4GHz Included as Standard - High Speed Connectivity to Router
• 4G GSM SIM Module Available as Optional Connectivity (Coming Soon)
• LAN - Hard Wired Solution as Optional Connectivity (Coming Soon)
• Suitable for Residential Properties and Commercial Properties, (Homes, Offices, Factories, Restaurants, Hotels, Sports Venues etc)
• Multiple Colour Fascia's and Cable Holder Options Available. (Pearl White Supplied as Standard, Other Available Colours - Almond White, Brick Red, Metal Blue, Sage Green and Anthracite Grey)
• 3 Year Warranty - Option to Extend to 5 Years

Highlights:

Patented In Wall Charge Points

• Slim Profile Provides Better Use of Limited Space
• Smart Appearance - Choice of Interchangeable Coloured Facias Available (Pearl White is Supplied as Standard)
• In Wall Design - Allows  for Cables to be Hidden within the Walls - Better Security and Complete Waterproofing

Coloured Fascias

• Offers a Choice of Colour for the Unit Allowing Users to Complement the Properties External Appearance
• UV Shielded Plastics Provide Better Protection Against Sunlight Bleaching

Personalisation Window

• Allows the User to Personalise their STEVIE Unit by Adding their Property Name in the Personalisation Window, so Others know who the EV Charger Belongs to
• Inside Fascia Card Placement Keeps Personalisation Card Fresh, Professional Looking and Provides Protection from the Elements
• Personalisation Window is Illuminated
• Gives Total Choice of Personalisation to Owner

3 Colour LED Status Indicator to Advise of Charging Status (Red, Green, Blue)

• Blue, Green and Red LED Flashing Alternately  - Product Power-on Self-Check
• Glowing Blue LED - Standby
• Flashing Blue LED - Connection Confirmation
• Glowing Green LED - Charging
• Flashing Green LED - Charging is Complete
• Glowing Red LED - Temperature is Too High (Possible Fault) See Trouble Shooting Guide

Technical Specifications

• Recessed Mounted Design (In the Wall)
• 3 Year Warranty - Option to Extend to 5 Years
• RFID Cards - Enable Immediate Override the of the App
• Supplied with Type 2 Connector - Compatible with Most Electronic Vehicles
• IP54 Ingress Protection Rating
• Cable Holder Available as an Optional Extra (Not Included)
• Touch Sensitive Button - Activates the Local Interface and Illuminates the Display Screen, Charging Socket Downlight and Personalisation WIndow
• LED Light - Downward Facing Soft Light Illuminates the Charging Socket when its Dark, Timed to Turn off
• Dimensions - 260mm x 260mm x 52mm

Package Contents

• 1 x STEVIE EV Charger
• Nationwide Installation
• 1 x Metal Cage
• 1 x Pearl White Fascia
• Fixings
