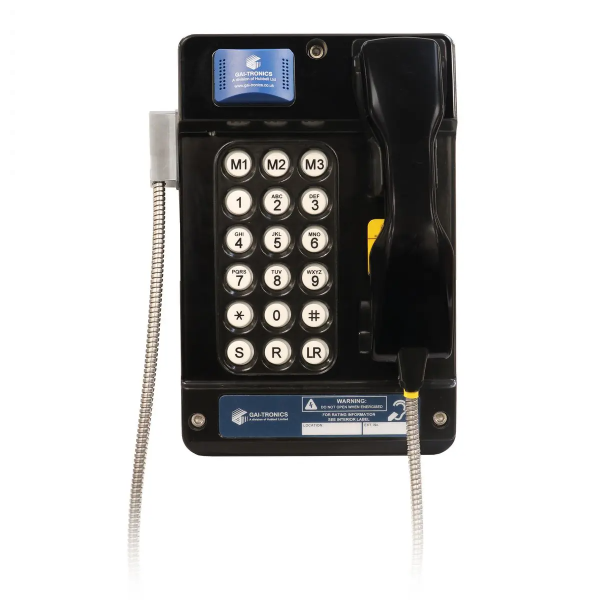

Gai-Tronics Auteldac 6 VoIP ATEX Telephone - Steel Cord

A Rugged VoIP Telephone Designed to Deliver Reliable Communication in Hazardous Industrial Settings - With a Stainless Steel Standard Length Handset Cord

About the Gai-Tronics Auteldac 6

The Auteldac 6 is certified for use in hazardous areas, the A6 body is made from carbon loaded glass filled polyester. The Auteldec 6 has a configurable relay output fitted as standard, which may be used for ring strobe activation or PAGA local speaker mute.

An inductive coupler is fitted as standard to aid the hard of hearing and all of the Auteldac 6 models have a connecton for certified Headsets.

Easy configuration password protected intuitive web pages held within the telephone can be accessed using a browser to view, monitor and change settings within the telephone.

24/7 Availability

Automatic call divert facility so that if a number or URI is not available, up to 20 cascading alternatives can be dialed automatically.

18 Button Full Keypad

The 18 buttons on the Auteldac 6 include 3 user programmable direct dial buttons for fast one touch dialing of pre-stored numbers or programmed for zero button hot dial.

Handset Cord

This model is designed with a robust Handset and the standard length Stainless Steel Cord.

Features

• IECEx/ATEX Zone 1 VoIP Telephone
• II 2 GD Certified for Gas and Dust
• PoE or Local Power
• Session Initiation Protocol (SIP)
• Web Browser Configuration
• 18 Button Full Keypad
• User Adjustable Output Sounder
• User Configurable Relay Output
• Weather Resistant to IP66
• Headset Connectivity as Standard
• CE Compliant
• Stainless Steel Standard Length Handset Cord

General Specifications

• Enclosure - Black Carbon Loaded Glass Filled Polyester
• Handset - PC/ABS Handset
• Armoured Stainless Steel Handset Cord
• Keypad - Weather Sealed Tactile Keypad
• Connection Type - Screw Terminal up to 4mm2 / 11AWG
• Network Minimum Requirements - 10/100BaseT
• Power Supply - External 24V min, 48V max dc or 1EEE Compliant Power over Ethernet (PoE)
• Call Set-Up - Session Initiation Protocol (SIP) (RFC 3261 Compliant)
• Codes & Audio - G.711 A-Law G.711 μ-Law G.729 Codec Preference Sequence, DTMF In Band/Out of Band (RFC2883), User Programmable Comfort Tones (Nation Specific)
• Security - Password Protected
• Quality of Service - Priority of IP Packets According to TOS
• Reliability - MTBF 44.711 Hours
• Redundancy - Supports up to 4 SIP Proxys
• Configuration - Via Configuration File or on-board Password Protected Web Page Server. Static IP Address or DHCP Provisioning
• Monitoring - Automatic Fault Reporting via Syslog Messaging or SNMP
• Audio Path Testing - Allows Remote Testing of Handsets, to Verify that a Phone is Functioning Acoustically. Can be run on Demand or on a Scheduled basis, Reporting its
• Results via Syslog and/or SNMP
• Update Server - Configuration and Firmware Update via TFTP
• Memory Dialing - Numbers or URI's (with Comfort Tones)
• Configurable Call Lists- Max 20 Entries which Divert to next in List if the call Fails
• Time/Date - Simple Network Time Protocol with time Zone and Daylight Saving
• Ringing: User Configurable Output Level via Configuration File or Web Page, up to 90db @ 1 Metre Typical
• Weight - Approx. 3.5 kg (7.7lbs)
