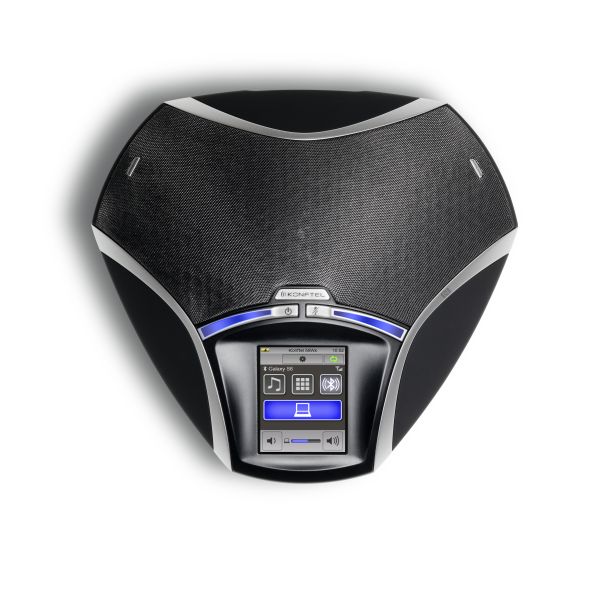

Konftel 55Wx Audio Conferencing Phone

The Konftel 55Wx is an easy-to-use, compact conference phone with impressive, crystal-clear sound thanks to the patented audio technology OmniSound® HD. The Konftel 55Wx has been specially designed to be the hub of your communications and connects computers, mobile phones/tablets and desktop phones.

Whatever the communication tools, your meetings will be conducted with superior sound quality. Moreover, VoIP calls can be bridged with calls via a desktop or mobile phone. Combine and switch connections easily on the LCD colour screen's smart user interface that only displays the current connections.

Make a call and the meeting is under way! The Konftel 55Wx lets you record calls or dictations and you can move the memory card to your computer to save or share the audio files. The Konftel 55Wx is highly portable and looks just as good on the desktop and in the home office as in the conference room.

Sound Specification

• OmniSound® HD
• Microphone: Omnidirectional, 360 degrees
• Coverage range: up to  12 people (30 m2/320 sq ft)
• Frequency range: 100–24000 Hz
• Volume: 90 dB SPL 0.5 m

Interface

• USB: USB 2.0 Mini B, connects to computer
• Mobile phone: Optional cable is required
• Deskphone: For connection to an IP or TDM desk phone using a Konftel Desk phone adapter, Optional accesory View Related Products Below
• Headset output: 3.5 mm phone plug (TRS/TRRS)
• Bluetooth: v 2.1. For connection to a mobile phone or other equipment that supports the Bluetooth Handsfree/Headset profile

Power Supply

• AC Adapter: 100–240 V AC/12 V DC, included
• USB powered: via included USB cable with inserted battery
• Battery: Rechargeable battery up to 9 h talk time, included

Call Recording

• Support recording on SD & SDHC (Up to 32 GB) memory card

Upgrades

• Konftel upgrade utility (for Microsoft Windows) upgrades software via the USB connection. It is also possible to upgrade via an SD card

Dimensions

• Size: Width 222 mm, depth 206 mm, height 68 mm
• Weight: 640 g
• Colour: Liquorice black and silver

Display & Keypad

• Display screen: Colour LCD, 240x320 pixels
• Buttons: Touchscreen plus on/off and microphone/speaker switch-off

Approval

• CE, FCC, UL and CSA

Environment

• Temperature: 5° – 40°C
• Relative humidity: 20% – 80% condensation free

Warranty

• Two-year.

In The Box

• The Konftel 55W
• 6-metre electrical cable
• AC adapter
• Battery
• USB cable
• Quick Reference Guide
