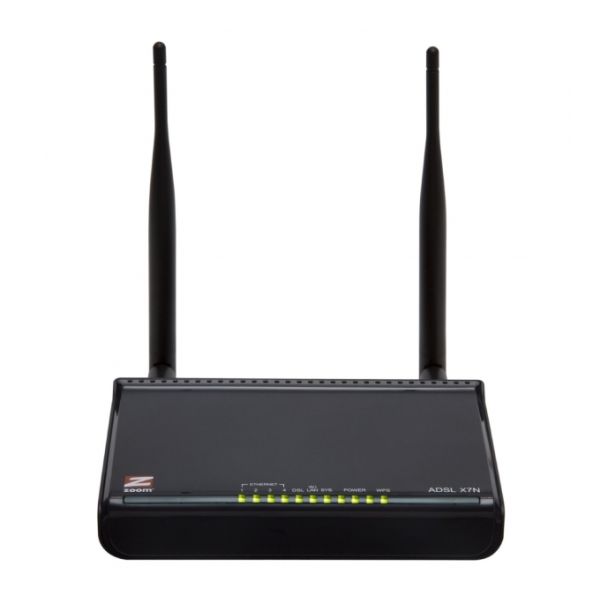

Zoom 5790 ADSL X7n

This versatile product provides a shared ADSL Internet connection for up to 253 computers, game stations, WiFi - enabled phones, and other devices connected wirelessly, via this product’s 4 Ethernet LAN ports, or through a switching hub orother network device. Plug the X7n’s phone cord into a phone line with ADSL service. Then use the X7n’s built-in wireless capability and/or its 4 Ethernet ports to connect computers, Ethernet switches, Home Plug® adapters, or other devices. Setup is easy using any Web browser. The X7n supports all popular ADSL protocols, and delivers download speeds up to 27 Mbps. Best of all, the X7n is produced and supported by Zoom Telephonics, a communication products leader since 1977.

Features

• ADSL2/2+ compliant modem for faster ADSL speeds
• Wireless-N Access Point/Router
• Works with all popular ADSL services
• Support for IPv6 and IPv4 addressing
• Quality of Service (QoS) guarantees upstream bandwidth for high priority devices like gaming systems, VoIP adapters, or video
• Built-in router provides shared Internet access for up to 253 concurrent users
• Built-in 10/100 four port Ethernet switch
• Easy setup with Zoom’s Installation Wizard and auto configuration of ADSL settings
• On-board software meets WiFi Protected Access, WPA, WPA2, and WEP standards
• Virtual Private Networking Endpoint
• Advanced security from hacker attacks with Stateful Packet Inspection, Packet Filtering, Denial of Service Attack and Port Scan detection and prevention
• Universal Plug and Play (UPnP)
• Broadcom chipset CPU/DSP
• One year warranty

Technical Specifications

ADSL Compliance

• Compliant with ADSL standards:
• - Full-rate ANSI T1.413 Issue 2, ITU G.dmt (G.992.1)
• - ITU G.992.2 (G.lite) standards
• Compliant with ADSL 2 standards:
• - G.dmt.bis (ITU G.992.3)
• Compliant with ADSL 2+ standards:
• - G.992.5
• - ADSL2 Annex L (Reach extended ADSL)
• - Annex M
• DMT modulation and demodulation
• Full-rate adaptive modem
• - Maximum downstream rate of 8 Mbps (ADSL), or 27 Mbps (ADSL 2+)
• - Maximum upstream rate of 1024 Kbps (ADSL), or 1200 Kbps (ADSL 2+) or 2600 Kbps (Annex M)
• Interoperable with all major DSLAM manufacturers

ATM Protocols

• WAN mode support: PPP over ATM (RFC 2364), PPP over Ethernet (RFC 2516), classical IP andARP over ATM (RFC 1577)
• LAN mode support: Bridged/Routed IP over ATM (RFC 1483)
• ATM Forum UNI 3.1/4.0 PVC
• Up to 8 virtual circuits
• ATM segmentation and re-assembly
• ATM AAL5 (adaption layer type 5)
• OAM F4/F5

Bridge Mode

• Ethernet to ADSL self learning - Transparent Bridging (IEEE 802.1D)
• Supports up to 128 MAC learning addresses
• RFC2684/1483 bridged PDU encapsulation

Router Mode

• IPv6 and IPv4 addressing
• Static routing
• DNS Server
• DHCP (Dynamic Host Configuration Protocol) Server, and Client
• Quality of Service (QoS) guarantees upstream bandwidth for high priority devices likegaming systems, VoIP adapters, or video
• NAT (Network Address Translation)
• Dynamic DNS
• Second IP address on LAN Interface
• Interface group supports multiple ports to PVC and bridging groups
• RIP V1 and V2
• PPPoE Pass-through
• Virtual Server/DMZ Support
• IGMP and IGMP proxy

Wireless 802.11

• Supports 4 SSIDs
• Compliant with IEEE 802.11n, 802.11g and 802.11b standards
• Wireless Distribution System (WDS)
• Wireless Multimedia Extension (WME)
• 2.4 GHz - 2.484 GHz frequency range
• Up to 300* Mbps wireless data rate, 2x2 MIMO (Multiple Input Multiple Output)
• 64/128 bit Wired Equivalency Protection (WEP)
• Wi-Fi Protected Access (WPA2, WPA) with Pass Phrase
• 802.1X Authentication

Security

• Stateful Packet Inspection (SPI)
• Built-in IPsec VPN
• User authentication for PPP
• VPN passthrough: PPTP, L2TP, IPsec tunnel
• PAP (Password Authentication Protocol)
• Advanced Firewall Ports Filtering
• CHAP (Challenge Authentication Protocol)
• Attack Protection
• Password protected system management
• Denial of Service Protection
• Wireless MAC address filtering

Ethernet Interface

• IEEE 802.3 compliant
• Four 10/100 Mbps auto-sensing RJ-45 ports

Antennas

• Two fixed external omni-directional antennas, 5dBi

Management

• TR-069 compatible
• Password protected access
• Auto configuration
• Universal Plug and Play (UPnP)
• SNMP Version 1 and 2
• Remote and local command line or HTTP interface configuration
• Software upgradeable firmware and device configuration through HTTP interface
• Loads setup from a file for easy input of a configuration by a service provider
• ATM traffic management functions support UBR, CBR, rt-VBR, nrt-VBR in accordance withATM forum TM 4.1

Status Indicators

• 9 front panel indicators: Ethernet ports (1, 2, 3 and 4 status), DSL active, wireless LAN active,R outer available, Power, WPS

HTML Graphic User Interface

• Password protected access
• Firmware upgrades
• WAN and LAN side connection statistics
• Configuration of static routes and routing table
• Selection of bridge or router mode
• PPP user ID and password
• Configuration of virtual circuits

Warranty

• 1 year

Size

• 7” x 5.4” x 1.3” (178mm x 137mm x 33mm) exclusive of 2.5” (64mm) long external antenna

Regulatory Approval

• CE, FCC Part 15B and 15C, FCC Part 68, North American Safety approvals, CS-03; RoHScompliant

Package Contents

• ADSL modem/router withBroadcom CPU/DSP chipset
• Ethernet cable
• Phone cable
• CD ROM
• Quick Start and Flyer
• Energy-saving switching power cube,100 to 240 vac, 50 to 60 Hz
