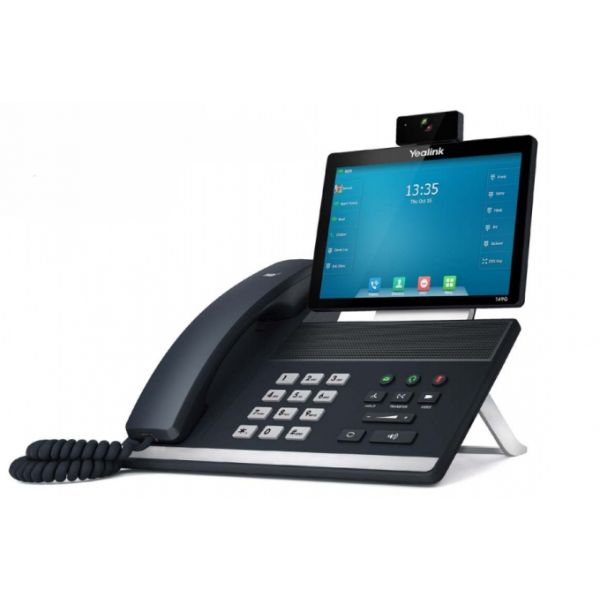

Yealink T49G Touch Screen SIP Videophone

This product is end of life

Designed for executives and teleworkers, this video touch screen telephone strikes the perfect balance between simplicity and sophistication enabling high quality communications for business executives and professionals alike.

With an enlarged 8 inch, 1280 x 800 pixel LCD touch screen and HD video and audio, the T49G provides seamless and efficient collaboration between employees, business partners, key stakeholders and customers. Additional features include built-in Bluetooth 4.0 and Wi-Fi, standard HDMI and USB ports along with five-way audio/video mixed conferencing.

Key Features

• 8” Colour LCD Touch Screen
• 2 mega-pixel HD camera with privacy shutter
• HD Video and Audio
• 16 SIP accounts
• Built-in Wi-Fi and Bluetooth
• 5-way audio/video conferencing

Audio Features

• HD voice: HD handset, HD speaker
• Audio codec: G.722, , G.711 (A/μ)
• G.729AB, G.723, G.726, iLBC, Opus
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Video Features

• 1080p@30fps Full-HD Video call
• Video codec: H.264 High Profile, H.264,H.263
• 2 mega-pixel Camera with privacy shutter
• Horizontal field of view: 63.5°
• Vertical field of view: 37°
• Adjustable camera
• Plug and Play

Phone Features

• 16 VoIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening, emergency call
• Redial, call return, auto answer
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan, XML Browser, action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
• Three-way video conferencing
• Five-way audio/video mixed conferencing
• Standard HDMI output for connection to monitor
• USB ports (2.0 compliant) for media and storage applications
• USB ports (3.0 compliant) for extending camera with USB3.0 cable
• Notification Center and Control Center
• Onscreen keyboard

Directory

• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features

• Busy Lamp Field (BLF)
• Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Remote office, hot desking
• Message Waiting Indicator (MWI)
• Voice mail, call park, call pickup
• Intercom, paging, music on hold
• Call completion, call recording

Display and Indicator

• 8” 1280 x 800 capacitive touch screen
• IPS LCD
• 10 points multi-touch surface
• Screensaver and Wallpaper
• LED for call and message waiting indication
• Intuitive user interface with icons and soft keys
• National language selection
• Caller ID with name, number and photo

Feature keys

• 29 one-touch DSS keys
• 8 feature keys: message,headset,mute,hold,transfer, video,redial,speakerphone
• Volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key

Interface

• Dual-port Gigabit Ethernet
• Built-in Wi-Fi (2.4GHz & 5GHz, 802.11a/b/g/n)
• Built-in Bluetooth 4.0+ EDR
• 1x USB port (2.0 compliant)
• 1x USB port (3.0 compliant, for camera/USB3.0 cable)
• 1x RJ9 (4P4C) handset port
• 1x RJ9 (4P4C) headset port
• 1x HDMI output port
• 1x Security lock port

Other Physical Features

• Yealink power adapter: AC 100~240V input and DC 12V/2A output
• Power consumption : 7.8 W-12 W
• Dimension (W*D*H*T):
• 273mm*226mm*285mm*42 mm
• Operating humidity: 10~95 percent
• Operating temperature: -10~50°C

Management

• Configuration: browser/phone/autoprovision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment
• Auto-provision with PnP
• Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Network and Security

• IPv4/IPv6
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS, DSCP
• SRTP
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X
