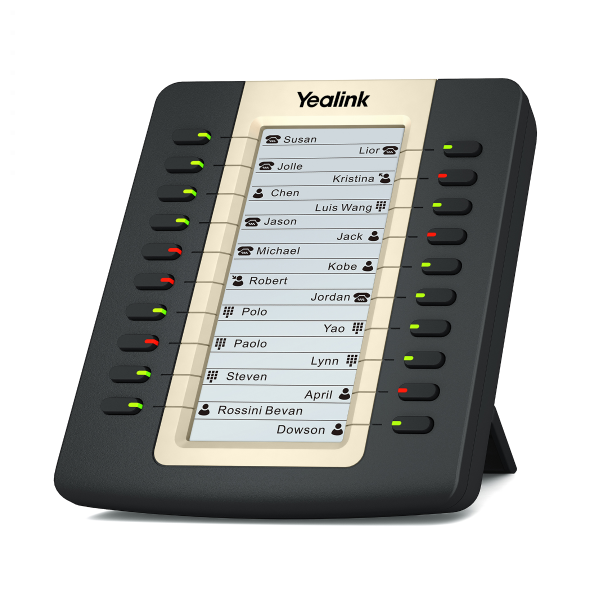

Yealink EXP20 Expansion Module

About the Yealink EXP20

The Yealink EXP20 is designed to match the style and feel of the T27P and T29G advance IP phone handsets. Equipped with a large user-friendly LCD interface and 20 physical dual-colour LED keys, the EXP20 offers simplified user navigation and streamlines essential operational functions such as speed dial, BLF, BLA, call forwarding, transfer and hold.

Up to 6 EXP20 expansion modules can be connected making it the ideal solution for receptionists, administrative assistants or contact centre workers who need to monitor and manage a large volume of calls on a regular basis. More than two units need to be powered by a conventional power supply.

Features

• 20 physical, dual-colour LED programmable keys
• 18 additional keys available
• Programmable keys enable users to partake in advanced call functions such as: BFL list, multi-person conferencing, call forwarding
• Hearing aid compatible

Display

• 160x320 graphic LCD
• LCD Backlight
• Two accessible pages
• A diverse range of actionable, LCD accessible icons

Physical Features

• Stand with two adjustable angles
• Two or less expansion modules can be powered by the host phone
• Supports up to six modules 2xRJ12 (6P6C) ports for data in and out
• Dimensions (W*D*H*T): 122mm*143mm*110mm*45mm
• Applies to Yealink SIP-T27P/SIP-T29G
• Operating temperature: -10~50°C (14~122 °F)
• Operating humidity: 10%-95%
