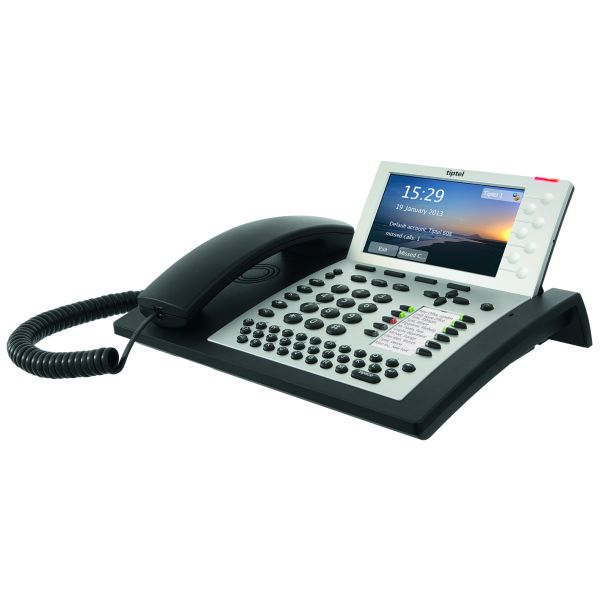

Tiptel 3130 IP Phone

£402.00 £335.00
RRP £522.60
Tiptel
  • Excellent Audio Quality
  • 12 function keys
  • Duplex speakerphone
  • Up to 8 SIP accounts
  • Alphanumeric keyboard
  • Headset Port (U10P-S19)
Stock status
In Stock
Goods Condition
Brand New
PMC Product code
9139


The IP telephone tiptel 3130 satisfies as a premium series for the use in VoIP telephone systems. User-friendliness combined with professional telephony functions makes this device an essential part in the daily VoIP communication.

Simple, intuitive menu navigation

7 sensor keys, 8 control keys, and 4 soft keys with two levels ensure simple and clear menu navigation. The tiptel 3130 offers an alphanumeric keyboard in order to retrieve, create, or modify telephone book entries safe and fast. All function keys are equipped with two-colour status LEDs in red and green to provide for a quick status indication of the respective function.

Fist-class speech quality

A variety of function keys as well as the noble design can be taken for granted with the Tiptel IP telephone family. HD speech transmission ensures that the IP telephone user experiences first-class and clear speech quality with all telephone calls and telephone conferences.

Extras for the highest level of convenience in the communication

The telephones are equipped with a red status LED to indicate incoming messages (message-waiting-indication, MWI), microphone off, DND (do not disturb) and “loudspeaker on”. Next to the display there are software controlled sensor buttons, which can be individually configured with further functions and controls. The inclination angle of the display is adjustable for an optimal reading of the display.

Features

Phone Functions

  • Excellent Audio Quality Using Wide Band Technology
  • Contacts Phonebook (local, 3 Numbers each): 1000
  • Contacts XML-Phonebook (central): 1000
  • Call List (missed Calls): 30
  • Call List (Dialed Numbers): 30
  • Call List (Received Calls): 30
  • Call List (forwarded Calls): 30
  • Redial (manually): 30
  • Automatic Redial (up to 10 times)
  • Callback on Busy
  • Hide ID (always or temporarily)
  • Number of Simultaneous Calls: 5
  • Hold
  • Toggle Calls
  • Query
  • Transfer
  • Call Waiting
  • 3 Party Conference Call
  • Mute
  • Hands Free
  • Open Listening
  • DND
  • Reject Calls
  • Deflect Calls
  • Call Signaling with Individual Ringtone and Name
  • Call Indication with Picture
  • Call Forwarding
  • Transfer of Numbers from Call Lists to Local Phonebook
  • Obtaining Date and Time from NTP-Server possible
  • Automatic Switch between DST and Standard Time
  • Key Lock
  • Key Lock complete, only Dialing Keys or only Phonebook
  • Individual Ringtone, Announcement and Picture for Phonebook Contacts

Keys

  • Function Keys with Two Colored LEDs: 11
  • Selection Keys (Sensor): 7
  • Soft Keys (double assigned): 4
  • Control Keys: 8
  • Volume: 1
  • Phonebook: 1
  • Mute: 1
  • Query: 1
  • Redialing: 1
  • Speaker: 2
  • Dial Keys: 12
  • Alphanumeric Keypad
  • Alphanumeric Keypad (can be toggled as QWERTZ or QWERTY)

Display

  • Color, TFT: 5"/12,7cm
  • Resolution (Dots): 482x272
  • Adjustable Backlight
  • Inclination Angle adjustable (8 Positions)
  • Wallpaper

Audio

  • Codec G.711 (a-law, ?-law) with VAD and CNG
  • HD-Codec G.722
  • GSM Codec
  • More Codecs on Request
  • Hands Free Mode, Duplex with Echo Canceller, AGC
  • Audio Transmission: Wide Band Technology, Echo Canceller up to 64ms
  • Adaptive Jitter Buffer, 300ms
  • Separate Volume control for Handset, Speaker, and Headset

SIP

  • Accounts: 8
  • Standard RFC 3261
  • Display of Error Codes
  • Early Media Support
  • Offer/Answer RFC 3264
  • DTMF/MF Relay RFC 4733
  • DTMF: Inband, SIP-Info, RCF 2833
  • STUN Client
  • Rport RFC 3581
  • REFER RFC 3515
  • Auto provisioning via PnP, DHCP and User Interface
  • Busy lamp field support (BLF), MWI

Network, Security

  • NAT-Support: STUN, Rport, UDP-keep-alive
  • SRTP
  • Transport: UDP, TCP, TLS, DNS-SRV
  • QoS
  • RTCP
  • VLAN
  • TLS, SIPS, SRTP
  • Administration of Certificates
  • Web Interface via http or https
  • Password Protected Provisioning Using Encrypted Files

XML

  • Push XML via SIP NOTIFY and http
  • XML-Browser

User Interface

  • Limited Configuration Using MMI of Phone
  • Web Browser Configuration
  • Password Protected Web Access (Administrator and User)
  • Error Diagnostics Using Web Browser
  • Updates of Firmware Using Web Browser
  • Save and Restore of Settings Using Web Browser
  • Import of Ringtones (WAV Format) Using Web Browser
  • Import of Phonebook (Adressbook, Outlook CSV) Using Web Browser
  • Import of Wallpaper (JPEG) Using Web Browser
  • Display Languages: en,de,fr,nl,it
  • Web Languages: en,de,fr,nl,it
  • Download of Additional Languages Possible: 10

Documentation

  • Quick Installation Guide: en,de,fr,nl,it
  • User's Manual (Online Version): en,de
  • Wiki, Online: en,de
  • Help Function Integrated in Web Browser Configuration

Technical Data

  • Power over Ethernet (PoE)
  • Power by AC Adaptor (optional)
  • Dimensions (W x H x D): 258x110x210
  • Ambient Temperature: 0°C-40°C
  • Min. Power Consumption (Standby): 2,5W
  • Max. Power Consumption (Operation): 10W
  • Weight (g): 950

Accessoiries

  • USB DECT Module for CAT-iq 2.0 or GAP Handset
  • Extension Module KM 27
  • Max. Number of Modules: 3
  • Headset Standard
  • Headset DHSG/EHS
  • SD Card (Option Answering Machine)
  • AC Adaptor
More Information
Manufacturer's Code:3130 IP
Warranty12 months
ManufacturerTiptel
Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
