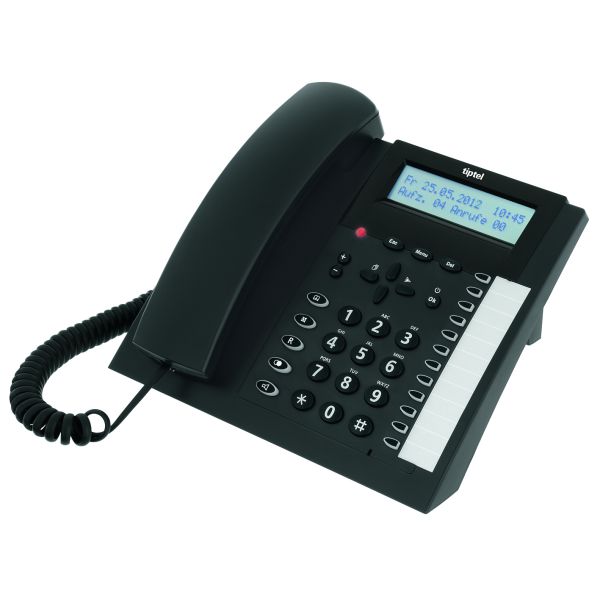

Tiptel 2030 ISDN Business Telephone with Answering Machine

This product is end of life

The Tiptel ISDN business phone with answering machine and PC interface.

The main advantage of the Tiptel 2030 is the digital answerphone and the PC-Interface. In all other points 2030 & 2020 phones are identical. They have both professional equipment and are perfect for small and medium companies. Particularly the connection to the computer makes this telephone a comfortable and powerful solution.

Features

Highlights

• Trendy, steeply inclined model design
• 3-stage height adjustable
• Wall-mountable
• Telephone directory for 100 phone numbers with names and registration of call charges
• Answering machine with a recording capacity of 50 minutes and message transfer function
• 6 multiple subscriber numbers (MSN) with individual outgoing messages, separate activation of answering mode and individual registration of call charges
• Remote control of call forwarding (CFU) for up to 5 multiple subscriber numbers
• 14 programmable multifunctional keys (for telephone numbers, settings)
• Quick-Call-by-Call, comfortable selection of a different provider
• Time control of the answering machine according to weekday and time
• TAPI driver for Windows® XP SP3/Vista/Windows 7 (32 and 64 Bit) supports standard CTI programs such as MS Outlook
• Download of operating software via ISDN - keeps your telephone up to date
• PC connecting cable as well as software included for data back-up and dialling via PC

Telephone functions

• 2-line alphanumeric display with backlight and digital contrast control in 20 levels
• Administration of 6 multiple subscriber numbers (MSN)
• 14 speed dialling keys
• Individual macro-programming of speed dialling keys (phone numbers, functions, providers)
• Comfortable use of different network providers (max. 14 providers) by Quick-Call-by-Call
• Telephone directory for 100 entries (phone number, name, charge counter)
• Appointment manager for 30 appointments
• Extended redialling function with storage of the last 20 dialled phone numbers
• Fully automatic redialing in case of busy tone
• Dialing and pick-up of calls from any TAPI compatible Windows application (CTI)
• 10 ringing tone melodies (each melody with 10 different speeds), individual ringing tone for each MSN possible
• Automatic ringing tone volume control (volume increases after each ring)
• Call list for 20 entries with documentation of date, time and MSN
• Call back list for 6 entries (completion of call to busy subscriber, CCBS)
• Call filter (certain phone numbers will not be signalled)
• VIP function (certain phone numbers will be signalled also during - do-not-disturb function)
• Loudspeaker, hands-free mode
• Registration of call charges in a sum, individually for each MSN, per entry and for the S0-bus
• Different possibilities to block dialling and operation (dialling, entry, settings, numeral block, phone numbers)
• Direct call, do-not-disturb function
• Time control of call forwarding function and answering mode according to time and day
• Back-up in case of power shortage

Answering machine functions

• Flash memory, 50 minutes recording capacity for incoming messages, no data loss in case of power shortage
• 6 different outgoing messages (OGMs), assignment to the MSNs possible
• One additional general pre-recorded OGM for ”plug & answer” (this OGM cannot be modified)
• Two-way conversation recording
• Display of answering mode also by LED
• Voice-day-and-time-stamp after each ICM for documentation of date and time
• Display of remaining capacity of speech memory
• Individual activation of answering mode for each MSN possible
• Message transfer to any telephone number
• Immediate call transfer (even during a conversation) to the answering machine
• Voice guidance for remote control
• Message function, VIP function
• Remote change of call forwarding and message transfer

PC software functions

• Compatible with Windows® XP SP3/Vista/Windows 7 (32 and 64 Bit)
• Programming of features
• Entry of data for telephone directory
• Management and assignment of call data (phone numbers, charges etc.)
• Storage of OGMs, ICMs and ringing tones in the PC
• Conversion of OGMs and ICMs into *wav files and vice versa
• Update of operating software, current firmware release is ready for download on our homepage www.tiptel.com

Technical data

• Power supply: SO-fed, emergency power supply possible

Display

• Resolution: 2 x 20 characters (alphanumeric)
• Display-Contrast: 20 levels

Connecting cables

• Telephone connection cable: Length = 3 m
• Handset cable: Length = max. 1.8, curled cable
• Data cable USB: Length = 3 m

Answering machine

• Outgoing messages: 6 individual, 1 pre-recorded
• Recording capacity: About 50 minutes
• Number of incoming messages: Max. 50
• Data retention during power failure: Unlimited

General data

• Weight: Approx. 900 g
• Standard: EURO-ISDN
• Ambient temperature: 0°C up to 40°C

Regulations

• EN 55022, EN 60950 / A3, EN 50082 part 1
• TBR8,
• CTR3
