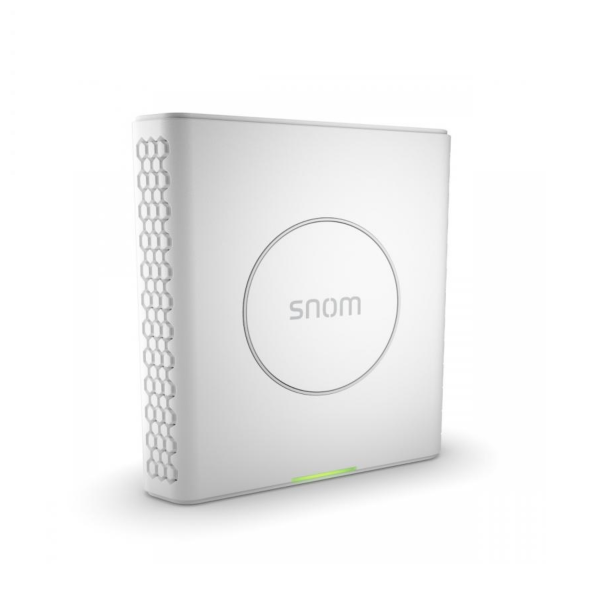

Snom M900 VoIP Cordless DECT Multicell Base Station

About the Snom M900

The new Snom M900 Base Station opens a new chapter in professional and modern multi-cell DECT Technology.

The easy to use Base Station not only comes in a completely new design, it also has new versatile functions. In addition to an integrated DECT manager, the Snom M900 also offers DECT and LAN synchronisation. The integrated DECT manager, manages all Base Stations in one installation, whilst ensuring constant availability and seamless handover. This means that calls are seamlessly transferred between the individual Base Stations, even across floors or buildings.

Security is a top priority in daily business communication, with the integrated TLS encryption, the Snom M900 Base Station also sets absolute standards in terms of encryption.

The new M900 DECT Base Station provides a solid foundation for any installation size, from a small office with only one Base Station, to larger deployments such as Hospitals with several thousand devices, the integrated DECT manager housing state of the art technology, can enable individual installations comprising of up to 4,000 Base Stations and up to 16,000 Handsets. Maintenance of the devices can also be carried out easily and efficiently thanks to the M900 Base Station, each Base Station can wirelessly send software updates to the connected Handsets, this greatly reduces the workload for the IT Department.

Benefits

• Up to 4,000 Base Stations
• Up to 16,000 Handsets
• DECT and LAN Synchronisation
• No DECT Manager Required
• Compatible With Some Snom Existing Handsets - Snom M25, Snom M65, Snom M70, Snom M80, Snom M85, Snom M90
• Repeater Support - Compatible With Snom M5 DECT Repeater
• PoE and Power Adapter Support
• TLS Encryption
• DSP Module Support
• Wall Mountable
• Local, XML and LDAP Phone Book Support

DECT

• Frequency Bands - 1880-1900 MHz (EU), 1920-1930 MHZ (US)
• Output Power - EU < 250 mW, USA < 100 mW
• Protocols - DECT, DECT 6.0
• Seamless Handover and Roaming
• Handover using DECT or LAN Synchronisation (IEEE1588)
• Wideband Audio
• Authentication/Encryption of Base and Handset

Range

• Indoor Range - Up to 50 Metres
• Outdoor Range - Up to 300 Metres (For Indoor Use Only)

Multicell System

• Up to 16,000 Registered Handsets in the Same Network in Multicell Setup
• Up to 4.000 Registered Base Stations in a Multicell Setup
• Up to 100 Repeaters in a Multicell Setup (Snom M5 Repeater)
• Up to 8 Narrowband or 4 Wideband Calls per Base Station in Single Cell Set Up
• Common Phonebook with up to 3000 Entries
• List of Registered Handsets
• Compatible to Snom M700 Running the Same Software Version

Audio Codecs

• G.722 (5 Channels - 4 in Multicell Operation)
• G.711 A-law, μ-law
• G.726 (10 Channels - 8 in Multicell Operation)
• Codec Negotiation, Codec Switching
• A900 Enables - G.729 (10 Channels, 8 Multicell Operations), BV32 (10 Channels, 8 Multicell Operations), Opus (8 Channels)

User Interfaces

• LED Status Indication, Multicolour
• Reset Key
• Web Interface

Hardware Specifications

• Weight - 306g - Approximately
• Dimensions - 144 x 140 x 35 mm - Approximately (L x W x D)
• Antenna Diversity - Two Internal Omni-Directional Antennas for Better Transmission and Reception
• Power - Power over Ethernet (PoE) IEEE802.3af Class 2, If PoE is Not Available the A5 PoE Injector can be Used (Not Included)
• LAN Interface - 10/100 BASE-T IEEE 802.3

Network

• HTTP and HTTPS
• LLDP
• IEEE 802.1Q
• TLS 1.2

Installation

• Positioning - Wall Mounting, Ceiling Mounting
• Remote Software Updates Via HTTP/ HTTPS/TFTP
• Automatic Loading of Settings Via HTTP/ HTTPS/ TFTP
• Completely Configurable Through Web Interface
• Static IP, DHCP Support
• NTP (Network Time Protocol)
• Secure Provisioning and Authentication with Mutual TLS Through Individual Certificate Issued by Snom CA

Package Contents

• Snom M900 Base Station
• Mounting Kit
• Basic Manual
