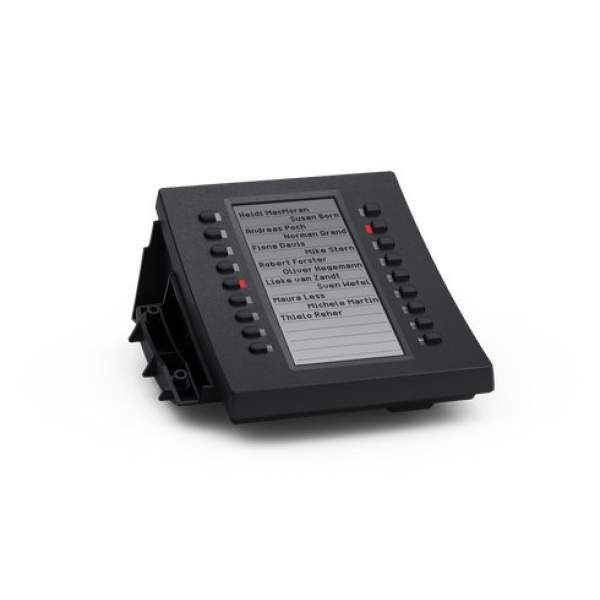

Snom D3 Expansion Module

The Snom D3 Expansion Module increases the available function keys on the Snom D3xx Series of Telephones, allowing users to manage a large number of extensions.

Programmable Keys

The Snom D3 Expansion Module features 18 multicoloured LED keys which can be programmed with all functions available on Snom Phones, like speed dial, busy lamp field presence information and many more.

The call or presence status of your contacts is presented by the Snom D3`s multicoloured LED keys at any given time. The high resolution display is a perfect visual interface which can be easily configured and labelled directly on the phone itself or via the phones web interface.

Ease of Use

The Snom D3 Expansion Module is easy to use, simply connect the USB Cable and its ready to use. The power supplied to the Expansion Module is supplied by the host phone. The D3 Expansion Module can be daisychained to add up to 54 extra fuction keys to your phone.

The USB port on the last D3 in the chain can be used to connect other peripheral USB devices like USB headsets or WiFi sticks to the host phone.

Benefits

• High Resolution Graphical Display with Backlight
• 18 Programmable Multicoloured LED Function Keys
• Can be Daisychained
• Fully Configurable byHost Phone
• Powered by Host Phone - If Two or Three Modules are Used With One Phone, a Seperate Power Supply Will Need to be Connected to the Second Module

Installation

• Plug and Play
• Configurable by Host Phone

Features

• Dimensions - (Approx) - 140 x 170 x 80mm (LxWxH)
• Weight - (Approx) - 300g
• Input Voltage -  5V DC (SELV)
• Power Supply - USB or 5V DC Power Adapter  - (Power Adapter Optional Accessory)
• USB - 2.0 Port - Type A
• USB - 2.0 Port - Type B

In the Box

• Snom D3 Expansion Module
• USB Cable TypeA/Type B
• Installation Guide

Compatible With

• Snom D315
• Snom D345
• Snom D375
