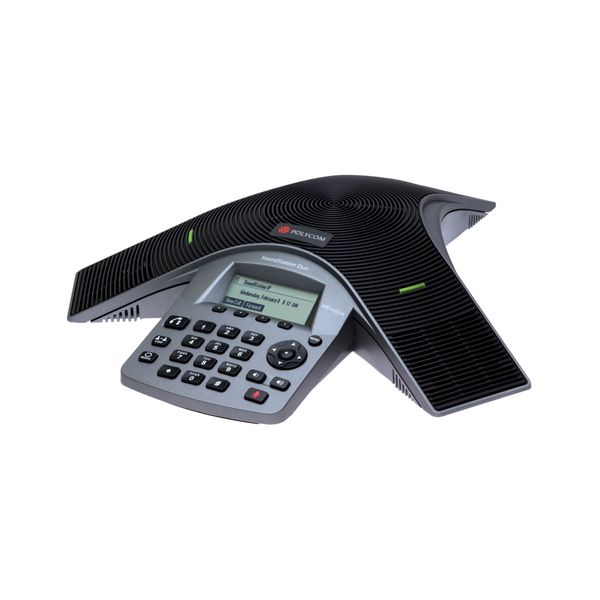

Polycom Soundstation Duo - Dual Mode Analog and IP Conference Phone - A GRADE

£350.00 (Excl. VAT) £420.00 (Incl. VAT) RRP £600.00

    PMC Product Code: 7730

    Manufacturer's Product Code: 2200-19000-102

    • Support for both analog and IP telephony platforms
    • Up to 10-foot (3-meter) microphone pickup range
    • Best-in-class investment protection
    • Optional expansion microphones for even larger room coverage
    • For uo to 12 people > up to 20 people (with extension microphones)

    Stock status: In Stock

    Condition: A-Grade


    Need help with your Order?

    Call: 0161 737 9898


    Whether your conference rooms use analog lines today or you've already migrated to Voice over IP (VoIP) telephony, the SoundStation Duo phone delivers the ultimate deployment flexibility for small to midsize rooms.

    Features and Benefits

    • Up to 10-foot (3-meter) microphone pickup range.
    • Best-in-class investment protection – Operates in analog telephony environments and supports the migration to VoIP
    • Broadest VoIP interoperability – Compatible with a broad array of SIP call platforms to maximize voice quality and feature availability while simplifying management and administration
    • Strong, robust SIP software – Leveraging the most advanced SIP endpoint software in the industry, with advanced call handing, security, and provisioning features
    • Lower cost of deployment and administrative – Web configuration tool makes setup simple and eliminates the need for a boot server
    • Applications Port – Connects to mobile phones for dialing from rooms without an analog phone line, and connects to a PC or tablet to become a high-quality conference phone for Internet calling
    • Resists interference from mobile phones and other wireless devices while delivering clear voice conferencing with no distractions

    Crystal-clear Voice Conferencing with No Compromises

    Backed by Polycom’s legendary audio technology, the SoundStation Duo phone delivers remarkably clear voice quality. From Polycom HD Voice technology and full-duplex audio to the latest in echo cancellation and resistance to mobile phone and wireless device interference, the SoundStation Duo conference phone delivers unrivaled group conferencing experiences without distractions.


    • Size (pixels): 248 x 68 (W x H)
    • White LED backlight with custom intensity control


    • Standard 12-key keypad
    • Context-dependent soft keys: 4
    • On-hook/Off-hook, conference, redial, mute, volume up/down, menu, navigation keys

    Audio Features

    • 3 cardioid microphones: 200-7000 Hz
    • Loudspeaker frequency response: 220-7000 Hz
    • 10ft (3m) microphone pickup
    • Volume: Adjustable to 86 dB at 0.5 meter peak volume
    • Individual volume settings with visual feedback for each audio path
    • Voice activity detection
    • Comfort noise fill
    • DTMF tone generation/DTMF event RTP payload
    • Low-delay audio packet transmission
    • Adaptive jitter buffers
    • Packet loss concealment
    • Acoustic echo cancellation
    • Background noise suppression
    • Supported Codecs:- G.711 (A-law and Mu-law)- G.729a (Annex B)- G.722- iLBC 13.33 and 15.2kbps

    SIP Call Handling Features

    • Call hold
    • Call transfer, divert (forward) and pickup
    • Distinctive incoming call treatment/call waiting
    • Advanced Local three-way conferencing (conference, join, split, hold, resume)
    • One-touch speed dial, redial
    • Remote missed call notification
    • Automatic off-hook call placement
    • SIP URI dialing
    • Do not disturb function
    • Shared call/bridged line appearance
    • Busy Lamp Field (BLF)
    • Multicast Group Paging and Push-to-Talk

    Other Features

    • Automated failover (SIP to PSTN)
    • SIP Server Redundancy
    • Time and date display/call timer
    • User-configurable contact directory and call history (missed, placed, and received)
    • Corporate Directory (LDAP) support
    • User selectable ringer tones
    • Wave file support for call progress tones
    • Unicode UTF-8 character support
    • Multilingual user interface encompassing Simplified Chinese, Traditional Chinese Danish, Dutch, English (Canada /US/UK), French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish
    • Called, connected party information
    • Support for multiple Caller ID standards**:- Bellcore Type 1- ETSI- DTMF
    • 1 year warranty


    • Ethernet 10/100 Base-T
    • Two-wire RJ-11 analog PBX or public switched telephone network interface
    • 2.5mm connection port
    • 2 RJ9 expansion microphone ports

    Network and Provisioning

    • IP Address Configuration: DHCP and Static IP
    • Time synchronization with SNTP server
    • FTP/TFTP/FTPS/HTTP/HTTPS server-based central provisioning for mass deployments. Provisioning server redundancy supported
    • Web portal for individual unit configuration and online software upgrade
    • QoS Support -- IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
    • Network Address Translation (NAT) support - static
    • RTCP support (RFC 1889)
    • Configuration import/export
    • Local digit map (dialing plan)
    • Hardware diagnostics
    • Status and statistics
    • Reset to factory settings


    • Transport Layer Security (TLS)
    • Encrypted configuration files
    • Digest authentication
    • Password login
    • Support for URL syntax with password for boot server
    • HTTPS secure provisioning
    • Support for signed software executables
    • IEEE 802.1x Network Access Control

    In The Box

    • Telephone Console
    • 21-ft (6.4-m) combined analog and Ethernet cable with Power Injection Module
    • Universal Power Supply 24V, 0.5A
    • 7-ft (2.1-m) region-specific power cord
    • 7-ft (2.1-m) Ethernet cable
    • 7-ft (2.1-m) telephony cable (RJ11)
    • Quick Start Guide

    Phone Dimensions & Weight

    • Dimensions - 15.6 x 12.9 x 2.5 in (34.6 x 32.7 x 6.4 cm)(L x W x H)
    • Weight - 1.62 lb (0.74 kg)
    Warranty12 months
    Key Features
    Recommended for up to this many users...34
    Expandable with optional micsYes
    Line TypeAnalogue (BT, TalkTalk, Sky, etc), VoIP/SIP
    If VoIP model - for use withNo
    Bluetooth CompatibleNo
    General Features
    Dynamic Noise ReductionNo
    Date & Time DisplayNo
    List of Dialled Numbers. Time/Date stamped-
    Speaker Volume ControlYes
    Low battery indicator / alert-
    Additional information
    Please Note
    Please noteAll information is provided for reference only. If you are unsure about any of the features listed, please check the manufacturer's official information.
